Summary of Contents for Keychron K4

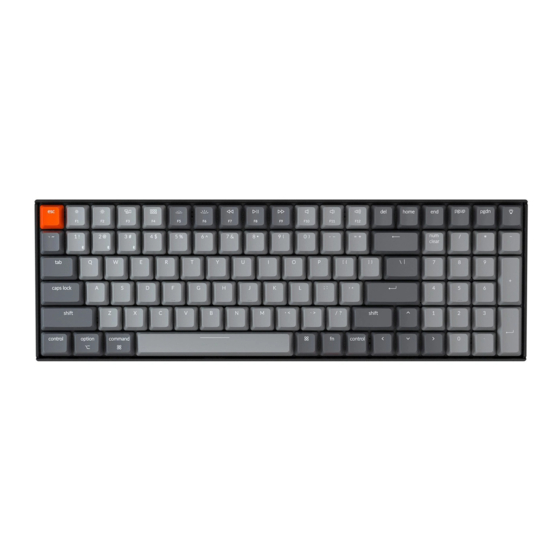

- Page 1 K4 Wireless Mechanical Keyboard Version 3...
- Page 2 IN THE BOX: Keychron K4 Wireless Mechanical Keyboard (Version 3) x 1 Type-A to Type-C Cable x 1 Manual x 1 Quick Start Guide x 1 Extra Keycaps Set x 1 Keycap & Switch Puller x 1 Screwdriver x 1...
- Page 3 QUICK START GUIDE If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps. Mac / Windows...
- Page 4 Connect Bluetooth Press fn + 1 (for 4 seconds) and pair with device named Keychron K4 Version 3. Switch toggle to Bluetooth Connect Cable Switch toggle to Cable...
- Page 5 Switch To The Right System Please make sure the system toggle on the top left corner has been switched to the same system as your computer's operating system. The Backlight Press fn + Q to change the lighting effect Press fn + tab to turn the backlight on/off fn + tab fn + Q...
- Page 6 Adjust The Backlight Brightness Press fn + W to increase the backlight brightness Press fn + S to decrease the backlight brightness fn + W fn + S Adjust The Backlight Speed Press fn + T to increase the light effect speed Press fn + G to decrease the light effect speed fn + T fn + G...
- Page 7 Warranty The keyboard is highly customizable and easy to be rebuilt. If anything goes wrong with any of the keyboard components of keyboard during the warranty period, we will only replace the defective parts of the keyboard, not the whole keyboard. The Layers There are four layers of key settings on the If your system toggle is switched...
- Page 8 3 seconds, indicating that the keyboard has been reset. Flash your keyboard firmware 1. Visit launcher.keychron.com to open the online Launcher web app. 2. Ensure the keyboard is in Cable or Wired mode and plug in the power cable.
- Page 9 Charging port: Type-C Mode: Bluetooth / Wired Bluetooth operating distance: Within 10 meters (open space) Name of Bluetooth device: Keychron K4 Version 3 Operating environment: -10 to 50°C Technical specifications can be subjected to change without notice, we apologize for any...
- Page 10 K4 WIRELESS MECHANICAL KEYBOARD (VERSION 3) OVERVIEW ① ⑥ ⑤④③ ② Windows ① Bluetooth Indicator ② Bluetooth/ OFF/ Cable (Connection Mode Toggle) ③ Win/Android Mac/iOS (OS Toggle) ④ Power Indicator ⑤ Type-C port ⑥ Caps Lock Indicator...
- Page 11 DEFAULT KEY LAYOUT: LAYER 0: This layer will be activated when your keyboard’s system toggle is switched to Mac. Scr- Scr+ MCtl Brght- Brght+ Prvs Play Next Mute Vol- Vol+ LPad Backspace N.Lck Caps Lock Enter Left Shift Right Shift N.Ent Left Ctrl LOpt...
- Page 12 LAYER 1: This layer will be activated when your keyboard’s system toggle is switched to Mac and press the fn/MO(1) key. Toggle BTH1 BTH2 BTH3 Brght+ Hue+ Sat+ Toggle Brght- Hue- Sat- Batt...
- Page 13 LAYER 2: This layer will be activated when your keyboard’s system toggle is switched to Windows. Backspace N.Lck Caps Lock Enter Left Shift Right Shift N.Ent Left Ctrl LWin LAlt Space RAlt MO(3) RCtl LWin = Left Windows LAlt = Left Alt RAlt = Right Alt RCtl = Right Ctrl...
- Page 14 LAYER 3: This layer will be activated when your keyboard’s system toggle is switched to Windows and press the fn/MO(3) key. Scr- Scr+ Task File Brght- Brght+ Prvs Play Next Mute Vol- Vol+ Toggle BTH1 BTH2 BTH3 Brght+ Hue+ Sat+ Toggle Brght- Hue-...
-
Page 15: Key Description
KEY DESCRIPTION Key Description Key Description Key Description Scr- Screen Brightness Decrease RGBMd+ RGB Mode Next Sat+ Saturation Increase Scr+ Screen Brightness Increase RGBMd- RGB Mode Previous Sat- Saturation Decrease Bright- Backlight Decrease Hue+ Hue Increase Batt Battery Life Bright+ Backlight Increase Hue- Hue Decrease... -
Page 16: Led Status Overview
Fully charged in around 5 hours, a green power indicator will appear. *The Keychron keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The Keychron K4 Version 3 can be charged in Bluetooth/Off/Cable mode. - Page 17 3. Hold “fn+1” key for 4 seconds to activate Bluetooth pairing (the Bluetooth indicator fast flashes for 3 minutes to detect pairing). 4. Search for the Bluetooth device “Keychron K4 Version 3” on your device and connect it (the Bluetooth indicator goes off after successful pairing).
-
Page 18: Auto Sleep Mode
RECONNECT: 1. Switch the keyboard to the Bluetooth option to activate the keyboard. 2. The Bluetooth indicator flashes for 4 seconds and automatically pairs with the last paired device. 3. If the Bluetooth indicator is off, press any button to enter the connection again. * The keyboard must have been paired with the device to perform this function. -
Page 19: Input Method Switch
2 — WINDOWS/ANDROID Switch the toggle to Windows/Android when the keyboard is connected to a Windows or Android operating system. *When using the Windows/Android mode, keys are used for “Windows” and “Alt” functions. 3 — INPUT METHOD SWITCH... - Page 20 My keyboard isn’t working. For the computer/smartphone: Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it. Then restart your device. For the keyboard: Turn the keyboard off and back on. Then reconnect it to your device. Bluetooth connection is interrupted even within 10 meters. Check if the keyboard is resting on a metal surface that can interfere with the Bluetooth signal.
-
Page 21: Safety Precaution
Certain multimedia keys or function keys do not work. Functions of certain multimedia keys may be disabled due to compatibility, versions, brands, and drivers of devices. *Multimedia keys: Function keys: Safety Precaution: Keep the product, accessories and packaging parts out of the reach of children to prevent any accidents and choking hazards.
