OBSERVATION SYSTEM
AOC-100
-
-
-
-
-
-
-

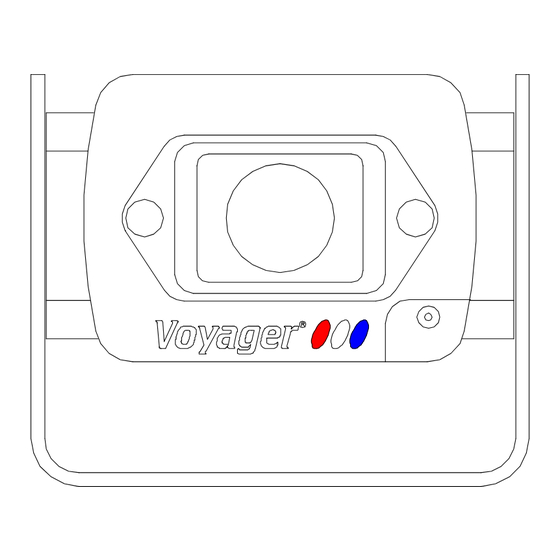

AOC-100 Features:
High Resolution, 1/3" CCD Color Camera
Compact/Lightweight Aluminum Die Cast Body
Waterproof Housing
Waterproof Microphone
Waterproof Normal/Mirror Image Switch
Adjustable Viewing Angle
Optional Wind Deflector
Audiovox Specialized Applications, LLC
23319 Cooper Drive
Elkhart, IN 46514
800-688-3135
www.asaelectronics.com
Advertisement
Related Manuals for Voyager AOC-100
Summary of Contents for Voyager AOC-100
- Page 1 AOC-100 AOC-100 Features: High Resolution, 1/3” CCD Color Camera Compact/Lightweight Aluminum Die Cast Body Waterproof Housing Waterproof Microphone Waterproof Normal/Mirror Image Switch Adjustable Viewing Angle Optional Wind Deflector Audiovox Specialized Applications, LLC 23319 Cooper Drive Elkhart, IN 46514 800-688-3135 www.asaelectronics.com...
- Page 2 Contents: Camera Wind Deflector Bracket Hardware Kit Installation and Pin Out: Wind Deflector Installation Optional EMI Ferrite Core Waterproof Camera Connector Standard Cable Connector Grommet To Seal Through Vehicle Exterior Arrow Locking Location Video From Camera Audio Ground/Shield Cable Connector End View Microphone Mirror /...
- Page 3 Installation with Wind Deflector: Screw For Use w/Wind Deflector #8-32 x 3/8" 4mm x .7mm x 25.4mm Phillips Hex Head Screws with Washers 4mm x .7mm Hex Nuts...
- Page 4 Installation without Wind Deflector: Screw For Use Without Wind Deflector #8-32 x 5/16" 4mm x .7mm x 25.4mm with Washers 4mm x .7mm Hex Nuts...
-
Page 5: Hardware Kit
Hardware Kit: Quantity 4mm x .7mm x 25.4mm Phillips Hex Head Screw w/Washers 4mm x .7mm Hex Nuts Screw for use without Wind Deflector #8-32 x 5/16" Phillips Hex Screw w/Attached Lockwashers Screw for use with Wind Deflector #8-32 x 3/8" Phillips Hex Screw w/Attached Lockwashers... -
Page 6: Specifications
Specifications: Signal System NTSC Image Sensor 1/3” Color CCD w/electronic Auto-iris 270K picture elements Viewing Angle 110 (H), 80 (V) Outer Dimensions 2.44” x 1.5” x 1.96” (W x H x D) 6.2cm x 3.81cm x 4.98cm (W x H x D) Weight 0.8 lbs. -
Page 7: Accessory List
HP375 Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products, please contact Audiovox Specialized Applications at www.asaelectronics.com or 800-688-3135. P/N 8002850...
