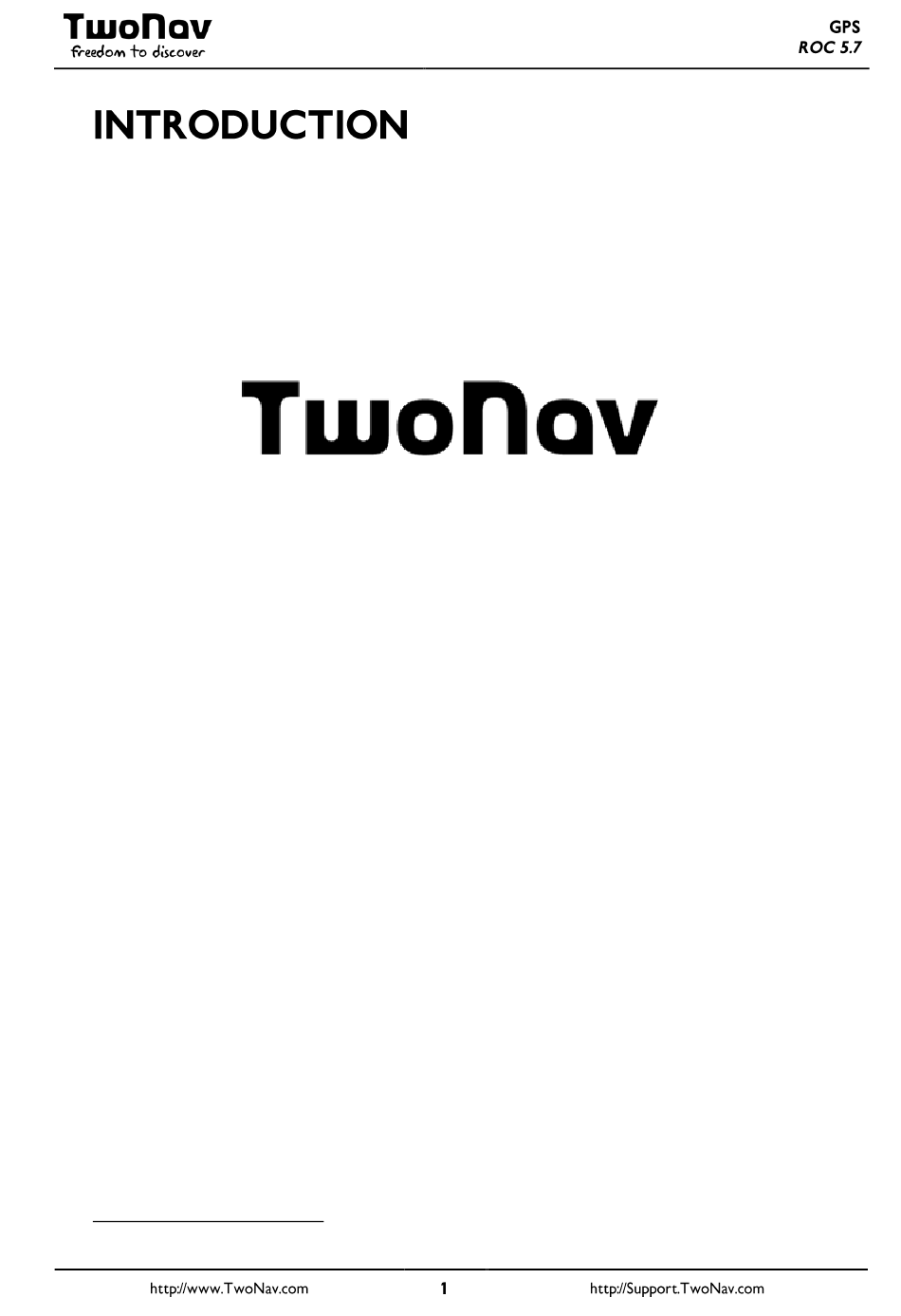

twonav ROC 5.7 Manual

Hide thumbs

Advertisement

Table of Contents

TwoNav dedicates all its experience and effort to enable you get the best out of your outdoor
activities such as hiking, cycling, trail running, geocaching...
TwoNav offers directional assistance, both on-road and off-road activities, this assistance is
invaluable in order to increase the safety of your outings. Despite this under certain
circumstances you may be distracted by the misuse of the device, and in extreme cases it
may become a hazard either for you or the environment. Please, use TwoNav application
with responsibility.
Even though TwoNav offers you the possibility to use this application in any type of vehicle it
is very important to take into consideration a series of recommendations and regulations to
properly use the application:
•
Fit TwoNav application correctly: TwoNav should be fitted in a place where it will
not obstruct your visibility. Moreover, it must be secured to ensure it cannot fall off
easily and hinder driving. Plan all details regarding your outing before starting the
navigation. Any change must be done with the vehicle stopped in a safe place (not on
the road or kerbs).
•
Guided by sound indications: The TwoNav application will warn you with sound
indications of upcoming manoeuvres and when to carry them out. A glance at the
visual information displayed by TwoNav may be useful in order to know which path
you should take, but you should only resort to this visual information if you can do it
safely (vehicle stopped).
•
Front-seat passenger can easily help you: The driver is always facing the road, so if
you have a front-seat passenger, TwoNav strongly recommends this person to be in
charge of handling the TwoNav application.
•
Maps always contain errors: Remember that it is impossible to have 100% updated
information for all your maps. So new streets, changes in street directions or road
restrictions may invalidate partially the calculation of your itinerary. It is very
important to be aware of these changes and to be prepared for any new situation
that may arise.
•
Traffic regulations always take preference: You should always fully comply with
the traffic regulations of each country.
All new developments are based on suggestions and feedback from users like you. If you
would like to share your ideas and proposals with TwoNav, feel free to do so at
http://TwoNav.uservoice.com
