VU34WCIP Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VU34WCIP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Asus VU34WCIP Series

Summary of Contents for Asus VU34WCIP Series

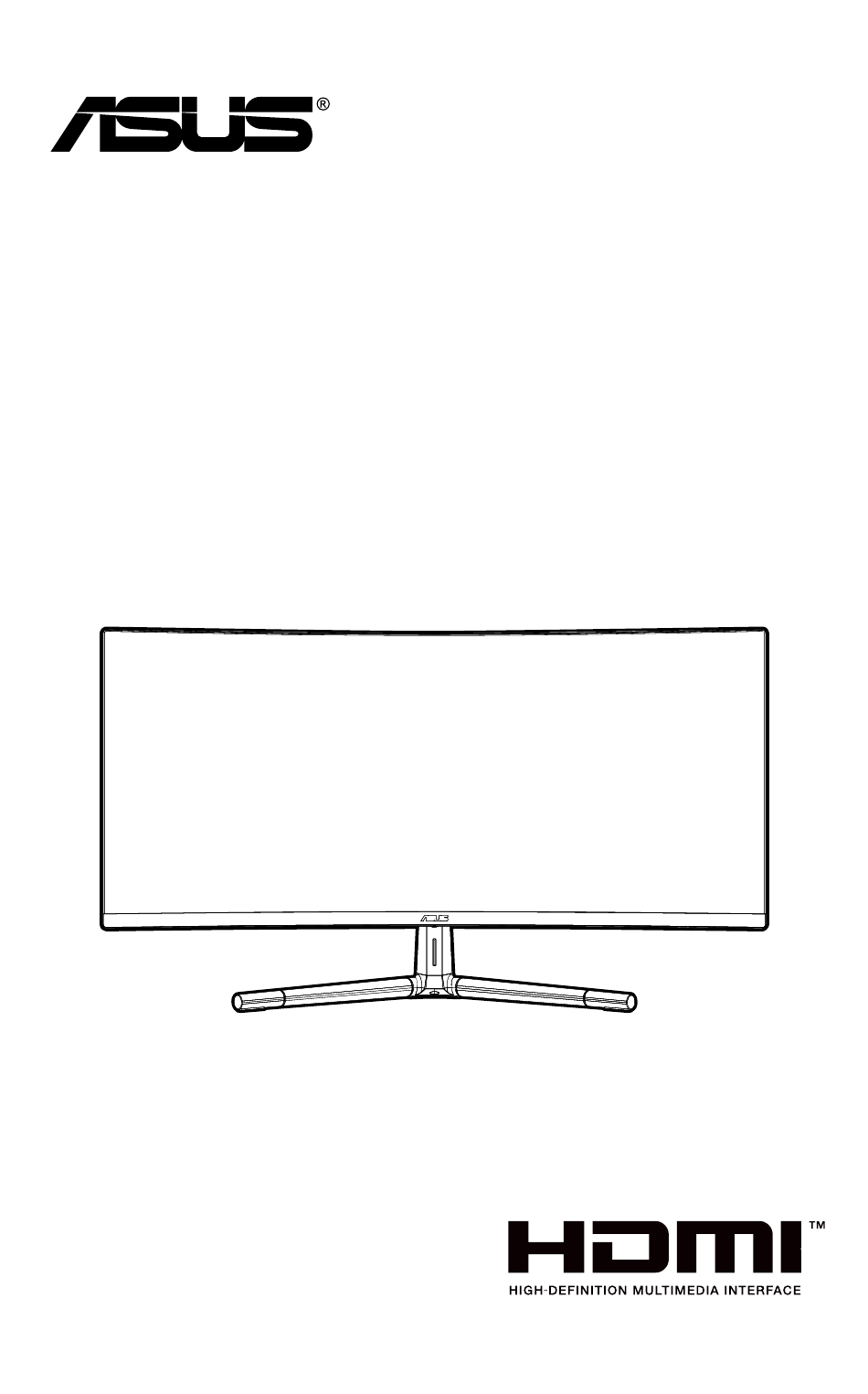

  • Page 1 VU34WCIP Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Contents ...................iii Notices .....................iv TCO certified..................vi Safety information ................vii Care & Cleaning ................viii Takeback Services ................ix Product information for EU energy label ........ix Chapter 1: Product introduction Welcome! ................1-1 Package contents ..............1-1 Monitor introduction ............1-2 1.3.1 Front view .................1-2 1.3.2 Back view .................1-4 Chapter 2:...

  • Page 4: Notices

    Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices. ® All ASUS products with the ENERGY STAR logo comply with the ® ENERGY STAR standard, and the power management feature is enabled by default.
  • Page 5 ® As an ENERGY STAR partner, we have determined that this product ® meets the ENERGY STAR guidelines for energy efficiency. ® This product qualifies for ENERGY STAR in the default setting. Changing the default setting or enabling other features could exceed the limits ®...

  • Page 6: Tco Certified

    TCO certified A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.

  • Page 7: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 8: Care & Cleaning

    AEEE yönetmeliğine uygundur Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

  • Page 9: Takeback Services

    About Flicker https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

  • Page 11: Chapter 1: Product Introduction

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience...

  • Page 12: Monitor Introduction

    Monitor introduction 1.3.1 Front view Power (5-way) joystick / Power indicator • Turns the monitor on/off. • Press the joystick once and then push it to the right to shut down the monitor. • The color definition of the power indicator is shown in the table below. Status Description White...
  • Page 13 Press the joystick to display the OSD menu when the OSD is off and then press this button again to enter the OSD main menu. • Enacts the selected OSD menu items. • Increases/Decreases values or moves your selection up/down/left/right. ASUS VU34WCIP Series LCD Monitor...

  • Page 14: Back View

    1.3.2 Back view Bottom Nano-ion air purifier vent AC-IN port: This port connects to the power cord. HDMI port: This port is for connections with an HDMI compatible device. DisplayPort (DP) port: This port is for connections with a DisplayPort compatible device.
  • Page 15 96W from the “USB-C Charging” setting in the OSD menu. The default USB-C power delivery (PD) setting is 65W, you can switch to PD 96W via the “USB-C charging” setting (the USB hub and audio features will be disabled). ASUS VU34WCIP Series LCD Monitor...
  • Page 16 Chapter 1: Product introduction...

  • Page 17: Chapter 2: Setup

    Lock the screw, making sure the screw does not extend past the screw hole. Assemble the VESA cover. We recommend that you cover the table surface with a soft cloth to prevent damage to the monitor. Base screw size: M5 x 10 mm ASUS VU34WCIP Series LCD Monitor...

  • Page 18: Detaching The Arm/Base (For Vesa Wall Mount)

    Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mounts. To detach the arm/base: Have the front of the monitor face down on a table, remove the VESA cover. Use a screwdriver to remove the single black M5x10 screw from the base. Remove the base.

  • Page 19: Adjusting The Monitor

    Hold the stand to prevent the monitor from falling when you change its angle. • The recommended adjusting angle is +23˚ to -5˚. -5° 23° It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS VU34WCIP Series LCD Monitor...

  • Page 20: Connecting The Cables

    Connecting the cables Connect the cables as the following instructions: Rear Bottom To connect the power cord: Connect one end of the power cord • securely to the monitor’s AC input port, the other end to a power outlet. To connect the HDMI/DisplayPort/USB-C cable: •...

  • Page 21: Turning On The Monitor

    ASUS customer service. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ASUS VU34WCIP Series LCD Monitor...
  • Page 22 Chapter 22: Setup...

  • Page 23: Osd (On-Screen Display) Menu

    Move the 5-way joystick up and down to change the settings of the selected function. To exit and save the OSD menu, move the 5-way joystick left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS VU34WCIP Series LCD Monitor...

  • Page 24: Osd Function Introduction

    3.1.2 OSD function introduction Splendid This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. VU34WCIP Splendid Input 3440 x 1440 │100 Hz Standard Mode DisplayPort Standard Mode...
  • Page 25 30-minute working time and there will be a pop up reminder appeared on the upper left corner of the monitor for 5 seconds when time is up. Press any key to make this reminder OSD disappear. ASUS VU34WCIP Series LCD Monitor...
  • Page 26 When this function is enabled, the following functions are not available: Splendid Demo Mode, GamePlus, QuickFit. Color Augmentation: The adjusting range of color enhancement is • from 0 to 100. This function is not available when sRGB Mode is selected in the Splendid menu. Color Set the desired color settings from this menu.
  • Page 27 • Aspect Control: Adjusts the aspect ratio to Full, Dot to Dot or • 1:1. ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Motion Sync: Offers a more clear mode while displaying motion • pictures. Please note this function only works when the refresh rate is 75Hz~100Hz.
  • Page 28 Bottom, or Left-Bottom. Source: Allows you to select which video input source to display in • each picture window. PIP Size: Allows you to set the size of the smaller picture of the • Picture-in-Picture from Small, Middle, or Large. Input In this function, you can select your desired input source.
  • Page 29 HDMI CEC: Enables/Disables Consumer Electronics Control (CEC) • which when enabled allows you to control the monitor via the remote control of the device connected to the HDMI port. Language: There are 23 languages for your selection, including • ASUS VU34WCIP Series LCD Monitor...
  • Page 30 English, French, German, Spanish, Italian, Dutch, Russian, Polish, Czech, Croatian, Hungarian, Romanian, Portuguese, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian, Ukrainian, Vietnamese. Key Lock: To disable all function keys. Push the 5-way button down for • over 5 seconds to cancel the key lock function. Information: Shows the monitor information.
  • Page 31 Shortcut 1/Shortcut 2: Selects a function for Shortcut 1 and 2 • buttons. ASUS VU34WCIP Series LCD Monitor...

  • Page 32: Specifications Summary

    Specifications summary Panel Type TFT LCD Panel size Panel Size: 34” (21:9) Max. Resolution 3440 x 1440 Pixel pitch 0.23175 x 0.23175 mm Brightness (Typ.) 300 nits (Typ.) Contrast Ratio (Typ.) 3500:1 Viewing angle (H/V) 178˚/178˚ CR>10 Display colors 16.7 M Response time 4 ms (GTG) Color temperature...
  • Page 33 *Specifications are subject to change without notice. **Power consumption of On Mode as defined in Energy Star 8.0 version. *** Standard Mode with Local Dimming disabled is used for TCO/Low Blue light/Flicker free/ISO 9241-307 Certified compliance. ASUS VU34WCIP Series LCD Monitor 3-11...

  • Page 34: Outline Dimensions

    Outline dimensions *Unit: mm(inch) 3-12 Chapter 3: OSD (On-Screen Display) Menu...

  • Page 35: Troubleshooting (Faq)

    • Ensure that the HDMI/DP/USB-C cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI/DP/USB-C device. • Ensure that the computer sound card driver is properly installed and activated. ASUS VU34WCIP Series LCD Monitor 3-13...

  • Page 36: Supported Operating Modes

    Supported operating modes Input Timing Horizontal Vertical Dot Clock Resolution Frequency (KHz) Frequency (Hz) Frequency (MHz) 640x480 31.47(N) 59.94(N) 25.18 640x480 37.5(N) 75.00(N) 31.5 800x600 37.88(P) 60.32(P) 800x600 46.86(P) 75.00(P) 49.5 1024x768 48.36(N) 60.00(N) 1024x768 60.02(N) 75.00(N) 78.75 1280x960 60.00(P) 60.00(N) 1280x1024 63.98(P)
