Summary of Contents for THE SHOWER LAB VIEW 14.2H

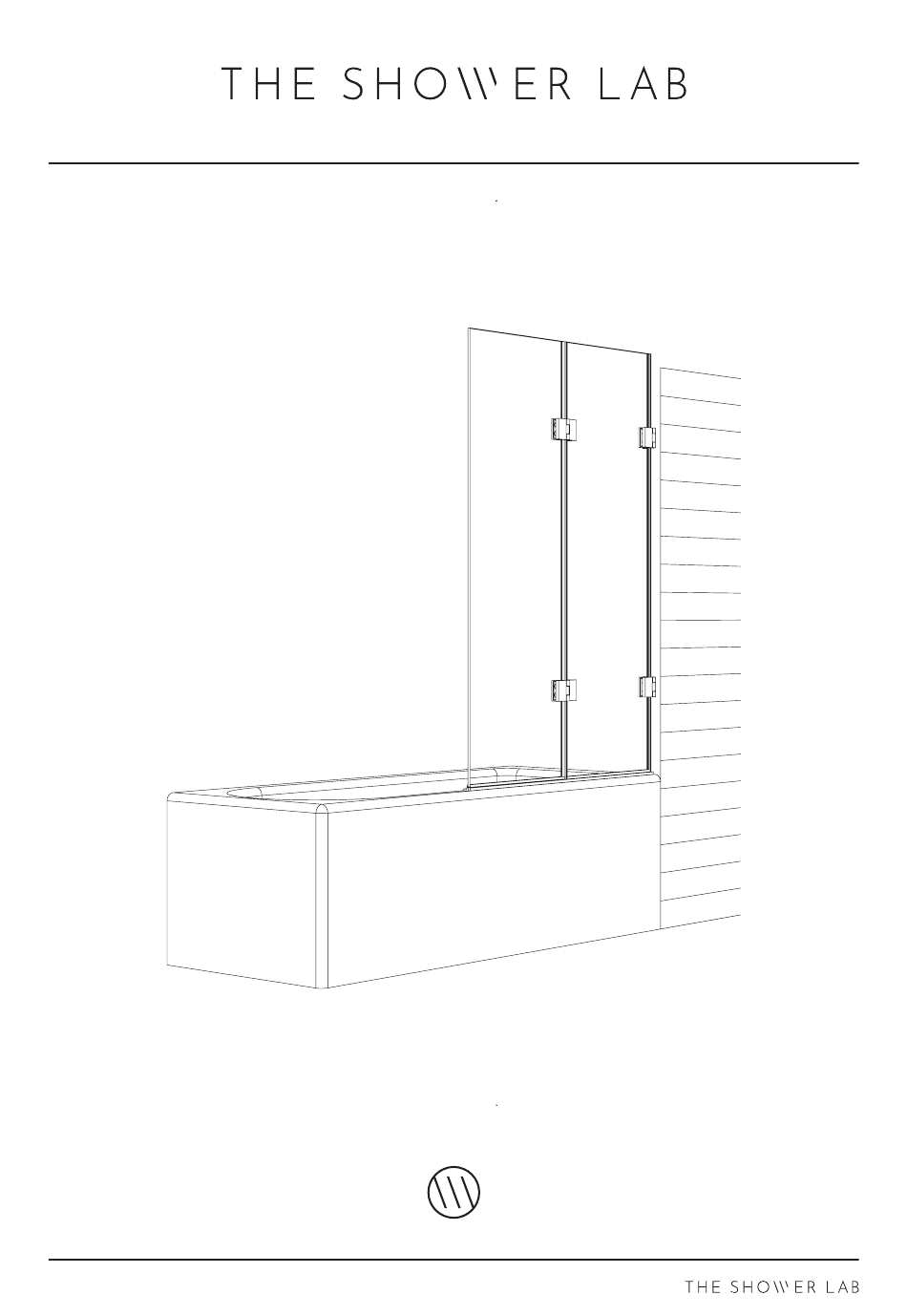

- Page 1 Illustration - View 14.2H VI E W 1 4.2H Right Hand 03/2024 V 2.0 SBv3...
-
Page 2: Prior To Installation
VIEW 14.2H IMPORTANT This shower screen / enclosure must be installed by suitably qualified individuals. We recommend a minimum of two people for safe assembly of certain sections of this screen. Ensure all appropriate safety equipment, especially protective footwear, safety glasses and gloves are used. - Page 3 VIEW 14.2H Supplied Parts Outward Opening Inward Opening Hinged Panel Fixed Panel Glass to Wall Hinge (Option Dependant) Glass to Glass Hinge BathUF15 End Cap L/R Bath 15 Underframe BP-BH70100G BathUF15CAP L/R BathUF15 BathUF15 Support 180° Magnetic seal Bottom door seal...
- Page 4 VIEW 14.2H These instructions are for the View 14.2H. Please use the below diagram to reference the list of parts. Hinged Panel Wall Panel Glass to Wall h Seal Glass to Wall Hinge Glass to Glass Hinge Inline Magnetic Seal...
-
Page 5: Adjustment Sheet
VIEW 14.2H ADJUSTMENT SHEET STANDARD ENCLOSURE Please use the table below to find the maximum and minimum limits for your underframe. To increase the success of your install, try to fit your underframe in the middle of this range. BESPOKE ENCLOSURE Use the Install Sheet supplied separately to find your panel widths. - Page 6 VIEW 14.2H Measure the width of both panels, add 31mm to this measurement. of the bath. Ensure it is on the level surface. Mark this length on the underframe. For best results, use masking tape. Cut DO NOT use silicone at this point.
- Page 7 VIEW 14.2H Identifying Your Panels Wall Panel Hinge Panel 285mm 34mm 34mm 27mm 27mm 274mm 02/06 03/2024 V 2.0 SBv3...
- Page 8 VIEW 14.2H Assemble the two 90° glass to wall hinges onto the screen, making sure the hinge is centred in the glass holes. glass to wall hinges to the wall. the measurements. Wall Plate Hole “B”. always on inside of screen Hole “B”...
- Page 9 VIEW 14.2H 03/17 03/2024 V 2.0 SBv3...
- Page 10 VIEW 14.2H Magnestic Bottom Seal Door Seal Underframe 04/17 03/2024 V 2.0 SBv3...
- Page 11 VIEW 14.2H Using the sharp modelling knife, trim Fit the cover plates to the 90° glass to any excess gasket material from the hinges and brackets that may have Trim Apply silicone sealant as hown below between the under-frame and the bath...
- Page 12 VIEW 14.2H Silicone 06/17 03/2024 V 2.0 SBv3...
