Summary of Contents for THE SHOWER LAB VIEW 14.2H

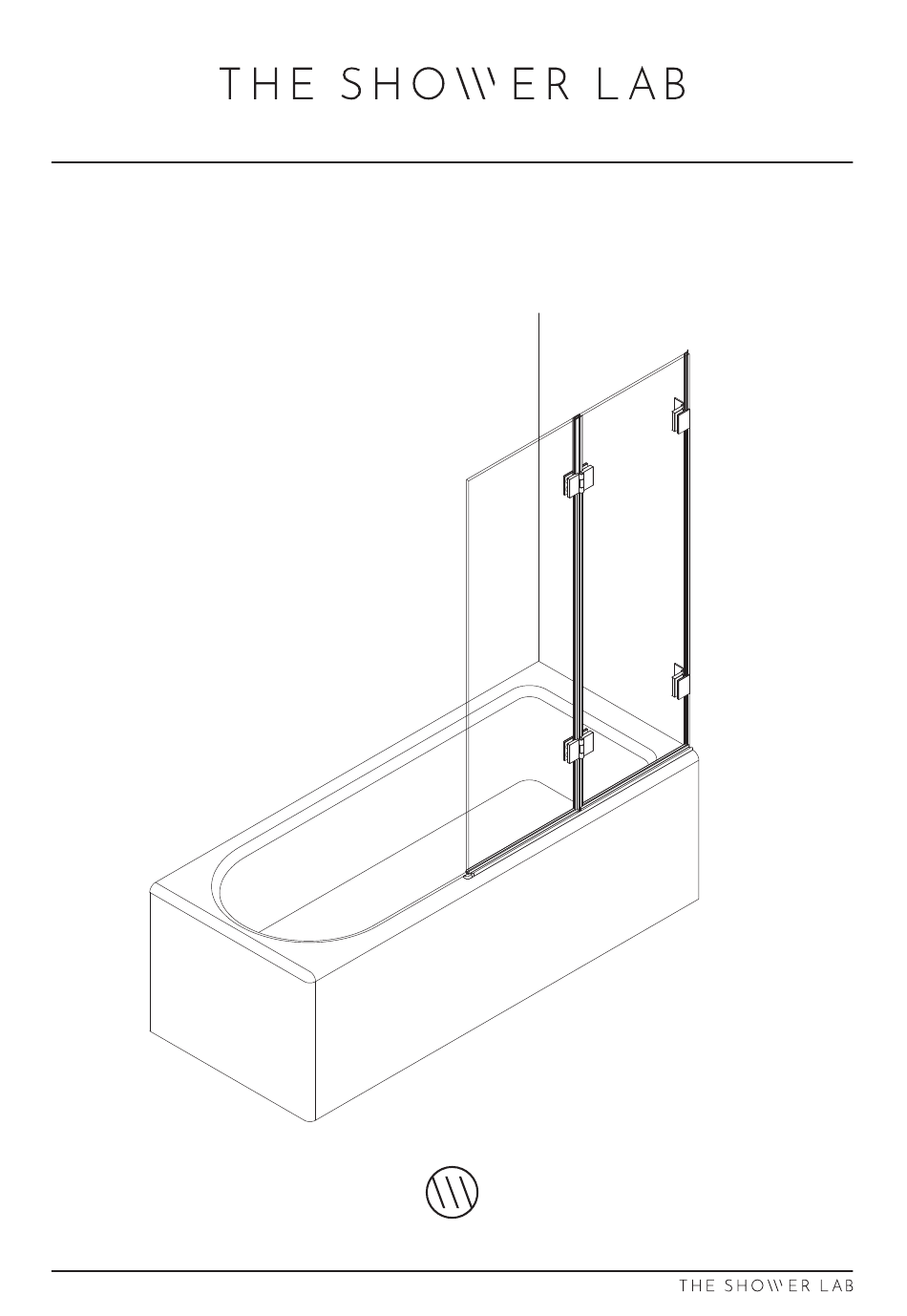

- Page 1 Illustration - View 14.2H V I E W 1 4 . 2 H Bi-folding Bath Screen Inward Opening 07/2019 V 2.2...
-
Page 2: Prior To Installation
VIEW 14.2H IMPORTANT This shower screen / enclosure must be installed by suitably qualified individuals. We • recommend a minimum of two people for safe assembly of certain sections of this screen. Ensure all appropriate safety equipment, especially protective footwear, safety glasses •... - Page 3 VIEW 14.2H Supplied Parts Outward Opening Inward Opening Glass Panel - P Glass Panel - R Glass to Wall Hinge (Option Dependant) Each hinge includes 3x Screws and Wall Plugs Glass to glass hinge Bath Screen Underframe Bath Screen End Cap...
- Page 4 VIEW 14.2H These instructions are for the bi-folding bath screen. The image below shows an inward opening con guration. Please use the below diagram to reference the list of parts. Glass Panel - P Glass Panel - R Glass to Wall Hinge...
- Page 5 VIEW 14.2H Please see below the two con gurations for this bi-folding bath screen. Please note the hinge orientation that has been supplied will help determine which con guration you have. Inward Opening Outward Opening 07/2019 V 2.2...
- Page 6 VIEW 14.2H Measure the width of both panels, add Posi�on the under-frame on the edge 6mm to this measurement. of the bath. The under-frame needs to be set back far enough so that it is on Mark this length on the under-frame.
- Page 7 VIEW 14.2H Assemble the two 90° glass to wall First, check there is a gap of 9mm hinges onto the screen, making sure between the edge of glass and �le. the hinge is centred in the glass holes. Check the orienta�on of the hinges for Secondly, using a pencil, mark the your screen configura�on.
- Page 8 VIEW 14.2H Fix half of the glass to glass hinges to Push a 180° magne�c seal onto the the first hinged panel. same panel. Push the other 180° magne�c seal onto Remove the glass supports. the edge of the second hinged panel.
- Page 9 VIEW 14.2H Using a fine toothed junior hacksaw, Mark, remove and trim the top to trim the bo�om of the glass to wall make the seal fush with the top of the seal as shown to fit neatly around the screen.
- Page 10 VIEW 14.2H Using the sharp modelling knife, trim Fit the cover plates to the 90° glass to any excess gasket material from the wall hinges and glass to glass hinges. hinges and brackets that may have squeezed out when �ghtening. Take care not to scratch the glass.
- Page 11 VIEW 14.2H Please use this template to locate Hole “B” if your screen opens OUTWARDS from the wall. Tear Here 40mm Hole “B” 15mm Glass to Wall Hinge Template 07/2019 V 2.2...
