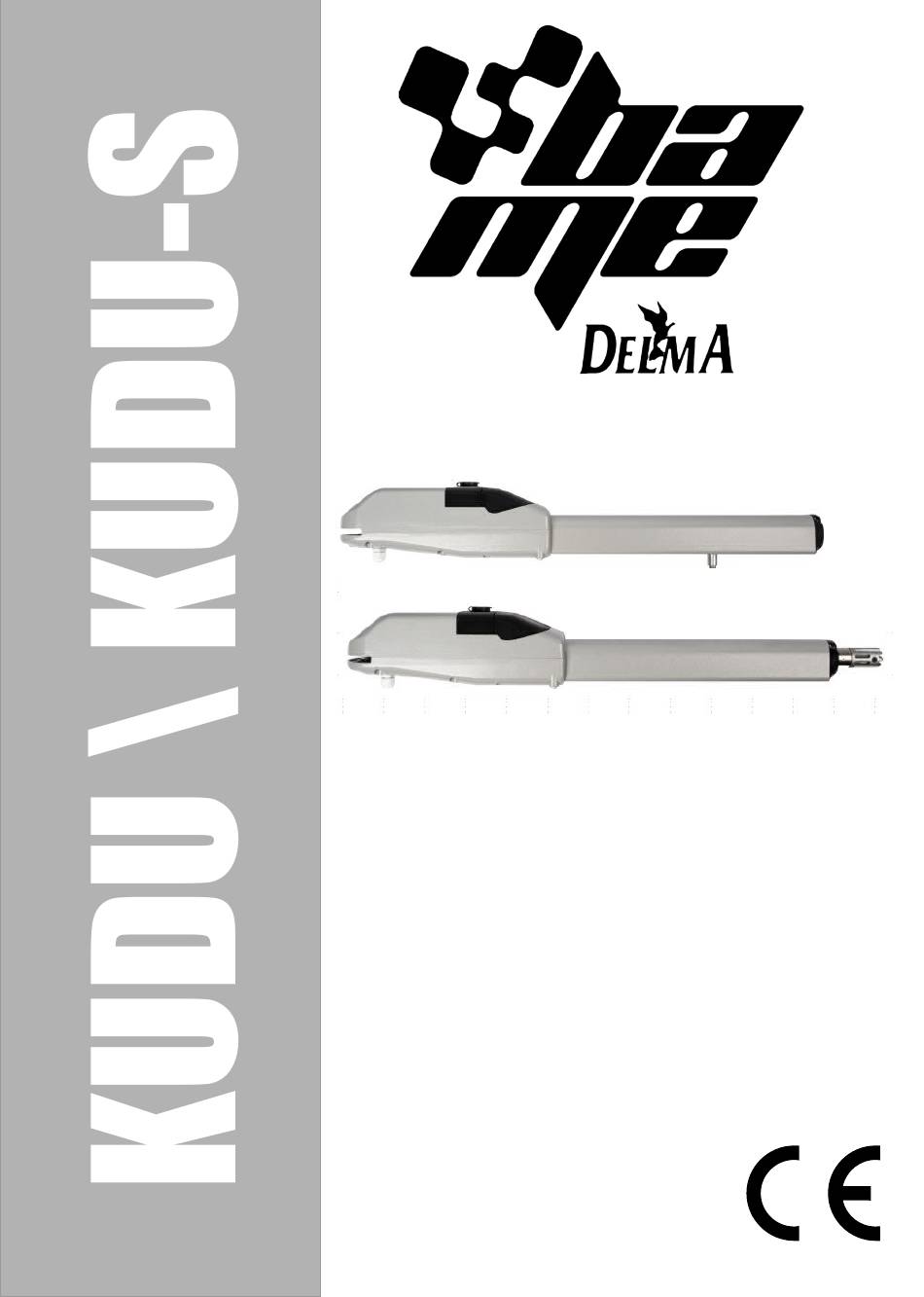

- Page 1 KUDU \ KUDU-S Electromechanical irreversible motoreducer for swings gates up to 2,5 \ 3,5 meters. INSTALLER MANUAL READ THIS MANUAL CAREFULLY BEFORE PROCEEDING WITH THE INSTALLATION KEEP THIS MANUAL FOR FUTURE REFERENCE...
- Page 2 KUDU Residential use 230\115 V. Intensive use 24 V. The body of the motor is made in die-cast alluminium, painted with epoxy powder paint to insure an high resistance to oxidation. The motoreducer with the endless screw it’s lubricated with permanent grease and does not need maintenance.
- Page 3 TIGER 550 KUDU-S Residential use 230\115 V. Intensive use 24 V. The body of the motor is made in die-cast alluminium, painted with epoxy powder paint to insure an high resistance to oxidation. The motoreducer with the endless screw it’s lubricated with permanent grease and does not need Maintenance.
-
Page 4: Standard Specifications
- The danger zone where these risk must not be present it’s extened up to 2,5 mt of height. BAME s.r.l. is liable only for the individual articles producedand sold by BAME. the gate with the motor it’s considered a machine and must respect the machinery directives, the installer must verify the safety of the gate with the motor and is liable for any damage due to a poor installation. - Page 5 Emergency release system: In case of need follow these instructions to unlock the motor: 1. Open the plastic cap positioned on the motor top and insert the key. 2. Turn the key and remove the plastic cover. ATTENTION: THIS SHEET MUST BE CONSIGNED TO THE CLIENT...
-
Page 6: Declaration Of Conformity
Declaration of conformity (must be filled by the installer) DECLARATION OF CONFORMITY “A” The undersigned Name: ......................Surname:....................… responsible of the installation of the system declare that the product: Gate type: ..............Address: ..............................satisfies all the technical regulations applicable to the product within the scope of Council Directives 73/23/EEC, 89/336/EEC, 98/37/EEC and subsequent modifications. - Page 7 Declaration of conformity DECLARATION OF CONFORMITY “B” BAME srl Leonardo da Vinci, 23 46020 San Giacomo Segnate ( MN) Italy declare that the product motoreducer for sliding gates, see the instruction manual for compatible gates KUDU \ KUDU-S satisfies all the technical regulations applicable to the product within the scope of Council Directives: MACHINERY DIRECTIVE 98/37/CEE AND SUBSEQUENT MODIFICATIONS.
-
Page 8: Safety Checks
Safety checks IMPACT Checks: The ruggedness and the fastening of the structure is adeguate. The swing can not fall in the ground. The threshold of the gate it’s modeled not to create hindrance. Limit switch are installed and verified. CRUSHING The moving parts are equipped with adeguate protections installed in compliance with the safety standards. -
Page 9: Electrical Plant
Electrical plant Area to be protected with ZONA DA PROTEGGERE CON DISPOSITIVI safety devices DI SICUREZZA For the electrical connections use the following cables (fig.1): - 3x1.5 main power supply 230 V OPERATOR EXTERNAL PHOTOCELL RX - 2x1.5 + 1xRG58 flashing light + antenna INTERNAL PHOTOCELL RX EXTERNAL PHOTOCELL TX - 2x1 photocell transmitter... - Page 10 KUDU Installing the motoreducer You must pay attention to the position of the motoreducer with reference to hinges of the swing: - fix the exact opening angle of the swings (95° or 120°) as shown in fig. 5; - respecting the measures on fig. 6, fix the exact fixing points of the stirrups which will sustain the motor; - set the stirrups (fig.
- Page 11 KUDU-S Installing the motoreducer You must pay attention to the position of the motoreducer with reference to hinges of the swing: - fix the exact opening angle of the swings (95° or 120°) as shown in fig. 5; - respecting the measures on fig. 6, fix the exact fixing points of the stirrups which will sustain the motor; - set the stirrups (fig.
-
Page 12: Warranty
The safety devices should be always installed and kept in full working order. Once terminated the system setting, you should place back the container on its position, fastening tight its screws. BAME s.r.l. , as manufacturer, can not be held responsible for damages due to improper use of the door/gate.
