Clesana Power Management (powered by VOTRONIC)
Please read this installation and operating manual thoroughly, in particular the safety guidelines
and instructions, before you start with the connection and start-up.
Using an additional buffer battery the Clesana Power Management allows you to operate a Clesana C1 on weak 12V
power supply connections (with max. 3 A). The charging voltage of the buffer battery is based on the charging voltage
of the supply battery, the power consumption is limited to 2.5 A thanks to the Clesana Power Management. With
sufficiently strong power supply (min. 22 A) the Clesana Power Management can also be used as a remote control relay
for switching off the Clesana C1.
Operation is permissible only with two identical battery rated voltages 12V/12V.
Mixed operation can result in damages to the device and/or the batteries. Operation is not
allowed on power sources not controlled by a charging program!
Device installation
Clesana Power Management should be installed in the proximity of the buffer batteries as much as possible. The device
must be properly protected against moisture and very good air supply must be ensured. Locations where trapped heat
can build up are not suitable for the device. Clesana Power Management can be mounted on external mounting points
of the housing shown under Fig. 2. Ensure that cables are laid securely, sharp edges can damage cable insulation and lead
to malfunctions or damages, always use suitable installation material. Make sure that the switch on the device is accessible.
Setting the Dip Switch
Before electric connection of the device, you need to set the Dip Switch correctly. Consider which type of installation
or function is suitable for you.
Dip Switch 1:
The following table shows the setting of the first Dip Switch (1):
Dip Switch 1
OFF
ON
Note, make sure to select the setting based on the executed connection scenario!
7
92 mm
Dip Switch
Stop
top
bottom
All dimensions in mm

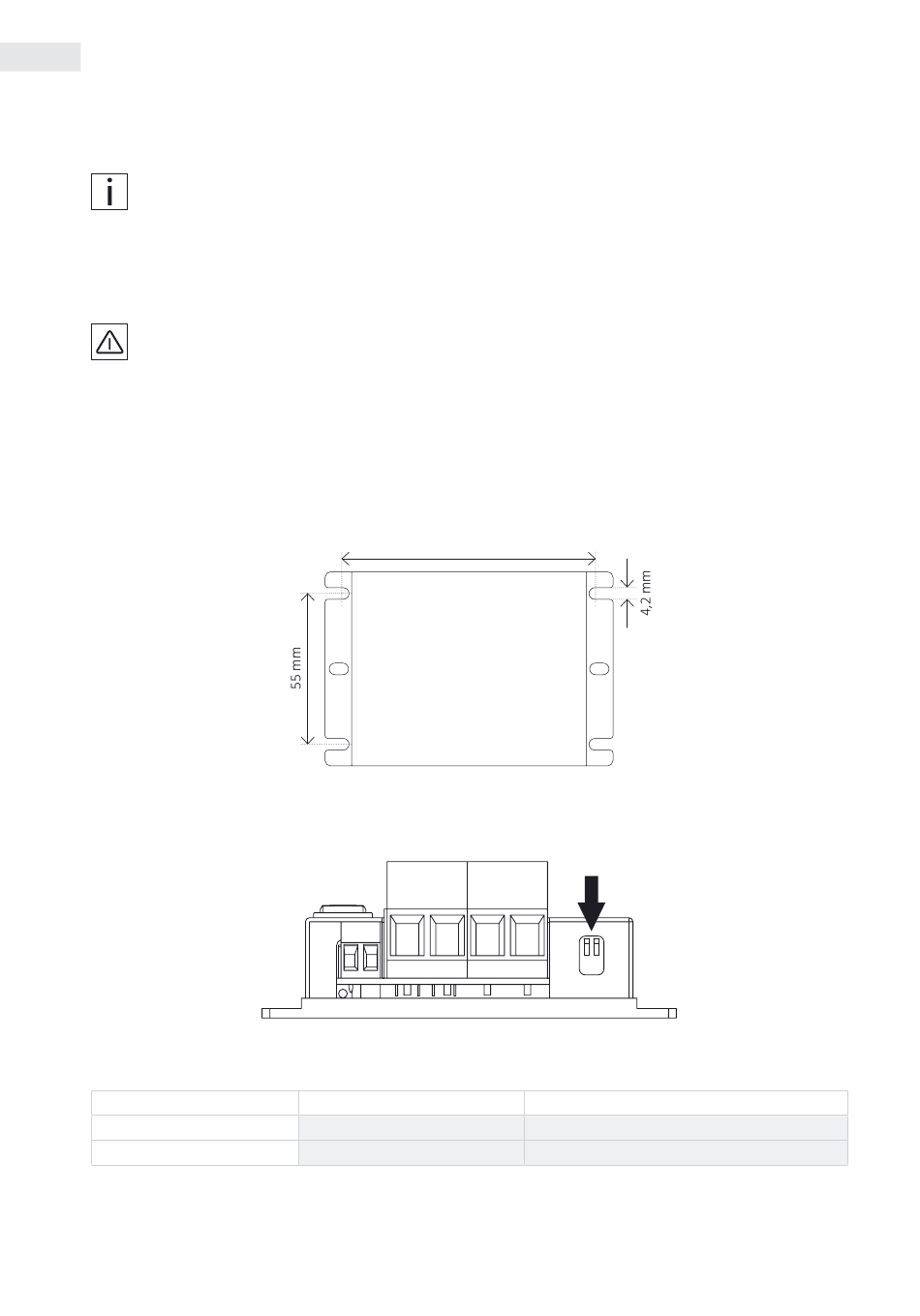

Fig. 2: Dimensions of the moun-
ting points of the housing
1
2
Fig. 3 Dip Switch
Beschreibung
As a relay (via supply battery)
With buffer battery
Table 1: Dip Switch 1
