iOW11W – Wi-Fi 1 ch On/Off + 1 digital
input
Features:
• 1 relay output.
•
1 digital input.
Applications:
• illumination and appliance control.
• Control of low voltage devices.
• Reading of push-buttons, switches and detectors.
Electrical Specifications:
Power supply voltage: 110-250VAC / 24 to 60VDC or 12VDC.
Power supply frequency: 50/60Hz;
Max output current: 16A;
Wireless standard: Wi-Fi 802.11 b/g/n, 2,4 – 2,5 GHz.
Physical Specifications:
Operating temperature: -40ºC up to +40ºC
Dimensions: 41mm X 36mm X 17mm;
Protection degree: IP20, for indoor use;
ATTENTION:
Mordomus shall not be liable for any damages resulting from the
use of our equipment outside the specifications and/or for a purpose
other than that intended.
Do not exceed the output ratings.
Make sure to always place the bridge according to the chosen
power supply voltage. Failure to do so will damage the iOW11W.
Overview:
Bridge for supply voltage selection.
1. Installation
Caution! Before installing the device, make sure that the mains power
is turned off.
1. Turn off mains power.

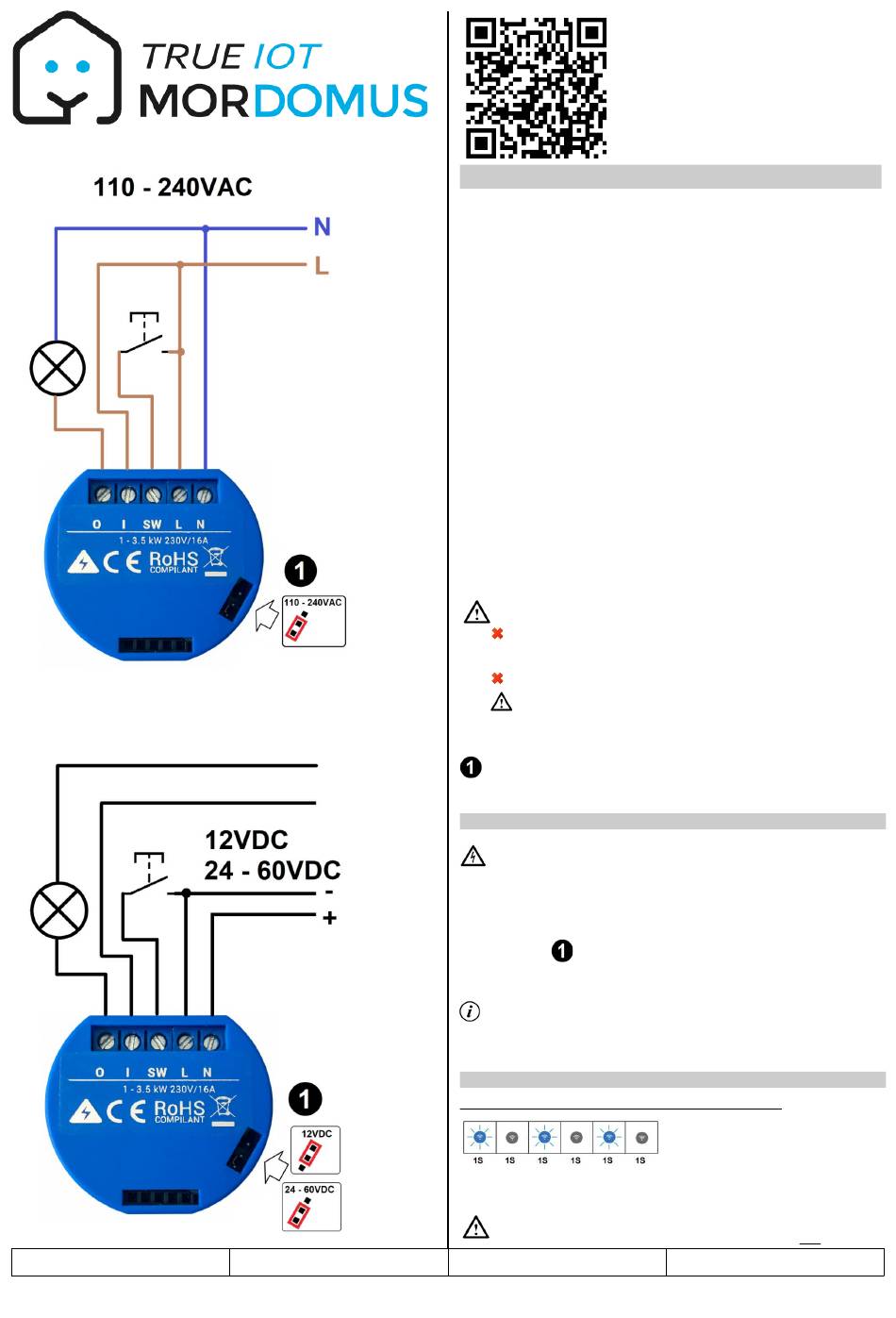

2. Perform the connection according to the respective schematic and power
supply voltage.
3. Set the bridge to the appropriate position.
4. Power up.
Please note that, since the iOW11W has no luminous connection status
indicator, this function is performed by the output relay. After successful
registration this diagnostic mode is automatically disabled.
2. Connection to WI-FI network and enrollment to Mordomus
Method 1 - Automatic Setup (Router must support WPS)
1. Since factory, on powering up the iOW11W is in WPS negotiation mode
signaled by the output relay changing its state continuously.
Take care not to power up more than one iSFXX or iOWXXXX device at
the same time since WPS allows for configuration of only one device at a
v.2221
https://www.mordomus
.com/mordomus/docs/
wifi/iOW11W.pdf
1/6
