iSH11M – Wi-Fi On/Off with power meter
+ digital input
Features:
• 1 relay output with power meter.
• 1 digital input.
Applications:
• illumination, appliance control and power metering or control of low
voltage devices.
• Reading of push-buttons.
Electrical Specifications:
Power supply voltage: 110-250VAC / 24 to 60VDC.
Power supply frequency: 50/60Hz;
Max output current: 16A;
Wireless standard: Wi-Fi 802.11 b/g/n, 2,4 – 2,5 GHz.
Physical Specifications:
Operating temperature: -40ºC up to +40ºC
Dimensions: 41mm X 36mm X 17mm;
Protection degree: IP20, for indoor use;
ATTENTION:
Mordomus shall not be liable for any damages resulting from the
use of our equipment outside the specifications and/or for a purpose
other than that intended.
Do not exceed the output ratings.
The connection status LED and the button to switch to PA mode are on the
back of the iSH11M.

1. Installation

Caution! Before installing the device, make sure that the mains power
is turned off.
1. Turn off mains power.

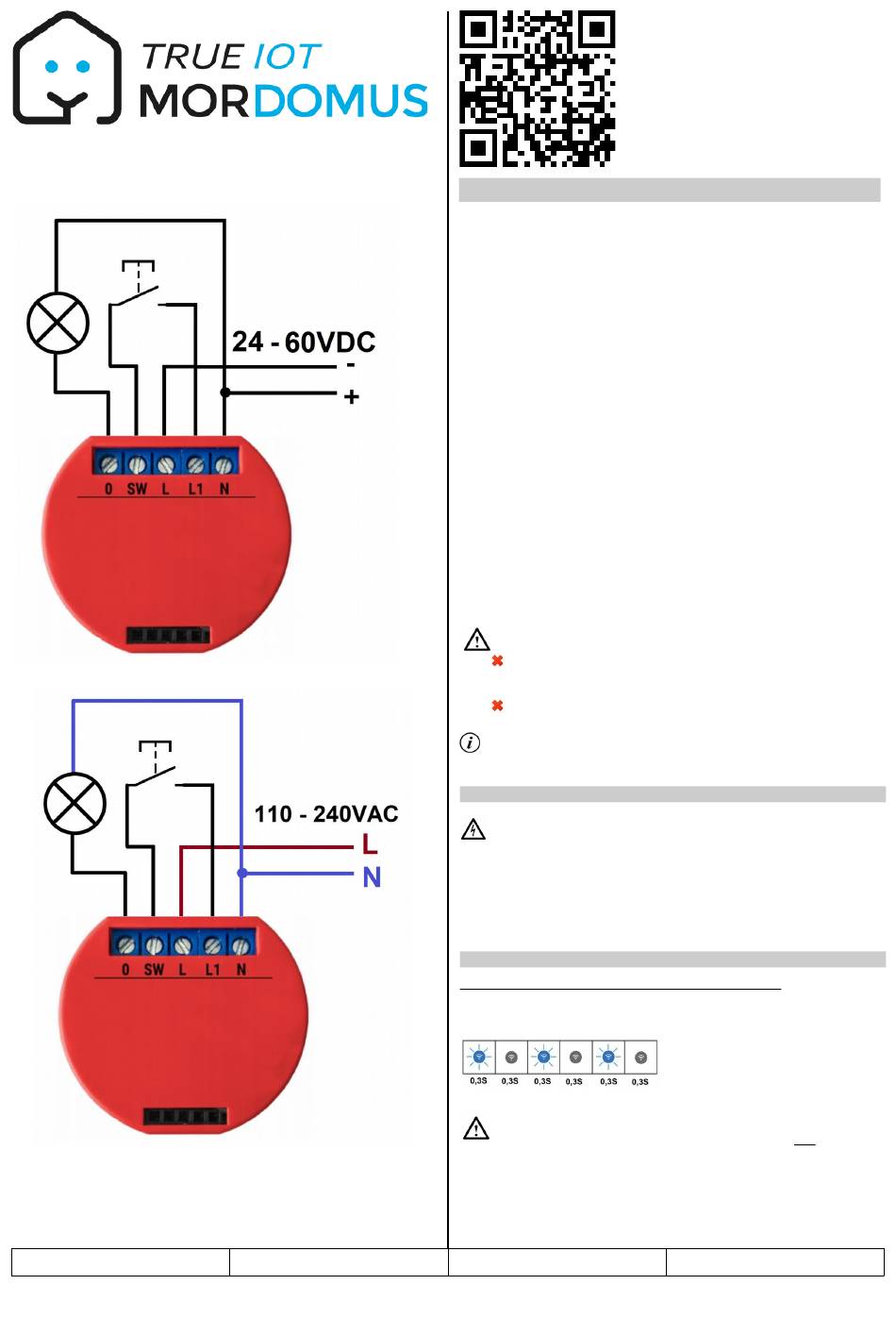

2. Perform the connection according to the respective schematic and supply
voltage.
3. Power up.

2. Connection to WI-FI network and enrollment to Mordomus

Method 1 - Automatic Setup (Router must support WPS)
1. Since factory, on powering up the iSH11M is in WPS negotiation mode
signaled by the connection status indicator blinking fast continuously.
Take care not to power up more than one iSFXX or iSHXX device at the
same time since WPS allows for configuration of only one device at a
time. We recommend powering up and registering the devices in a sequential
manner.
2. Press the WPS button on the router according to the user manual of this
device and wait until the WPS negotiation is completed. This is signaled by 2
short blinks of the connection status indicator every 2 seconds.
