Summary of Contents for True Fitness VAPOR ALPINE RUNNER

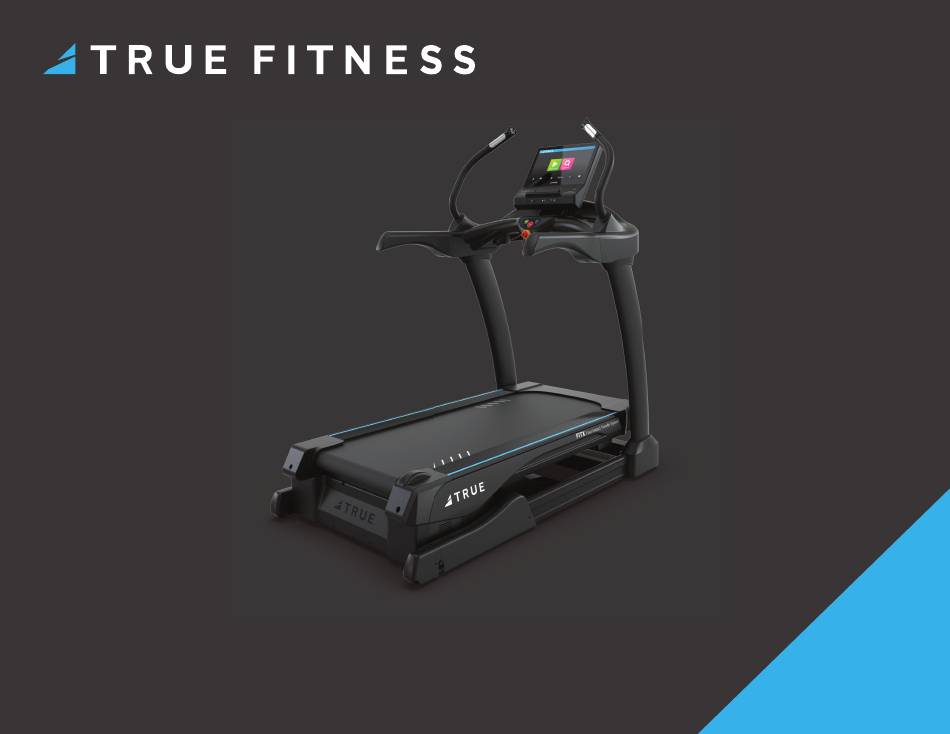

  • Page 1 VAPOR ALPINE RUNNER OWNER’S MANUAL AND ASSEMBLY GUIDE...
  • Page 2: Important-Please Read

    Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@truefi tness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2024 TRUE Fitness All Rights Reserved.
  • Page 3: Reporting Freight Claims Or Parts Damage

    fi le a claim if the carrier is not notifi ed in a timely manner. Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@truefi tness.com | 800.883.8783) or TRUE sales support (sales@truefi tness.com | 800.426.6570) Monday-Friday during normal business hours. © 2024 TRUE Fitness All Rights Reserved.
  • Page 4: Table Of Contents

    ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............11 ASSEMBLY STEPS.................16 PRODUCT FEATURES BASE OVERVIEW................37 CONSOLE OVERVIEW..............38 CARE AND MAINTENANCE INSPECTION................40 CLEANING THE EQUIPMENT............40 LEVELING THE MACHINE..............41 RUNNING BELT ALIGNMENT............42 TENSIONING THE RUNNING BELT..........43 PREVENTATIVE MAINTENANCE............44 LONG TERM STORAGE..............44 © 2024 TRUE Fitness All Rights Reserved.
  • Page 5: Safety Instructions

    Use this equipment only for its intended use as described in this manual. • Use a TRUE AC power cord or AC/DC adapter only. • Position this product so the power cord plug is accessible to the user. © 2024 TRUE Fitness All Rights Reserved.
  • Page 6 • Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out of reach of the equipment while it is in motion. © 2024 TRUE Fitness All Rights Reserved.
  • Page 7: Power Requirements

    Number of Units Model Plug/Outlet* Dissipation (Hz) (Amps) per Circuit (Watt) NEMA 5-20 Dedicated 50/60Hz 1650 TC1-IA-35 NEMA 6-15* Dedicated 50/60Hz 1650 *The plug confi guration for the power adapter may vary by country. © 2024 TRUE Fitness All Rights Reserved.
  • Page 8: Space Requirements

    71” x 40” x 71” (180cm x 101cm x 180cm) Active Footprint ◦ 81” x 40” x 71” (206cm x 101cm x 180cm) • MACHINE WEIGHT 592 lbs / 269 kg • MAXIMUM USER WEIGHT 500 lbs / 226.7 kg © 2024 TRUE Fitness All Rights Reserved.
  • Page 9: Warning Decals

    TC1-IA-35 number location 24-TC1IA3501A SAMPLE 220V-240V, 50/60 Hz, 8A base serial number location COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com. © 2024 TRUE Fitness All Rights Reserved.
  • Page 10: Proper Training Position And Treadmill Safety

    While using, ensure all hands, legs, and feet remain within the boundary box of the treadmill belt. Treadmill Exit When getting off the treadmill, wait until the belt comes to a full stop, then step on the side rails (straddle covers) and then onto the fl oor. © 2024 TRUE Fitness All Rights Reserved.
  • Page 11: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com | 800.883.8783). © 2024 TRUE Fitness All Rights Reserved.
  • Page 12: Tools Needed For Assembly

    4mm Allen Wrench 17mm Wrench 3/16” Allen Wrench 7/32” Allen Wrench 19mm Wrench 6mm Allen Wrench #2 Phillips Screwdriver 1/4” Allen Wrench Wire Cutters 8mm Allen Wrench Level Long-Length Ruler 0”-48”/0 cm-120 cm © 2024 TRUE Fitness All Rights Reserved.
  • Page 13: Box Contents

    *The 220V Power Cord, 220V Power Inlet Assembly, and 220V Switch Assembly are only included with this product if the unit is being used on a circuit having a nominal rating of more than 120-V. © 2024 TRUE Fitness All Rights Reserved.
  • Page 14: Hardware Pack Contents

    STAINLESS BOLT BLUE PATCH 5/16-24 UNF X 38MM TI0199 TI0229 WASHER, STAR, INTERNAL EXTERNAL TOOTH LOCK TOOTH, M8 WASHER RT0011 TI0198 SCREW, M5-0.8 X 10MM TRUSS BOLT COVER - R HD. BLK TI0232BK FE0024 © 2024 TRUE Fitness All Rights Reserved.
  • Page 15 TI0076 TI0116 CORD RETAINING PLATE BOLT-HEX HEAD 1/4” - 20UNC X 20MM TI0678-35 TCS0027 PHMS, M4-0.7 X 80MM, BLK BED SHCS, 5/16”-24, 16MM, BLK BED TI0212 TI0209 LOCK WASHER M8, BLK, ZP PS0099 © 2024 TRUE Fitness All Rights Reserved.
  • Page 16: Assembly Steps

    Step 1—Connect Pedestal Cables Connect the cables from the pedestals to the cables from the base of the machine on both sides. IMPORTANT! DO NOT pinch the cables. Network Coaxial I/O Data Power © 2024 TRUE Fitness All Rights Reserved.
  • Page 17 LOCK WASHER M10, BLK BED Using an 8mm allen wrench, attach the left and right pedestals using 8 hex screws and 8 lock washers. IMPORTANT! DO NOT fully tighten the hardware until step 3. © 2024 TRUE Fitness All Rights Reserved.
  • Page 18 8 hex screws, 8 external washers, 2 screws, and 2 fl at washers. B. Using an 8mm allen wrench, tighten the 8 hex screws and 8 lock washers from step 2. © 2024 TRUE Fitness All Rights Reserved.
  • Page 19 A. Connect the cables from the left pedestal to the corresponding cables in the console rack. B. Connect the cables from the right pedestal to the corresponding cables in the console rack. Network I/O Data Power Coaxial Heart Rate Button Control © 2024 TRUE Fitness All Rights Reserved.
  • Page 20 8 hex screws and 8 internal washers. NOTE: Handlebar base covers are marked L for left and R for right. Heart Rate Cable © 2024 TRUE Fitness All Rights Reserved.
  • Page 21 B. Using a #2 Phillips screwdriver, attach the handlebar base covers using 2 screws and 2 screw covers. NOTE: Screw covers are marked L for left and R for right. © 2024 TRUE Fitness All Rights Reserved.
  • Page 22 TCS0027 BOLT-HEX HEAD 1/4” - 20UNC X 20MM A. Slide the handrails into the corresponding tubes on the pedestal uprights. B. Using a 7/32” allen wrench, attach the handrails using 4 hex screws. © 2024 TRUE Fitness All Rights Reserved.
  • Page 23 PS0099 LOCK WASHER M8, BLK, ZP A. Insert the console mast into the console rack. B. Using a 1/4” allen wrench, attach the console mast using 4 hex screws and 4 spring washers. © 2024 TRUE Fitness All Rights Reserved.
  • Page 24 I/O data PVS power power button coaxial control heart rate center ground do not connect power here NOTE: Depending on the installation, safety PVS power may not be used. power I/O data I/O data © 2024 TRUE Fitness All Rights Reserved.
  • Page 25 • Move the brown cable to the brown dot. C. Using a #2 Phillips screwdriver, secure the 220V power inlet assembly to the frame. 110V Power Inlet Assembly 220V Power Inlet Assembly © 2024 TRUE Fitness All Rights Reserved.
  • Page 26 ON position ). If it does not reset, or the circuit breaker operates again under normal use, contact TRUE Product Support at 800.883.8783 or service@ truefi tness.com. 00553600 00553700 © 2024 TRUE Fitness All Rights Reserved.
  • Page 27 VAPOR XT-ONE GRAVITY UPRIGHT BIKE VAPOR LATERAL X CAUTION: AVOID DAMAGE TO THE MACHINE! IF CALIBRATION IS REQUIRED, ALWAYS VERIFY THE CORRECT BASE MODEL HAS BEEN CONFIGURED TO THE CONSOLE BEFORE RUNNING CALIBRATION. © 2024 TRUE Fitness All Rights Reserved.
  • Page 28 H. Verify the belt is centered and feels smooth. If adjustments still need to be made, see RUNNING BELT ALIGNMENT on page 42. Check for slippage on the running belt. If adjustments still need to be on/off switch made, see TENSIONING THE RUNNING BELT on page 29. © 2024 TRUE Fitness All Rights Reserved.
  • Page 29 Allow 2 minutes for the belt to self adjust. J. Verify the belt is not slipping. K. Reattach the front end caps to the treadmill. Repeat these steps if additional tensioning is needed. © 2024 TRUE Fitness All Rights Reserved.
  • Page 30 A. Tuck excess cable length into the console rack. B. Using a #2 Phillips screwdriver, attach the lower console rack cover using 13 screws. NOTE: Do not fully tighten until all screws are installed. © 2024 TRUE Fitness All Rights Reserved.
  • Page 31 LEFT UNDERSIDE COVER TI0202BK SHOULDER RIGHT SIDE TRIM TI0076 SCREW, MACHINE M4-0.7 X 12MM, BLK BED Using a #2 Phillips screwdriver, attach the left and right outer console rack covers using 8 screws. © 2024 TRUE Fitness All Rights Reserved.
  • Page 32 SCREW, MACHINE M4-0.7 X 12MM, BLK BED screws. FE0024 SCREW, M5-0.8 X 10MM TRUSS HD. BLK C. Slide the pedestal cover rings down and press them fi rmly into the pedestal base covers. © 2024 TRUE Fitness All Rights Reserved.
  • Page 33 SCREW, MACHINE M4-0.7 X 12MM, BLK BED TI0212 PHMS, M4-0.7 X 80MM, BLK BED Using a #2 Phillips screwdriver, secure the rear console cover to the console mast using 1 screw and 2 longer screws. © 2024 TRUE Fitness All Rights Reserved.
  • Page 34 A. Attach the safety key clip to the plate located on the console rack (when not working out). B. Attach the safety key clip to clothing at the beginning of any workout. Center Console Rack Safety Key Safety Magnet Safety Key String Key Clip © 2024 TRUE Fitness All Rights Reserved.
  • Page 35 D. Using a 3mm allen wrench, reattach the rear step cover to the rear step frame using 10 hex screws. E. Adjust the leveling feet on the optional step until they contact the fl oor. © 2024 TRUE Fitness All Rights Reserved.
  • Page 36 IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. C. Verify both lock nuts are securely tightened and fl ush against the bottom of the frame. jam nut jam nut leveling feet © 2024 TRUE Fitness All Rights Reserved.
  • Page 37: Product Features Base Overview

    A safety device designed to protect the treadmill from excessive electrical current. J. Power Cord Delivers power from the wall outlet to the treadmill. K. Leveling Feet An adjustable system used to aid in the leveling the treadmill. © 2024 TRUE Fitness All Rights Reserved.
  • Page 38: Console Overview

    UNITE TOUCHSCREENS (16” SHOWN) Android OS Touchscreen Choose Workout Wireless Mirroring (Android Only) Bluetooth Compatible Apple Watch Compatible Choose Language Galaxy Watch Compatible Lock Screen for Cleaning Tap to Pair Wireless Charging HDMI 3.5mm Headphone Jack © 2024 TRUE Fitness All Rights Reserved.
  • Page 39 UNITE LED Eight Dedicated Data Points Manually Adjust Incline Manually Adjust Speed Dedicated Message Center Bright White LEDs Keypad Choose Workout © 2024 TRUE Fitness All Rights Reserved.
  • Page 40: Care And Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any part of the treadmill. Allow the treadmill to dry completely before using. Frequently vacuum the fl oor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation of the unit.
  • Page 41: Leveling The Machine

    IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. C. Verify both lock nuts are securely tightened and fl ush against the bottom of the frame. jam nut jam nut leveling feet © 2024 TRUE Fitness All Rights Reserved.
  • Page 42: Running Belt Alignment

    C. Turn the treadmill on and start the belt at 3 mph (5 kph) keeping off the unit. D. Allow 2 minutes for the belt to self adjust. Repeat these steps if additional adjustment is necessary. © 2024 TRUE Fitness All Rights Reserved.
  • Page 43: Tensioning The Running Belt

    Repeat these steps if additional tensioning is needed. Tools Used in this Procedure 8mm T-Handle Allen Wrench min 36” // max 36¼” (min 91.44 cm // max 92.08 cm) tick mark tick mark Long-Length Ruler 0”-48”/0 cm-120 cm © 2024 TRUE Fitness All Rights Reserved.
  • Page 44: Preventative Maintenance

    TRUE recommends that quarterly scheduled maintenance be performed by a qualifi ed service technician. Please contact your dealer or visit www.truefi tness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certifi ed service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...
  • Page 45: Additional Information Troubleshooting

    Rubbing sound from treadmill when in operation Contact TRUE product support Drive belt may be misaligned Slats may be loose or broken Interference with anti-pinch bracket Adjust belt tension See Tensioning the Running Belt © 2024 TRUE Fitness All Rights Reserved.
  • Page 46 Cables are pinched or damaged Contact TRUE product support Contact Heart Rate not displaying Nucleus board may be damaged Contact TRUE product support Heart Rate Grips may be damaged Contact TRUE product support © 2024 TRUE Fitness All Rights Reserved.
  • Page 47: Wiring Diagrams

    12V Power DC Power TI0326 TI0033 Supply TI0240 RELAY TI0241 DC Power TCS0032 AC Power TI0636 (LOAD) TI0328 TI0321 DC Power TI0329 TI0343 Disregard this fuse. It has been removed from the system © 2024 TRUE Fitness All Rights Reserved.
  • Page 48: Warranty Information Commercial Warranty

    Coax/TV, HDMI, USB, mirroring or Ethernet connections, and safety key. Cables and Linear 1 Year Bearings See Warranty Details for terms, conditions, and complete coverage details. Labor** 1 Year Wear Items*** 90 Days © 2024 TRUE Fitness All Rights Reserved.
  • Page 49: Limited-Use Commercial Warranty

    LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of commercial CARDIO equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or WARRANTY VAPOR, GRAVITY in-home use may receive alternative warranty coverage, provided they meet...
  • Page 50: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specifi ed period of time.
  • Page 51: Warranty Registration

    WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2024 TRUE Fitness All Rights Reserved.
  • Page 52 CONTACT US service@truefi tness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-TC1-IA-35 Owner’s Manual and Assembly Guide REV03 © 2024 TRUE Fitness All Rights Reserved.
