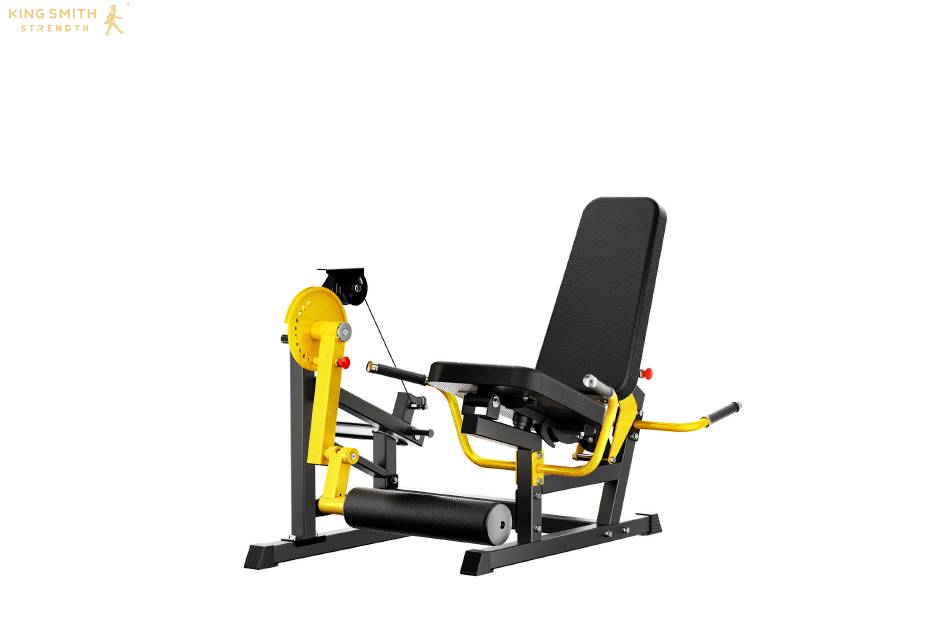

- Page 1 Assembly Manual Leg Extension/Curl Machine Model: LKC-1...
-
Page 2: Tools For Assembly
PREPARATION Tools for Assembly: Electric Screwdriver Hex Key (Allen Wrench) Set Wrench Set and Adjustable Wrench Rubber Mallet Lubricant (for smooth assembly) Important Tips: Hand-tighten bolts and nuts during assembly. This ensures that the structure can be adjusted as needed. Once the entire unit is assembled, tighten all hardware securely. -
Page 3: Component Overview
Component Overview ③ Cushion Bracket Frame 1 pc ① Right Main Frame 1 pc ② Rotational Arm Support 1 pc ④ Backrest Frame 1 pc ⑤ Leg Roller Frame 1 pc ⑥ Connector Tube 1 pc ⑦ Left Base Support Frame 1 pc ⑧... -
Page 4: Hardware Details
Hardware Details Ⓓ M8x30 External Ⓐ M8 Washer 7 pcs Ⓑ M10 Washer 28 pcs Ⓒ M10 Nut 16 pcs Hexagon Screw 3 pcs Ⓔ M8x50 External Ⓕ M8x80 External Ⓖ M10x20 Hexagon Socket Ⓗ M10x25 Hexagon Socket Hexagon Screw 2 pcs Hexagon Screw 2 pcs Countersunk Head Screw 1pc Countersunk Head Screw 1pc... -
Page 5: Step 1 Main Frame Assembly
Step 1 Main Frame Assembly Item No. Name Item No. Name Ⓑ ① M10 Washer Right Main Frame Ⓒ ⑦ M10 Nut Left Base Support Frame Ⓘ ⑧ M10x70 External Hexagon Screw Front Base Support Frame Ⓛ ⑨ M10x75 External Hexagon Screw Right Small Handle ⑩... - Page 7 Step 2 Rotational Arm Support Assembly Item No. Name Ⓑ M10 Washer Ⓒ M10 Nut Ⓚ M10x65 Round Head Square Neck Screw ② Rotational Arm Support...
- Page 8 Step 3 Connector Tube Assembly Item No. Name Ⓑ M10 Washer Ⓒ M10 Nut Ⓘ M10x70 External Hexagon Screw ⑥ Connector Tube...
- Page 9 Step 4 Leg Roller Frame Assembly Item No. Name ⑤ Leg Roller Frame...
- Page 10 Step 5 Foam Roller Assembly Item No. Name Ⓖ M10x20 Hexagon Socket Countersunk Head Screw Ⓗ M10x25 Hexagon Socket Countersunk Head Screw ⑬ Foam Roller ⑯ Roller Frame Cover...
- Page 11 Step 6 Cushion Bracket Frame Assembly Item No. Name ③ Cushion Bracket Frame...
- Page 12 Step 7 Cushion Assembly Item No. Name Ⓐ M8 Washer Ⓓ M8x30 External Hexagon Screw Ⓔ M8x50 External Hexagon Screw ⑮ Cushion...
-
Page 13: Step 8 Backrest Assembly
Step 8 Backrest Assembly Item No. Name Ⓐ M8 Washer Ⓓ M8x30 External Hexagon Screw Ⓕ M8x80 External Hexagon Screw ④ Backrest Frame ⑭ Backrest... - Page 14 Step 9 Backrest Assembly Item No. Name ④ Backrest Frame ⑭ Backrest...
- Page 15 Contact Us For any questions or assistance with the assembly of this product, please feel free to contact us. Email: support@kingsmithstrength.com We are committed to providing you with the support you need and ensuring your satisfaction!
