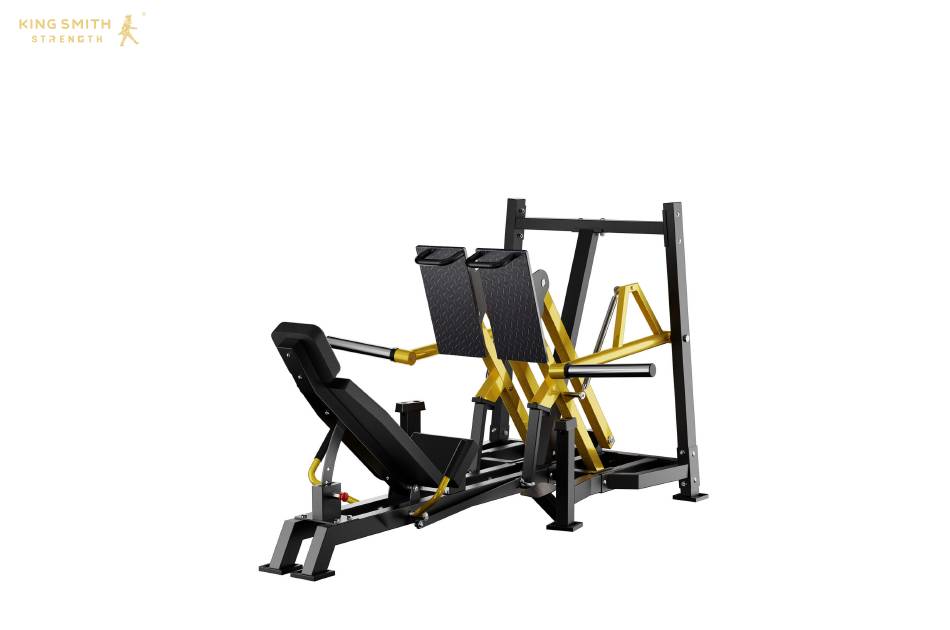

- Page 1 Assembly Manual Leg Press Machine Model: LPI-1...
-
Page 2: Tools For Assembly
PREPARATION Tools for Assembly: Electric Screwdriver Hex Key (Allen Wrench) Set Wrench Set and Adjustable Wrench Rubber Mallet Lubricant (for smooth assembly) Important Tips: Hand-tighten bolts and nuts during assembly. This ensures that the structure can be adjusted as needed. Once the entire unit is assembled, tighten all hardware securely. -
Page 3: Component Overview
Component Overview ③ Rear Bottom Crossbar 1 pc ① Support Pillar 2 pcs ② Side Support Pillar 2 pc ④ Front Foot Plate Connecting Arm 2 pcs ⑤ Rear Foot Plate Connecting Arm 2 pcs ⑥ Stabilizer Bar 2 pc ⑦... - Page 4 ⑩ Backrest ⑪ Backrest Adjustment ⑫ Locking Pin ⑬ Connecting Rod 2 pcs ⑭ Bottom Connector Tube 2 pcs ⑮ Top Connector Tube ⑯ Handle 2 pcs ⑰ Foot Plate 2 pc ⑱ Headrest...
- Page 5 ⑲ Support Column 2 pcs ⑳ Main Bracket 2 pcs ㉑ Seat Mounting Bracket ㉒ Cushion ㉓ Connecting Plate 2 pcs...
- Page 6 Hardwares Overview Ⓐ M8*25 Bolt 2 pcs Ⓑ M8*70 Bolt 4 pcs Ⓒ M10*25 Bolt 8 pcs Ⓓ M10*70 Bolt 26 pcs Ⓔ M10*90 Bolt 4 pcs Ⓕ M12*25 Bolt 2 pcs Ⓖ M12*50 Bolt 2 pcs Ⓗ M8 Washer 6 pcs Ⓘ...
-
Page 7: Step 1 Main Frame Assembly
Step 1 Main Frame Assembly Item No. Name Item No. Name ② Ⓒ Side Support Pillar M10*25 Bolt ③ Ⓓ Rear Bottom Crossbar M10*70 Bolt Ⓔ ⑧ Support Arm M10*90 Bolt ⑨ Ⓘ Gusset M10 Washer ⑫ Ⓚ Locking Pin M10 Locknut ⑭... - Page 9 Step 2 Handles Assembly Item No. Name Item No. Name ① Ⓕ Support Pillar M12*25 Bolt ⑯ Ⓖ Handle M12*50 Bolt ㉓ Ⓙ Connecting Plate M12 Washer Ⓛ M10 Locknut...
- Page 11 Step 3 Foot Plate Connecting Arm Assembly Item No. Name Item No. Name ④ ⑤ Front Foot Plate Connecting Arm Rear Foot Plate Connecting Arm ⑪ Backrest Adjustment...
- Page 12 Step 4 Foot Plates Assembly Item No. Name Item No. Name ⑰ Foot Plate...
- Page 13 Step 5 Stabilizer Bar Assembly Item No. Name Item No. Name ⑥ ⑬ Stabilizer Bar Connecting Rod ⑦ Ⓒ Grip Handle M10*25 Bolt...
-
Page 14: Step 6 Cable Assembly
Step 6 Cable Assembly Item No. Name Item No. Name ⑩ Ⓐ Backrest M8*25 Bolt ⑱ Ⓑ Headrest M8*70 Bolt ㉒ Ⓗ Cushion M8 Washer... - Page 15 Contact Us For any questions or assistance with the assembly of this product, please feel free to contact us. Email: support@kingsmithstrength.com We are committed to providing you with the support you need and ensuring your satisfaction!
