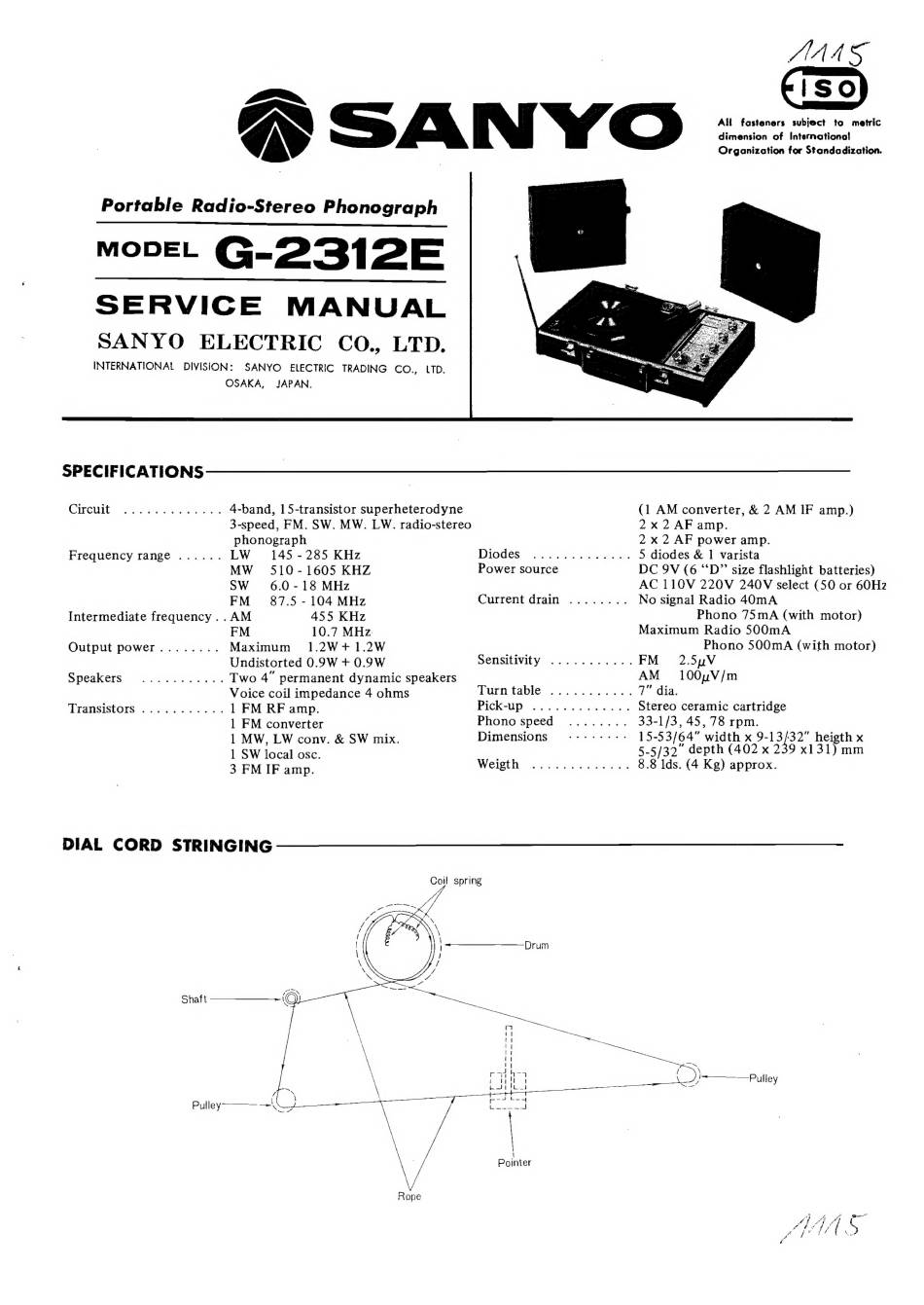

Sanyo G-2312E Service Manual

Organization for Standadization.
Om™ All fasteners subject to metric
. dimension of International

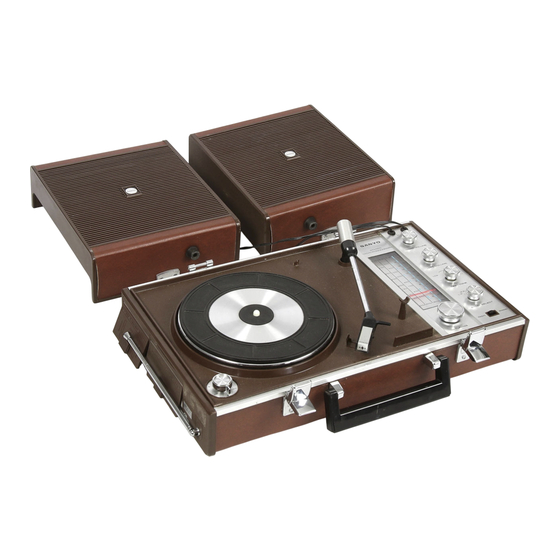

Portable Radio-Stereo Phonograph
MODEL G-2312E
SPECIFICATIONS
CireUll. -c2coics oases 4-band, 15-transistor superheterodyne (1 AM converter, & 2 AM IF amp.)
3-speed, FM. SW. MW. LW. radio-stereo 2x 2 AF amp.
phonograph 2X 2 AF power amp.
Frequency range ...... LW 145 - 285 KHz DiGGOS": 2h oi eo &.acae eat e 5 diodes & 1 varista
MW 510-1605 KHZ Power source DC 9V (6 "D" size flashlight batteries)
SW 60-18 MHz AC 110V 220V 240V select (50 or 60Hz
FM 87.5- 104 MHz Current drain ........ No signal Radio 40mA
Intermediate frequency . . AM 455 KHz Phono 75mA (with motor)
FM 10.7 MHz. Maximum Radio 500mA
Output power........ Maximum 1.2W+1.2W Phono 500mA (with motor)
Undistorted 0.9W+0.9W Sensitivity ........... FM 2.5uV
Speakers ........... Two 4° permanent dynamic speakers AM 100uV/m
Voice coil impedance 4 ohms Pri ta Dies. soso Fe es 7" dia.
Transistors ........... 1 FM RF amp. PICK-UP: 62 os ee oe Stereo ceramic cartridge
1 FM converter Phono speed be ee Dale: ene 33-1/3, 45, 78 rpm.
ix. Dimensions -------- 15-53/64" width x 9-13/32" heigth x
eat a Se | ae depth (402 x 239 x131) mm
3FMIF amp. Weigth SMe oe: ea te eae ces he 8.8 lds. (4 Kg) approx.
DIAL CORD STRINGING
Coil spring
Shaft
Drum
Rope
