Sanyo TP1010UM Service Manual

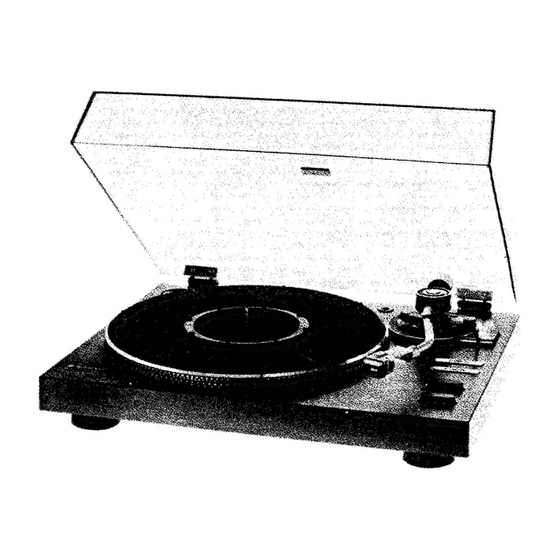

STEREO TURNTABLE TP1010UM Ack
(EUROPE)
SPECIFICATIONS
Motor PLL servomotor (TP 1010) Cartridge Magnetic stereo cartridge: (MG-10J)
Drive system Belt drive Stylus 0.5 mil diamond stylus: (ST-10J)
Speeds 33-1/3 and 45 rpm Stylus pressure 1.5—2.5g.
Speed control range Individual controls: +4% Frequency responce 20 — 20,000 Hz
Speed change Electronic type Overhang 15 mm
Wow & flutter 0.05% WRMS Channel separation Better than 25 dB
Signal to noise ratio Better than 60dB Power source AC: 110/125/220V 50Hz
Turntable platter 12" (30.5 cm) Power consumption 7W
1 Ibs. 5 ozs. (0.6kg) Dimensions Approx: 17-1/2'"(W) x 5- 5/8"(H) x
Tone arm
Static-balance type
14-1/4"'(D)
Tracking error +1,5° (440 x 140 x 360 mm)
Tracking force range O-—4g. Weight Approx. 10 Ibs. 2 ozs. (4.6 kg)
* Specifications and design are subject to change without notice.
WM- 3157
