  • Page 1 M A N UA L...

  • Page 2: Certificate Of Conformity

    CHANGES OR MODIFICATIONS NOT APPROVED BY We hereby declare, that the device indicated below in its design and construction, is in conformity with the essential safety and health THORSIS TECHNOLOGIES VOID THE VALIDITY OF THE requirements of the EC Directive 2014/30/EU. DECLARATION.
  • Page 3 UK DECLARATION OF CONFORMITY CHANGES OR MODIFICATIONS NOT APPROVED Thorsis Technologies GmbH declares as manufacturer under sole responsibility, that the products down in the list complies with the BY THORSIS TECHNOLOGIES VOID THE VALIDITY requirements of following UK legislation: OF THE DECLARATION.

  • Page 4: Table Of Contents

    Table of Content INTRODUCTION ........5 INTEGRATION INTO ABB-FIM .

  • Page 5: Introduction

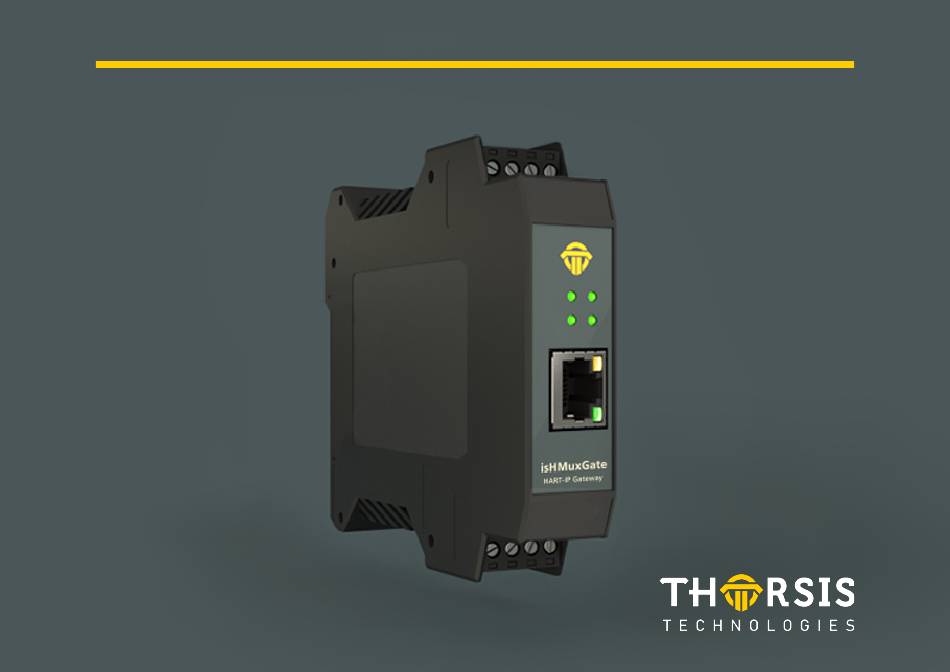

    Introduction The isHMuxGate is an Ethernet gateway for the connection of RS485-HART multiplexers to an Ethernet network. The gateway translates from the Ethernet HART-IP protocol into the RS485 protocols of different multiplexer vendors. Dimensional Drawing...

  • Page 6: Factory Reset

    This button is located behind a small hole next to the RJ45 connector. As a result of a firmware reset, the gateway will have its default isHMuxGate IP address 192.168.0.10 and all other settings are back to factory HART-IP Gateway...

  • Page 7: Technical Details

    Technical details isHMuxGate Order code 14400-0101 Processor ATSAMA5D27C 64 MByte or 128 MByte Flash 256 MByte Ethernet: 10 Mbit/s – 100 Mbit/s Transmission rate RS-485: 9,6 kBit/s, 19,2 kBit/s, 38,4 kBit/s Power supply 10,8V .. 30V DC Power consumption 50mA (typ. at 24V DC)

  • Page 8: Channel Assignment

    1.3.1 Channel assignment isHMuxGate HART-IP Gateway Power supply 10,8-30V DC max. 200mA Shield RS485 Shield...

  • Page 9: Connection Of One Or More Multiplexers

    1.3.2 Connection of one or more Multiplexers UNIT UNIT Multiplexer serial link connectors isHMuxGate HART-IP Gateway 2 4 8 16 32 2 4 8 16 32 switch...

  • Page 10: Hardware Installation

    Hardware installation Safety instructions Installation notes Installation, operation and maintenance must be made by qualified personnel only and in accordance with your local and national technical regulations and safety directives. Do not repair the device yourself, but replace it with an equivalent device. Repairs may be performed by the manufacturer only.

  • Page 11: Specific Conditions Of Use

    The gateway must be mounted vertically on a 35 mm DIN rail. The gateway isHMuxGate is an open system and in accordance with UL / CSA approval an “open type.” The gateway have to be installed in a control cabinet, appropriate housing or a closed electrical operation room accessible only to authorized maintenance staff.

  • Page 12: Web Interface

    The default address of the gateway is: 192.168.0.10 subnet mask 255.255.255.0 Use your favorite browser to go the IP Address of your isHMuxGate. You should see this website. This is an overview over the current status. Click on „Network Settings“ and you will get to the configuration mask.

  • Page 13: Update Of The Firmware

    Menu Firmware and select the file you want to flash. Click the Upload button and wait until a confirmation appears that the upload was successful. After the successful update, the isHMuxGate must be restarted by using the Restart- function in the Web interface. Soft-Restart To restart the gateway, go to the Restart menu and press the button Reboot.

  • Page 14: Password Protection

    Password protection To enable a global password protection for the isHMuxGate web interface, click on the Pass- word menu on the left. Activate the Password protection by clicking in the checkbox. Enter your password and repeat it in the field below.

  • Page 15: License Key

    License key In the standard version the isHMuxGate is capable of connecting But it is also possible to purchase the gateway in the standard one single HART multiplexer to an HART-IP network. version and - when needed - to purchase the license key at a later In order to connect more than one HART multiplexer to an time.

  • Page 16: Standard And Additional License Key

    Standard and Additional License key Additional license: Standard license: connecting more than one HART multiplexer to an HART-IP network connecting one single HART multiplexer to an HART-IP network HART Field device Multiplexer Multiplexer isHMuxGate isHMuxGate HART-IP Gateway HART-IP Gateway Multiplexer...

  • Page 17: Mux Mode

    Mux-Mode Usually the isHMuxGate translates all the protocols of different HART multiplexers into HART-IP. But it is also possible to disable the HART-IP protocol. In the transparent mode all the gateway does is to forward all incoming characters received on TCP side to RS485 and vica versa.

  • Page 18: Device List Settings

    Device List Settings Mux Types The isHMuxGate keeps track of all HART instruments wired to the connected HART multiplexers. The user can select between single drop and multidrop but he can also disable searching for HART devices at all. The isHMuxGate contains a list with known HART multiplexers.

  • Page 19: Multiplexer List

    3.10 Multiplexer List On this page the isHMuxGate shows all HART multiplexers connected to this gateway. The number of multiplexers shown here depends on the „Multiplexer search range“ in the RS485 settings (see chapter 3.7 „RS 485 Settings“ on page 17).

  • Page 20: Device List

    3.11 Device List On this page the isHMuxGate shows the HART devices currently connected to the HART multiplexers.

  • Page 21: Integration Into Abb-Fim

    Integration into the ABB FIM Setup Installation The hardware supplied also includes a USB stick containing the necessary installation files (zip.). In the first step, please install the following program file after unpacking: “HMUXGate FDI CommServer Setup.msi”. Start of the Installation: End of the Installation: Please check the correct installation of the HMuxGate CommunicationServer on your computer.

  • Page 22: Manage Certificates

    Manage Certificates Start the ABB Field Information Manager Select the “Own Certificate” tab and mark the “ABB Field Informa- Open the settings and select “CLIENT/SERVER SETTINGS”: tion Manager” certificate, then click on the upload icon. Store the certificate on the desktop, for example:...
  • Page 23 Now copy the certificate from the desktop and into the directory: C:\ProgramData\Thorsis Technologies\HMuxGateFdiCommServer\TrustedCertificates: Copy the certificate from the HMuxGate FDI CommServer from the directory: C:\ProgramData\Thorsis Technologies\HMuxGateFdiCommServer\CertificateStore\certs: And place it on the desktop, for example:...
  • Page 24 Open the FIM settings and select “CLIENT/SERVER SETTINGS” The certificate has now been saved. Select the „Trusted Certificates“ tab and select the „+“ symbol on the left and then choose the „HMuxGateFdiCommServer“ certificate from the desktop: And confirm with „ADD“...

  • Page 25: Installation Of Fdi Packages

    Installation of FDI Packages After installing the certificates, start the ABB FIM to add the two packages supplied on the stick to the device catalog. • Thorsis.HartIpMultiplexerFimlet.1.0.5.fimlet¹ • Thorsis.HMuxGate_FDI_Communication_Server.1.0.5.HART.fdix¹ When FIM is started, Press the “Import” button: open the device catalog: ¹...
  • Page 26 Select the two files for the import: When the import is done, a message indicates the status:...

  • Page 27: Adding The Communication Server

    Adding the Communication Server Close the device catalog and switch to Topology and Click “OK” to confirm the successful addition of the Thorsis HART click the “Add Server” button in FIM’s main window: MuxGate Communication Server. Select the Thorsis HMuxGate Communication Server and set the IP address to “localhost”.
  • Page 28 The Thorsis HMuxGate server can now be seen in TOPOLOGY: The “Add HMuxGate” button must now be selected: Right-click to open the window “DEVICE SETTINGS” WINDOW: Enter the IP address of the Thorsis HMuxGate here:...
  • Page 29 This window with the active HMuxGate is displayed as confirmation:...
  • Page 30 Start a hardware scan to detect connected devices and/or change The active HMuxGates and HART multiplexers are found and listed. settings for the communication server: The connected HART devices are displayed under the modules.
  • Page 31 You can then use the HART Device Package to parameterize or monitor the devices online...

  • Page 32: Fdt / Hmuxgate Dtm

    FDT / HMuxGate DTM Setup Installation The hardware supplied also includes a USB stick containing the necessary installation files (zip.). In the first step, please install the following program file after unpacking: “HMUXGate DTMs Setup.msi”.

  • Page 33: Start Fdt Frame And Update The Device Catalog

    Start FDT Frame and update the device catalog...

  • Page 34: Inset The Hmuxgate

    Insert the HMuxGate The FDT Frame Application PACTware is used in this manual as an example. Once you have opened your FDT Frame Application and started a new project you can add the HMuxGate as device.
  • Page 35 Before you can go online with the new device, you still need to enter the IP address of the isHMuxGate. In order to do so, select the Parameter menu item from the context menu.

  • Page 36: Enter The Ip Address

    If an HMuxGate is present in the network, it is displayed in the address bar of the parameter window. If there is no isHMuxGate connected to the network, you can just enter the IP address manually into the address bar.
  • Page 37 For informational purposes you can press the button (Show Connected Multiplexers). This will present a list of all HART multiplexers currently connected to the selected isHMuxGate.

  • Page 38: Topology Scan

    Topology Scan With the help of the Topology scan, all connected multiplexers are displayed. The modules/channels are also searched for connected devices.

  • Page 39: Offline View And Online View

    Offline view and Online view If the appropriate device DTM is installed, you can work with the device DTM offline or online as usual.

  • Page 40: Document History

    20.02.2024 adding ABB-FIM Configuration 12.03.2024 adding FDT DTM Configuration 1.2.5 10.29.2024 layout adjustments © last change on 4. November 2024 Thorsis Technologies GmbH +49 391 544 563-1000 Oststr. 18 +49 391 544 563-9099 39114 Magdeburg info@thorsis.com Germany www.thorsis.com...
