Asus RS521A-E12 Series User Manual

Asus RS521A-E12 Series User Manual

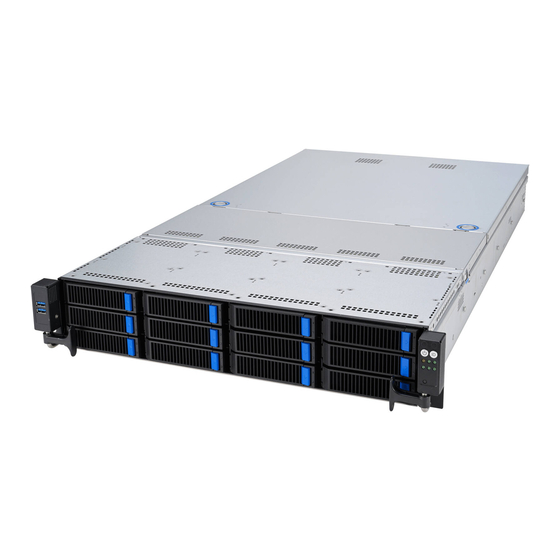

2u rackmount server
Hide thumbs

Advertisement

Quick Links

Download this manual
RS521A-E12 Series
RS521A-E12-RS12U
2U Rackmount Server
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS521A-E12 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Asus RS521A-E12 Series

Summary of Contents for Asus RS521A-E12 Series

  • Page 1 RS521A-E12 Series RS521A-E12-RS12U 2U Rackmount Server User Guide...
  • Page 2 ASUSTeK COMPUTER INC. (“ASUS”). ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no...

  • Page 3: Table Of Contents

    Contents Safety information ..................... vii About this guide ......................xi Chapter 1: Product Introduction System package contents ................. 1-2 Serial number label ..................1-3 System specifications ................1-4 Front panel features ................... 1-7 Rear panel features ..................1-8 Internal features ..................1-9 LED information ..................
  • Page 4 Internal LEDs .................... 3-11 Internal connectors .................. 3-14 Chapter 4: BIOS Setup Managing and updating your BIOS ............4-2 4.1.1 ASUS CrashFree BIOS 3 utility........... 4-2 4.1.2 ASUS EZ Flash Utility ..............4-3 BIOS setup program .................. 4-4 4.2.1 BIOS menu screen ..............4-5 4.2.2...
  • Page 5 4.2.4 Submenu items ................4-6 4.2.5 Navigation keys ................4-6 4.2.6 General help................4-6 4.2.7 Configuration fields ..............4-6 4.2.8 Pop-up window................4-6 4.2.9 Scroll bar ..................4-6 Main menu ....................4-7 Advanced menu ..................4-8 4.4.1 Trusted Computing..............4-8 4.4.2 Redfish Host Interface Settings...........
  • Page 6 Appendix K14PA-U24-T block diagram .................. A-2 Notices ........................A-3 Service and Support ....................A-8...

  • Page 7: Safety Information

    Safety information Electrical Safety • Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged. • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. •...

  • Page 8: Operation Safety

    Operation Safety • Any mechanical operation on this server must be conducted by certified or experienced engineers. • Before operating the server, carefully read all the manuals included with the server package. • Before using the server, ensure all cables are correctly connected and the power cables are not damaged.

  • Page 9: Restricted Access Location

    Restricted Access Location This equipment should only be installed in a Restricted Access Area where both these conditions apply: • Access can only be gained by skilled or instructed persons who have been instructed about the reasons for the restrictions applied to the area and about any precautions that shall be taken;...

  • Page 10: Optical Drive Safety Information

    Optical Drive Safety Information Laser Safety Information CLASS 1 LASER PRODUCT To prevent exposure to the optical drive’s laser, do not attempt to disassemble or repair the optical drive by yourself. For your safety, contact a professional technician for assistance. Informations de sécurité...

  • Page 11: About This Guide

    About this guide Audience This user guide is intended for system integrators, and experienced users with at least basic knowledge of configuring a server. Contents This guide contains the following parts: Chapter 1: Product Introduction This chapter describes the general features of the server, including sections on front panel and rear panel specifications.
  • Page 12 Refer to the following sources for additional information, and for product and software updates. ASUS Control Center (ACC) user guide This manual tells how to set up and use the proprietary ASUS server management utility. Visit asuscontrolcenter.asus.com for more information. ASUS websites The ASUS websites provide updated information for all ASUS hardware and software products.

  • Page 13: Chapter 1: Product Introduction

    Chapter 1: Product Introduction Product Introduction This chapter describes the general features of the server. It includes sections on front panel and rear panel specifications.

  • Page 14: System Package Contents

    System package contents Check your system package for the following items. Model Name RS521A-E12-RS12U Chassis ASUS R2P-E 2U Rackmount Chassis Motherboard ASUS K14PA-U24-T Server Board 12 x 3.5-inch Storage Device Trays or Dummy Trays Component 2 x 2.5-inch Storage Device Trays...

  • Page 15: Serial Number Label

    The product’s serial number contains 12 characters such as xxSxxxxxxxxx and printed on the sticker at the server's front cover. The correct serial number of the product is required if you need to request for support from the ASUS Technical Support team. RESET RS521A-E12-RS12U...

  • Page 16: System Specifications

    System specifications The ASUS RS521A-E12 Series features the ASUS K14PA-U24-T server board. The server supports AMD EPYC™ 9004/9005 Series processors plus other latest technologies through the chipsets onboard. Model Name RS521A-E12-RS12U Motherboard K14PA-U24-T 1 x Socket SP5 (LGA-6096) Generation AMD EPYC™ processors with AMD 3D V-Cache...
  • Page 17 1 x Port80 LED (Q-Code) 1 x Power Switch w/LED 1 x Location Switch w/LED 1 x Message LED TPM-SPI Module (optional) Security Options PFR Module (optional) OS Support Please find the latest OS support from https://www.asus.com/ (continued on the next page)
  • Page 18 Model Name RS521A-E12-RS12U Software ASUS Control Center (Classic) Management Out of Band Solution Remote On-Board ASMB11-iKVM for KVM-over-IP Management Regulatory Compliance CE, RCM, FCC (Class A) 840mm x 449mm x 88.1mm (2U) Dimension 33.07” x 17.68“ x 3.47” Net Weight Kg 17.95Kg (CPU, DRAM &...

  • Page 19: Front Panel Features

    Front panel features The barebone server displays a simple yet stylish front panel with easily accessible features. The power and reset buttons, LED indicators are located on the front panel. Refer to section 1.7 LED information for the LED descriptions. RESET 12 x 3.5”...

  • Page 20: Rear Panel Features

    Lan port 1 Management LAN port 1* • * This port is for ASUS ASMB11-iKVM only. • The Q-Code LED provides the most probable cause of an error code as a starting point for troubleshooting. The actual cause may vary from case to case.

  • Page 21: Internal Features

    Internal features The barebone server includes the basic components as shown. Redundant Power supply (hidden) 2 x 2.5“ storage device trays ASUS K14PA-U24-T Server Board SATA/SAS/NVMe back panel Front USB panel System fans Asset Tag (hidden) 12 x 3.5“ storage device...

  • Page 22: Led Information

    LED information 1.7.1 Front panel LEDs Location button Power button Message LED Storage device LAN LEDs access LED RESET RESET button RESET Icon Display status Description Power LED System power ON No activity Storage device access LED Blinking Read/write data into the storage device System is normal;...

  • Page 23: Storage Device Status Led

    1.7.2 Storage device status LED Red LED Green LED RESET Storage Device LED Description Storage device has failed Status (RED) Blinking RAID rebuilding or locating Storage device power ON Activity (GREEN) Blinking SATA/SAS storage device reading or writing data Storage device not found 1.7.3 LAN (RJ-45) LEDs Intel...

  • Page 24: Rear Panel Leds

    Dedicated Management LAN port (DM_LAN1) LED indications ACT/LINK LED SPEED LED ACT/LINK LED SPEED LED Status Description Status Description No link 10 Mbps connection GREEN Linked ORANGE 100 Mbps connection BLINKING Data activity GREEN 1 Gbps connection 1.7.4 Rear panel LEDs Q-Code LED Location button with LED Power button with LED...

  • Page 25: Q-Code Table

    1.7.5 Q-Code table Action PHASE POST CODE TYPE DESCRIPTION 0x01 Progress First post code 0x02 Progress Load BSP microcode 0x03 Progress Perform early platform Initialization SEC Start up Security Phase 0x04 Progress Set cache as ram for PEI phase 0x05 Progress Establish Stack 0x06...
  • Page 26 Action PHASE POST CODE TYPE DESCRIPTION 0x3B error The count of CCXs or cores provided by bootrom is not consistent 0x3C error Uncompressed image size doesn't match value in compressed header 0x3D error Compressed option used in case where not supported 0x3E error Fuse info on all dies don't match...
  • Page 27 Action PHASE POST CODE TYPE DESCRIPTION Bootloader detects BIOS request boot from SPI-ROM, which is unsupported 0x7D error for PSB. 0x7E error Requested fuse is already blown, reblow will cause ASIC malfunction 0x7F error Error with actual fusing operation 0x80 error (Local Master PSP on P1 socket) Error reading fuse info (Local Master PSP on P1 socket) Platform Vendor ID and/or Model ID binding...
  • Page 28 Action PHASE POST CODE TYPE DESCRIPTION 0xBB error BIOS load process fully complete 0xBC error Bootloader successfully release x86 0xBD error Early Secure Debug completed 0xBE error GetFWVersion command received from BIOS is completed 0xBF error SMIInfo command received from BIOS is completed 0xC0 error Successfully entered WarmBootResume()
  • Page 29 Action PHASE POST CODE TYPE DESCRIPTION 0x32 Progress CPU POST-Memory Initialization 0x33 Progress CPU Cache Initialization 0x34 Progress Application Processor(s) (AP) Initialization 0x35 Progress BSP Selection 0x36 Progress CPU Initialization 0x37 Progress Pre-memory NB Initialization 0x3B Progress Pre-memory SB Initialization 0x4F Progress DXE Initial Program Load(IPL)
  • Page 30 1-18...

  • Page 31: Chapter 2: Hardware Information

    Chapter 2: Hardware Information Hardware Information This chapter lists the hardware setup procedures that you have to perform when installing or removing system components.

  • Page 32: Chassis Cover

    Chassis cover 2.1.1 Removing the rear cover Remove the two (2) screws on both sides of the rear cover with a Phillips screwdriver. Push the buttons on both sides of the top cover to release the rear cover from the chassis.

  • Page 33: Removing The Mid Cover

    2.1.2 Removing the mid cover Remove the two (2) screws on both sides of the mid cover with a Phillips screwdriver. Push the buttons on both sides to release the mid cover from the chassis. Lift the mid cover from the chassis.

  • Page 34: Air Duct

    Air duct 2.2.1 Removing the air ducts Loosen the screws of the left and right riser brackets (A), then lift and remove both riser brackets (B). Lift and remove the CPU and DIMM air duct.

  • Page 35: Installing The Air Ducts

    Lift and remove the PSU air duct. 2.2.2 Installing the air ducts Replace the PSU air duct.
  • Page 36 Replace the CPU and DIMM air duct. Replace the left and right riser brackets, making sure both riser brackets are seated firmly in the chassis. Secure both left and right riser brackets using the respective thumbscrews.

  • Page 37: Central Processing Unit (Cpu)

    Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/ transit-related.
  • Page 38 Load plate Lift open the rail frame. External cap Rail frame External cap Slide the external cap out of the rail frame. Rail frame PnP cap...
  • Page 39 Slide the carrier frame with CPU into the rail frame, then remove the PnP cap. The carrier frame with CPU fits in only one correct orientation. DO NOT force the carrier frame with CPU into the rail frame. Gently close the rail frame just enough to let it sit on top of the CPU socket.
  • Page 40 Place the heatsink on the CPU socket and make sure the heatsink screws are aligned with the CPU socket. Partially tighten each of the six screws with a screwdriver in the order shown both in the illustration and on the heatsink just enough to attach the heatsink to the motherboard. When the six screws are attached, tighten them one by one in the same order to completely secure the heatsink.

  • Page 41: System Memory

    System memory The motherboard comes with 24 Double Data Rate 5 (DDR5) Dual Inline Memory Modules (DIMM) sockets. The figure illustrates the location of the DDR5 DIMM sockets: 2.4.1 Memory Configurations You may install 32GB, 64GB, 128GB, or 256GB RDIMM , and 32GB, 64GB, 128GB, or 256GB 3DS RDIMM into the DIMM sockets.
  • Page 42 • When mixing 2DPC and 1DPC, ensure that each channel’s total DIMM size should be equal. The DIMM size of 2DPC should equal to that of 1DPC, for example, if 2DPC is using a 32GB memory module (32GB * 2), then a 64GB memory module should be installed for 1DPC.

  • Page 43: Installing A Dimm

    2.4.2 Installing a DIMM Ensure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to both the motherboard and the components. DIMM notch Unlock a DIMM socket by pressing the retaining clips outward.

  • Page 44: Optional) Front Bezel

    (optional) Front bezel For extra security, a front bezel (purchased separately) can be installed to prevent unauthorized physical access to the hard drives and power button. If the system will be installed in a cabinet, make sure that you reserver a gap of at least 45 mm between the rack post and the cabinet door.

  • Page 45: Installing The Front Bezel

    2.5.2 Installing the front bezel Align the two (2) right notches on the front bezel to the notch holes on the right front panel. Attach the right side of the front bezel to the right front panel. 2-15...
  • Page 46 Push the left side of the front bezel towards the left USB panel. Make sure the two (2) left notches on the front bezel are aligned with the notch holes on the left USB panel, then push and attach the front bezel to the left USB panel. Make sure the bezel release latch is in the unlock state (pushed to the right) before attaching the front bezel to the left USB panel.
  • Page 47 Push the bezel release latch of the front bezel towards the left to lock the bezel. 2-17...

  • Page 48: Storage Devices

    Storage devices The system supports twelve (12) 3.5” hot-swap SATA/SAS/NVMe storage devices (up to 12 x NVMe/SATA/SAS). The storage device installed on the storage device tray connects to the motherboard SATA/SAS/NVMe ports via the SATA/SAS/NVMe backplane. Bay 1 Bay 2 Bay 4 Bay 5 Bay 7...
  • Page 49 Firmly hold the tray lever and pull the storage device tray out of the bay. Tray lever Place the storage device tray on a flat and stable surface. Prepare the 3.5” storage device and the bundled set of screws. Place the 3.5” storage device into the tray then secure it with four screws. 2-19...

  • Page 50: Installing A 2.5" Storage Device To The Front Bay

    Carefully insert the tray and push it all the way to the depth of the bay (A). Lock the secure tab to secure the drive tray in place (B). Repeat steps 1 to 6 to install the other 3.5” storage devices. 2.6.2 Installing a 2.5"...
  • Page 51 Place the storage device tray on a flat and stable surface. Prepare the 2.5” storage device and the bundled set of screws. Place the 2.5” storage device into the tray then secure it with four screws. Carefully insert the tray and push it all the way to the depth of the bay (A). Lock the secure tab to secure the drive tray in place (B).

  • Page 52: Installing A 2.5" Storage Device To The Rear Bay

    2.6.3 Installing a 2.5” storage device to the rear bay Press the spring lock then pull the tray lever outward to Tray lever Spring lock release the storage device tray. The storage device tray ejects slightly after you pull out the lever. Firmly hold the tray lever and pull the storage device tray out of the bay.

  • Page 53: Expansion Slot

    Expansion slot The barebone server comes with a maximum of five (5) PCIE slots. These slots are pre- installed with two (2) riser card brackets for installing PCIE expansion cards. You need to remove these expansion card brackets if you want to install PCIE expansion cards. Riser card bracket 2 Riser card bracket 1 Slot 4...

  • Page 54: Installing An Expansion Card To The Left Pcie Riser Card Bracket

    2.7.1 Installing an expansion card to the left PCIe riser card bracket The pre-installed left PCIe riser card bracket on the GENZPCIE1 slot has two PCIe x16 slots. The two PCIe x16 slots provides x16 Gen4 links. To install PCIe x16 (Gen4 x16 link) proprietary cards, such as a graphics card to the left PCIe riser card bracket: Loosen the thumbscrew (A) securing the left PCIe riser card bracket to the chassis, then lift the left PCIe riser card bracket upwards (B) out of the chassis to detach it from...
  • Page 55 Install your expansion card to the PCIe x16 slot on the left PCIe riser card bracket (A), then secure your expansion card to the PCIe riser card bracket using the bundled screws (B). The illustration below is an example of a graphics card. The amount of screws required may vary between expansion cards, only secure a bundled screw if a screw hole on the expansion card is aligned with the screw hole on the PCIe riser card.
  • Page 56 Align the left PCIe riser card bracket to the notch holes on the chassis and the GENZPCIE1 slot on the motherboard. Please refer to the illustration below for the locations of the notch holes on the chassis. Ensure that no cables are below or in the way of the PCIe riser card bracket when installing it to the chassis.

  • Page 57: Installing An Expansion Card To The Right Pcie Riser Card Bracket

    2.7.2 Installing an expansion card to the right PCIe riser card bracket The pre-installed right PCIe riser card bracket on the GENZPCIE2 slot has three PCIe x16 slots, two PCIe x16 slots and one PCIe x8 slot. The two PCIe x16 slots provides x16 Gen4 links.
  • Page 58 Prepare your expansion card and flip the right PCIe riser card bracket over. Flip the metal bracket lock open (A) then slide the two metal brackets out of the right PCIe riser card bracket (B) and remove them. Install your expansion card to the PCIe x16 slot on the right PCIe riser card bracket (A), then secure your expansion card to the PCIe riser card bracket using the bundled screws (B).
  • Page 59 Once your expansion card is installed, flip the metal bracket lock back to secure the expansion card to the right PCIe riser card bracket. Align the right PCIe riser card bracket to the notch hole on the rear of the chassis and the GENZPCIE2 slot on the motherboard.
  • Page 60 Push the right PCIe riser card bracket down until it is seated firmly in the chasiss. Ensure that no cables are below or in the way of the PCIe riser card bracket when installing it to the chassis. Secure the right PCIe riser card bracket with the two (2) thumbscrews. Replace the PSU airduct.

  • Page 61: Installing An Hba/Raid Card To The Right Pcie Riser Card Bracket

    2.7.3 Installing an HBA/RAID card to the right PCIe riser card bracket To install an HBA/RAID card to the right PCIe riser card: Follow step 1 of the Installing an expansion card to the right PCIe riser card bracket section to remove the right PCIe riser card bracket. Prepare your HBA/RAID card and flip the right PCIe riser card bracket over.
  • Page 62 Connect the MiniSAS to Slimline SAS to the HBA/RAID card. Follow steps 6 to 7 of the Installing an expansion card to the right PCIe riser card bracket section to reinstall the right PCIe riser card bracket to the system. 2-32...

  • Page 63: Installing An Ocp 3.0 Card To The Ocp 3.0 Slot

    2.7.4 Installing an OCP 3.0 card to the OCP 3.0 slot To install the OCP 3.0 card to the server system: Remove the screw securing the metal bracket of the OCP 3.0 slot (A), then remove the metal bracket (B). Insert and push the OCP 3.0 card all the way into the OCP 3.0 slot (A), then secure the OCP 3.0 card using the thumbscrew (B).

  • Page 64: Installing An M.2 (Ngff) Card

    2.7.5 Installing an M.2 (NGFF) card You may install an M.2 card (supports up to 22110) to the onboard M.2 (NGFF) slot on the motherboard. Both NGFF1 and NGFF2 slots support x4 PCIe link. If one of NGFF1 or NGFF2 slots are occupied, both slots will support SATA link.

  • Page 65: Optional) Installing The Pfr Module

    • The illustration below is for reference only. • For more information or assistance, please refer to www.asus.com. Locate the PFR module connector on your motherboard. Align and connect the PFR module to the PFR module connector. Push the PFR module down so that it is seated securely on the PFR module connector, then secure it using a screw.

  • Page 66: Configuring An Expansion Card

    2.7.7 Configuring an expansion card After installing the expansion card, configure it by adjusting the software settings. Turn on the system and change the necessary BIOS settings, if any. Refer to the BIOS Setup chapter for more information on BIOS setup. Assign an IRQ to the card.

  • Page 67: Cable Connections

    Cable connections • The bundled system cables are pre-connected before shipment. You do not need to disconnect these cables unless you are going to remove pre-installed components to install additional devices. • Refer to the Motherboard Information chapter for detailed information on the connectors.

  • Page 68: Backplane Cabling

    Backplane cabling Connects to HBA/RAID card or to the MCIO7~8 connectors on the motherboard for SAS/SATA support on Bay 1 to Bay 12. SLIMSAS3 SLIMSAS2 SLIMSAS1 MCIO_P5 HDD_LED1 MCIO_P2 MCIO_P1 MCIO_P4 MCIO_P6 PWR1 PWR2 VPP_I2C1 MG2_VID1_SEL1 MCIO_P3 Connects to MCIO1~6 connectors on the motherboard for NVMe support on Bay 1 to Bay 12. SLED1 SLED4 SLED7...

  • Page 69: Storage Device Configuration And Cabling

    2.10 Storage device configuration and cabling This section illustrates some storage configurations that is recommended with your server system. Before you start installing or removing the storage device cables, ensure that you have installed the correct storage devices into the supported bays. Refer to section Storage Devices for details on how to install storage devices.

  • Page 70: 12 X Nvme/Sata/Sas Storage Device Configuration And Cabling

    2.10.1 12 x NVMe/SATA/SAS storage device configuration and cabling The illustrations in this section are for reference only and may vary between models. Install the storage devices into the supported bays. Refer to section Storage Devices for details on how to install storage devices. NVMe/SATA/SAS NVMe/SATA/SAS NVMe/SATA/SAS...

  • Page 71: Motherboard

    2.11 Motherboard 2.11.1 Removing the motherboard To remove the system motherboard: Disconnect the cables from the motherboard and remove any installed components on the motherboard. Take a photo or make a note of which components are removed, which cables are disconnected, and which connectors the cables were connected to.

  • Page 72: Installing The Motherboard

    2.11.2 Installing the motherboard To install the system motherboard: Place the motherboard into the chassis and ensure the screw holes on the motherboard are aligned to the screw holes in the chassis, then secure the motherboard to the chassis using the screws removed previously. Reinstall removed components and reconnect the cables to the motherboard.

  • Page 73: Removable/Optional Components

    2.12 Removable/optional components The following sections describe the installation or removal instructions for the following removable/optional components: System fans Redundant power supply module CMOS battery Ensure that the system is turned off before removing any components. You may need to remove previously installed component or factory shipped components when installing optional components.
  • Page 74 To reinstall the system fans: Prepare the fan with the same model and size. Install the fan to the fan cage. The fan can only be installed in one direction. If the fan cannot be installed, turn it around and try again. 2-44...

  • Page 75: Redundant Power Supply Module

    2.12.2 Redundant power supply module To replace a failed redundant power supply module: Lift up the power supply module lever. Hold the power supply module lever and press the PSU latch, then pull the power supply module out of the system chassis. Module lever PSU latch Prepare the replacement power supply module.

  • Page 76: Cmos Battery

    2.12.3 CMOS battery To replace a CMOS battery: Locate and remove the CMOS battery. CMOS battery Place the replacement CMOS battery into the battery compartment. 2-46...

  • Page 77: Rail Kit Options

    Rail Kit Options This server system supports the rail kit options listed below. For more information on rail kit installation, refer to corresponding documentation on the ASUS support site or on the official product site for this server system. •...
  • Page 78 2-48...

  • Page 79: Chapter 3: Motherboard Information

    Chapter 3: Motherboard Information Motherboard Information This chapter includes the motherboard layout and brief descriptions of the jumpers and internal connectors.

  • Page 80: Motherboard Layout

    Motherboard layout...

  • Page 81: Layout Contents

    Layout contents Central Processing Unit (CPU) Page LGA 6096 sockets (CPU1) Dual Inline Memory Module (DIMM) Page DDR5 sockets Jumpers Page Clear RTC RAM (3-pin CLRTC1) VGA Controller setting (3-pin VGA_SW1) Baseboard Management Controller setting (3-pin BMC_EN1) DMLAN setting (3-pin DM_IP_SEL1) IPMI SW setting (3-pin IPMI_SW1) Smart Ride Through (SmaRT) setting (3-pin SMART_PSU1) LAN Controller settings (3-pin LAN_SW1-2)
  • Page 82 Internal connectors Page MCIOPCIE connectors (MCIOPCIE1-8) 3-14 SATA connector (SATA12) 3-14 USB 3.2 Gen 1 connector (FP_USB3; TYPEA_U3) 3-15 Chassis Intrusion (2-pin INTRUSION1) 3-15 Serial Port connector (10-1 pin COM1) 3-16 System Fan connectors (6-pin FRNT_FAN1-8) 3-16 TPM connector (14-1 pin TPM1) 3-17 M.2 (NGFF) connector (NGFF1-2) 3-17...

  • Page 83: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with a surface mount SP5 socket designed for the AMD EPYC™ 7004 Series Family processors. Dual Inline Memory Module (DIMM) The motherboard comes with 24 Double Data Rate 5 (DDR5) Dual Inline Memory Modules (DIMM) sockets.

  • Page 84: Jumpers

    Jumpers Clear RTC RAM (3-pin CLRTC1) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
  • Page 85 VGA controller setting (3-pin VGA_SW1) This jumper allows you to enable or disable the onboard VGA controller. Set to pins 1–2 to activate the VGA feature. Baseboard Management Controller setting (3-pin BMC_EN1) This jumper allows you to enable (default) or disable on-board BMC. Ensure to set this BMC jumper to enabled to avoid system fan control and hardware monitor error.
  • Page 86 DMLAN setting (3-pin DM_IP_SEL1) This jumper allows you to select the DMLAN setting. Set to pins 2-3 to force the DMLAN IP to static mode (IP=10.10.10.10, submask=255.255.255.0). IPMI SW setting (3-pin IPMI_SW1) This jumper allows you to select which protocol in the GPU sensor to function.
  • Page 87 Smart Ride Through (SmaRT) setting (3-pin SMART_PSU1) This jumper allows you to enable or disable the Smart Ride Through (SmaRT) function. This feature is enabled by default. Set to pins 2-3 to disable it. When enabled, SmaRT allows uninterrupted operation of the system during an AC loss event. LAN Controller settings (3-pin LAN_SW1-2) These jumpers allow you to enable or disable the onboard LAN_SW1 or LAN_SW2.
  • Page 88 Heatsink Type setting (3-pin HS_TYPE1) This jumper should be set according to the type of heatsink installed. NCSI Device setting (3-pin NCSI_SEL1) This jumper allows you to select the NCSI device. 3-10...

  • Page 89: Internal Leds

    Internal LEDs Standby Power LED (SBPWR1) The motherboard comes with a standby power LED. The green LED lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component.
  • Page 90 Message LED (MESLED1) This onboard LED lights up to red when there is a BMC event log is generated. Storage Device Activity LED (HDDLED1) This LED is for the storage devices connected to the onboard SATA, or SATA/SAS add-on card. The read or write activities of any device connected to the onboard SATA, or SATA/SAS add-on card causes the rear panel LED to light up.
  • Page 91 OCP 3.0 Operation Normal LED (G_LED1) The OCP 3.0 operation normal LED lights up to indicate that OCP 3.0 is functional. OCP 3.0 Power Fail LED (R_LED1) The OCP 3.0 power fail LED lights up to indicate that OCP 3.0 has encountered a power fail error.

  • Page 92: Internal Connectors

    Internal connectors MCIOPCIE connectors (MCIO1-8) Connects the PCIe or SATA signal to the riser card or the backplane. MCIO1~6 supports PCIe signals, and MCIO7~8 supports SATA signals only SATA connector (SATA12) Connects SATA signal to backplane to support SATA drives. 3-14...
  • Page 93 USB 3.2 Gen 1 connector (FP_USB3; TYPEA_U3) This connector allows you to connect a USB 3.2 Gen 1 module for additional USB 3.2 Gen 1 ports on the front panel. The USB 3.2 Gen 1 connector provides data transfer speeds of up to 10 Gb/s. The Type-A connector allows you to directly connect a USB flash drive.
  • Page 94 Serial Port connector (10-1 pin COM1) This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis. The COM module is purchased separately. System Fan connectors (6-pin FRNT_FAN1-8) The fan connectors support cooling fans of 0.8A–1.0A (12 W max.) or a total of 6.4 A–8.0 A (96 W max.) at +12V.
  • Page 95 TPM connector (14-1 pin TPM1) This connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. M.2 (NGFF) connector (NGFF1-2) These connectors allow you to install M.2 devices.
  • Page 96 Power connectors (24-pin EATXPWR; 8-pin EATX12V1; 4-pin EATX12V2) These connectors are for the power supply plugs that connects to the power board. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit. DO NOT connect VGA cards to these connectors.
  • Page 97 microSD Card slot (MSD1) Your motherboard supports SD Memory Card v2.00 (SDHC) / v3.00 (SDXC). Disconnect all power (including redundant PSUs) from the existing system before you add or remove a Memory Card, then reboot the system to access the Memory Card. Some memory cards may not be compatible with your motherboard.
  • Page 98 System Panel connector (10-1 pin SYS_PANEL1; 14-1 pin SYS_PANEL2) This connector supports several chassis-mounted functions. • System power LED (POWERLED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
  • Page 99 BMC Debug UART connector (3-pin BMC_DEBUGUART1) This connector is used for reading the BMC UART Debug log. Liquid connector (14-1 pin LIQUID_CONN1) This connector is used for detecting the pump speed of the water cooling system. 3-21...
  • Page 100 (power supply unit) to read PSU information. Devices communicate with an SMBus host and/or other SMBus devices using the SMBus interface. This connector functions only when you enable ASUS ASMB11. Platform Firmware Resilience (PFR) module connector (ROT_CON) This connector allows you to connect a PFR module to enable platform firmware resilience functions.
  • Page 101 Front BP SMBus Protocol connector (10-1 pin BP_I2C1) This connector is used for sensor readings. Internal BP SMBus Protocol connector (18-1 MG9098_CON1) This connector is used for sensor readings. 3-23...
  • Page 102 3-24...

  • Page 103: Chapter 4: Bios Setup

    Chapter 4: BIOS Setup BIOS Setup This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

  • Page 104: Managing And Updating Your Bios

    4.1.1 ASUS CrashFree BIOS 3 utility The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using a USB flash drive that contains the updated BIOS file.

  • Page 105: Asus Ez Flash Utility

    4.1.2 ASUS EZ Flash Utility The ASUS EZ Flash Utility feature allows you to update the BIOS without having to use a DOS-based utility. Before you start using this utility, download the latest BIOS from the ASUS website at www.asus.com.

  • Page 106: Bios Setup Program

    • The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard.

  • Page 107: Bios Menu Screen

    4.2.1 BIOS menu screen Menu items Menu bar Configuration fields General help Navigation keys 4.2.2 Menu bar The menu bar on top of the screen has the following main items: For changing the basic system configuration Main Advanced For changing the advanced system settings For changing the chipset settings Chipset Security...

  • Page 108: Menu Items

    4.2.3 Menu items The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items. The other items (such as Advanced) on the menu bar have their respective menu items. 4.2.4 Submenu items A solid triangle before each item on any menu screen means that the item has a submenu.

  • Page 109: Main Menu

    Main menu When you enter the BIOS Setup program, the Main menu screen appears. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, and language settings. System Language [English] Allows you to select the system default language.

  • Page 110: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 4.4.1 Trusted Computing Security Device Support [Disabled] Allows you to enable or disable the BIOS support for security device.

  • Page 111: Redfish Host Interface Settings

    4.4.2 Redfish Host Interface Settings Redfish [Enabled] Allows you to enable or disable Redfish. Configuration options: [Disabled] [Enabled] The following items appear only when Redfish is set to [Enabled]. Authentication mode [Basic Authentication] Allows you to select the authentication mode. Configuration options: [Basic Authentication] [Session Authentication] Redfish BMC Settings IP address...

  • Page 112: Amd Cbs

    4.4.3 AMD CBS CPU Common Options Performance Allows you to configure performance options. REP-MOV/STOS Streaming [Enabled] Allows you to enable or disable the use of non-caching streaming stores for large sizes. Configuration options: [Disabled] [Enabled] Prefetcher Settings Allows you to configure prefetcher options. Core Watchdog Allows you to configure core watchdog options.
  • Page 113 Streaming Stores Control [Auto] Configuration options: [Disabled] [Enabled] [Auto] Local APIC Mode [Auto] Configuration options: [Compatibility] [xAPIC] [x2APIC] [Auto] ACPI _CST C1 Declaration [Auto] Determines whether or not to declare the C1 state to the OS. Configuration options: [Disabled] [Enabled] [Auto] ACPI CST C2 Latency [100] Enter in microseconds (decimal value).
  • Page 114 AVX512 [Auto] Configuration options: [Disabled] [Enabled] [Auto] Enhanced Rep Movs Stos B [Auto] Configuration options: [Disabled] [Enabled] [Auto] MONITOR and MWAIT Disable [Auto] When this option is enabled, MONITOR, MWAIT, MONITORX, and MWAITX opcodes become invalid. Configuration options: [Disabled] [Enabled] [Auto] CPU Speculative Store Modes [Auto] [Balanced] Store instructions may delay sending out their invalidations to...

  • Page 115: Df Common Options

    Latency Under Load (LUL) [Auto] Enabling may improve latency in heavy BW scenarios. May slightly reduce peak CCD Configuration options: [Disabled] [Enabled] [Auto] Core Trace Dump Enable [Disable] Allows you to enable or disable Core Trace Dump Feature. Configuration options: [Disable] [Enable] DF Common Options Memory Addressing Allows you to configure memory addressing options.

  • Page 116: Umc Common Options

    CCM Throttler [Auto] Limit peak CCM throughput. Configuration options: [Disabled] [Enabled] [Auto] The following items appear only when CCM Throttler is set to [Enabled]. MemReqBandwidthControl [FineThrotHeavy] [0] If CCM Throttler enabled, limit level. Value 0 to 31 where 31+1 = 100% BW. Configuration options: [0] - [19] MemReqBandwidthControl [FineThrotLight] [0] If CCM Throttler enabled, limit level.

  • Page 117: Nbio Common Options

    NBIO Common Options SMU Common Options Allows you to configure SMU Common options. NBIO RAS Common Options Allows you to configure NBIO RAS Common options. PCIE Allows you to configure PCIE options. nBif Common Options Allows you to configure nBif Common options. IOMMU/Security Allows you to configure IOMMU/Security options.
  • Page 118 UART Configuration Options Allows you to configure UART options. FCH RAS Options Allows you to configure FCH RAS options. Miscellaneous Options Allows you to configure miscellaneous FCH options. NTB Common Options Socket-0 P0 NTB Enable [Auto] Enable NTB on Socket-0 P0 Link. Configuration options: [Disable] [Enable] [Auto] The following items appear only when Socket-0 P0 NTB Enable is set to [Enable].
  • Page 119 Soc Miscellaneous Control ABL Console Out Control [Auto] [Disable] Disable ConsoleOut Function for ABL. [Enable] Enable ConsoleOut Function for ABL. [Auto] Keep default behavior. The following items appear only when ABL Console Out Control is set to [Enable]. ABL Console Out Serial Port [Auto] [eSPI UART] Enable serial port through eSPI UART.
  • Page 120 PSP error injection support [False] Enable EINJ support. Configuration options: [False] [True] Firmware Anti-rollback (FAR) Allows you to configure Firmware Anti-rollback (FAR) options. CXL Common Options For an AVL of components that support CXL, please contact your sales representative. CXL Control [Auto] Force enablement of CXL on all ports.

  • Page 121: Onboard Lan Configuration

    CXL Memory Online/Offline [Disabled] All 4 Plink slots support memory online/offline. Only slot4 of Amber supports hot plug. CXL memory interleaving automatically disabled globally when this CBS is enabled. Configuration options: [Disabled] [Enabled] Override CXL Memory Size [Auto] Configuration options: [32GB] [64GB] [128GB] [Auto] 4.4.4 Onboard LAN Configuration Onboard I350 LAN Configuration...

  • Page 122: Serial Port Console Redirection

    4.4.6 Serial Port Console Redirection COM1/COM2(SOL) Console Redirection [Disabled] Allows you to enable or disable the console redirection feature. Configuration options: [Disabled] [Enabled] The following item appears only when Console Redirection is set to [Enabled]. Console Redirection Settings These items become configurable only when you enable the Console Redirection item. The settings specify how the host computer and the remote computer (which the user is using) will exchange data.
  • Page 123 Parity [None] A parity bit can be sent with the data bits to detect some transmission errors. [Mark] and [Space] parity do not allow for error detection. [None] None [Even] parity bit is 0 if the num of 1’s in the data bits is even [Odd] parity bit is 0 if num of 1’s in the data bits is odd [Mark]...

  • Page 124: Cpu Configuration

    The following item appears only when Console Redirection is set to [Enabled]. Console Redirection Settings These items become configurable only when you enable the Console Redirection item. The settings specify how the host computer and the remote computer (which the user is using) will exchange data.

  • Page 125: Pci Subsystem Settings

    4.4.8 PCI Subsystem Settings Allows you to configure PCI, PCI-X, and PCI Express Settings. PCI Latency Timer [32 PCI Bus Clocks] Value to be programmed into PCI Latency Timer Register. Configuration options: [32 PCI Bus Clocks] [64 PCI Bus Clocks] [96 PCI Bus Clocks] [128 PCI Bus Clocks] [160 PCI Bus Clocks] [192 PCI Bus Clocks] [224 PCI Bus Clocks] [248 PCI Bus Clocks] PCI-X Latency Timer [64 PCI Bus Clocks]...

  • Page 126: Pci Express Settings

    Re-Size BAR Support [Disabled] If the system has Resize BAR capable PCIe Devices, this option enables or disable Resize BAR Support (only if system supports 64 bit PCI Decoding). Configuration options: [Disabled] [Enabled] To enable Resize BAR Support to fully harness GPU memory, pleas navigate to Boot section and disable CSM (Compatibility Support Module).
  • Page 127 Extended Synch [Disabled] If this item is enabled, it will allow generation of Extended Synchronization patterns. Configuration options: [Disabled] [Enabled] Link Training Retry [5] Allows you to define the number of Retry Attempts software will take to retrain the link if previous training attempt was unsuccessful.
  • Page 128 IDO Request Enable [Disabled] If supported by hardware and set to [Enabled], this permits setting the number of ID- Based Ordering (IDO) bit (Attribute[2]) requests to be initiated. Configuration options: [Disabled] [Enabled] IDO Completion Enable [Disabled] If supported by hardware and set to [Enabled], this permits setting the number of ID- Based Ordering (IDO) bit (Attribute[2]) requests to be initiated.
  • Page 129 PCI Hot-Plug Settings The items in this submenu allow you change PCI Express Hot-Plug and Standard HP Controller Settings. BIOS Hot-Plug Support [Enabled] If this item is enabled, it allows the BIOS built-in Hot-Plug support to be used.. Use this feature if OS does not support PCI Express and SHPC hot-plug natively.

  • Page 130: Usb Configuration

    4.4.9 USB Configuration Legacy USB Support [Enabled] [Disabled] USB devices are available only for EFI applications. [Enabled] Enables the support for USB devices on legacy operating systems (OS). [Auto] Automatically disables the Legacy USB support if USB devices are not connected.

  • Page 131: Nvme Configuration

    Ipv4 HTTP Support [Disabled] Enables or disables the Ipv4 HTTP Boot Support. If disabled, Ipv4 HTTP boot option will not be created. Configuration options: [Disabled] [Enabled] Ipv6 PXE Support [Disabled] Enables or disables the Ipv6 PXE Boot Support. If disabled, Ipv6 PXE boot option will not be created.

  • Page 132: Sata Configuration

    Run Device Self Test Press <Enter> to perform device self test for the corresponding Option and Action selected by the user. Pressing the <ESC> key will abort the test. The results shown below is the most recent result logged in the device. 4.4.12 SATA Configuration This page will display the SATA controller and drive information.

  • Page 133: Apm Configuration

    4.4.14 APM Configuration Allows you to configure the Advance Power Management (APM) settings. Restore AC Power Loss [Last State] When set to [Power Off], the system goes into off state after an AC power loss. When set to [Power On], the system will reboot after an AC power loss. When set to [Last State], the system goes into either off or on state, whatever the system state was before the AC power loss.

  • Page 134: T1S Auth

    4.4.16 T1s Auth Allows you to configure the Server Certificate Authority (CA). Server CA Configuration / Client Cert Configuration Enroll Cert Allows you to enroll a certificate using a certificate file or manually input a certificate GUID. Enroll Cert Using File Allows you to enroll a certificate using a certificate file.

  • Page 135: Third-Party Uefi Driver Configurations

    4.4.18 Third-party UEFI driver configurations Additonal configuration options for third-party UEFI drivers installed to the system will appear in the bottom of the Advanced menu, in the section marked red in the screenshot below. 4-33...

  • Page 136: Chipset Menu

    Chipset menu The Chipset menu items allow you to change the Chipset settings. PCIe Compliance Mode [Off] Configuration options: [Off] [On] PCH Configuration SB Debug Configuration This item displays options for SB Debug Features. System Agent (SA) Configuration Socket 1 Information This item displays the memory information on Socket 1.

  • Page 137: Security Menu

    Security menu This menu allows a new password to be created or a current password to be changed. The menu also enables or disables the Secure Boot state and lets the user configure the System Mode state. Administrator Password To set an administrator password: Select the Administrator Password item and press <Enter>.

  • Page 138: User Password

    User Password To set a user password: Select the User Password item and press <Enter>. From the Create New Password box, key in a password, then press <Enter>. Confirm the password when prompted. To change a user password: Select the User Password item and press <Enter>. From the Enter Current Password box, key in the current password, then press <Enter>.
  • Page 139 Reset to Setup Mode Delete all Secure Boot key databases from NVRAM. Expert Key Management The Key Management item allows you to modify Secure Boot variables and set Key Management page. Factory Key Provision [Enabled] Allows you to provision factory default Secure Boot keys after the platform resets and while the system is in Setup Mode.

  • Page 140: Boot Menu

    • To select the boot device during system startup, press <F8> when ASUS Logo appears. • To access Windows OS in Safe Mode, please press <F8> after POST.

  • Page 141: Tool Menu

    IPMI Hardware Monitor Allows you to run the IPMI hardware monitor. Start ASUS EzFlash Allows you to run ASUS EzFlash BIOS ROM Utility when you press <Enter>. Refer to the ASUS EzFlash Utility section for details. ASUS Storage Viewer Allows you to run ASUS Storage Viewer.

  • Page 142: Event Logs Menu

    Event Logs menu The Event Logs menu items allow you to change the event log settings and view the system event logs. 4-40...

  • Page 143: Change Smbios Event Log Settings

    4.9.1 Change Smbios Event Log Settings Press <Enter> to change the Smbios Event Log configuration. All values changed here do not take effect until computer is restarted. Enabling/Disabling Options Smbios Event Log [Enabled] Change this to enable or disable all features of Smbios Event Logging during boot. Configuration options: [Disabled] [Enabled] The following item appears only when Smbios Event Log is set to [Enabled].

  • Page 144: View Smbios Event Log

    4.9.2 View Smbios Event Log Press <Enter> to view all smbios event logs. 4-42...

  • Page 145: Server Mgmt Menu

    4.10 Server Mgmt menu The Server Management menu displays the server management status and allows you to change the settings. OS Watchdog Timer [Disabled] Allows you to start a BIOS timer which can only be shut off by Management Software after the OS loads.

  • Page 146: System Event Log

    4.10.1 System Event Log Allows you to change the SEL event log configuration. All values changed here do not take effect until computer is restarted. Erase SEL [No] Allows you to choose options for erasing SEL. Configuration options: [No] [Yes, On next reset] [Yes, On every reset] 4.10.2 View FRU information Allows you to view the FRU information.

  • Page 147: Bmc Network Configuration

    4.10.3 BMC network configuration The sub-items in this configuration allow you to configure the BMC network parameters. Configure IPV4 support DM_LAN/Shared LAN Configuration Address source [Unspecified] This item allows you to configure LAN channel parameters statistically or dynamically (by BIOS or BMC). [Unspecified] option will not modify any BMC network parameters during BIOS phase.
  • Page 148 Configure IPV6 support DM_LAN/Shared LAN IPV6 support [Enabled] Allows you to enable or disable IPV6 support. Configuration options: [Enabled] [Disabled] The following items appear only when IPV6 support is set to [Enabled]. Configuration Address source [Unspecified] Allows you to set the LAN channel parameters statically or dynamically (by BIOS or by BMC).

  • Page 149: View System Event Log

    4.10.4 View System Event Log This item allows you to view the system event log records. 4-47...

  • Page 150: Save & Exit Menu

    4.11 Save & Exit menu The Save & Exit menu items allow you to save or discard your changes to the BIOS items. Pressing <Esc> does not immediately exit this menu. Select one of the options from this menu or <F10> from the legend bar to exit. Save Options Discard Changes and Exit Exit system setup without saving any changes.

  • Page 151: Boot Override

    Default Options Restore Defaults Restore/Load Default values for all the setup options. Boot Override These items displays the available devices. The device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.
  • Page 152 4-50...
  • Page 153 Appendix Appendix This appendix includes additional information that you may refer to when configuring the motherboard.
  • Page 154 USB 2.0[3] FAN Control USB 2.0 USB2.0[2] USB 3.0/2.0 USB 3.0[3] Front Fan * 8 USB 3.0/2.0 Rear USB3 port1 ASUS ROT Module BMC FW SPI MUX USB 3.0/2.0 Rear USB3 port2 ASM1074 USB HUB BMC FW USB 3.0/2.0 TYPE-A USB3 port3 ROT FPGA USB 2.0...
