Product manual │ 26.11.2024
Electronic room temperature controller insert
1094 USITA-BT
1095 UTA-BT
1096 UTA-BT
1099 UHKTA-BT
Branding -- Release 2018-01-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1094 USITA-BT and is the answer not in the manual?

Questions and answers

Related Manuals for Busch-Jaeger 1094 USITA-BT

Summary of Contents for Busch-Jaeger 1094 USITA-BT

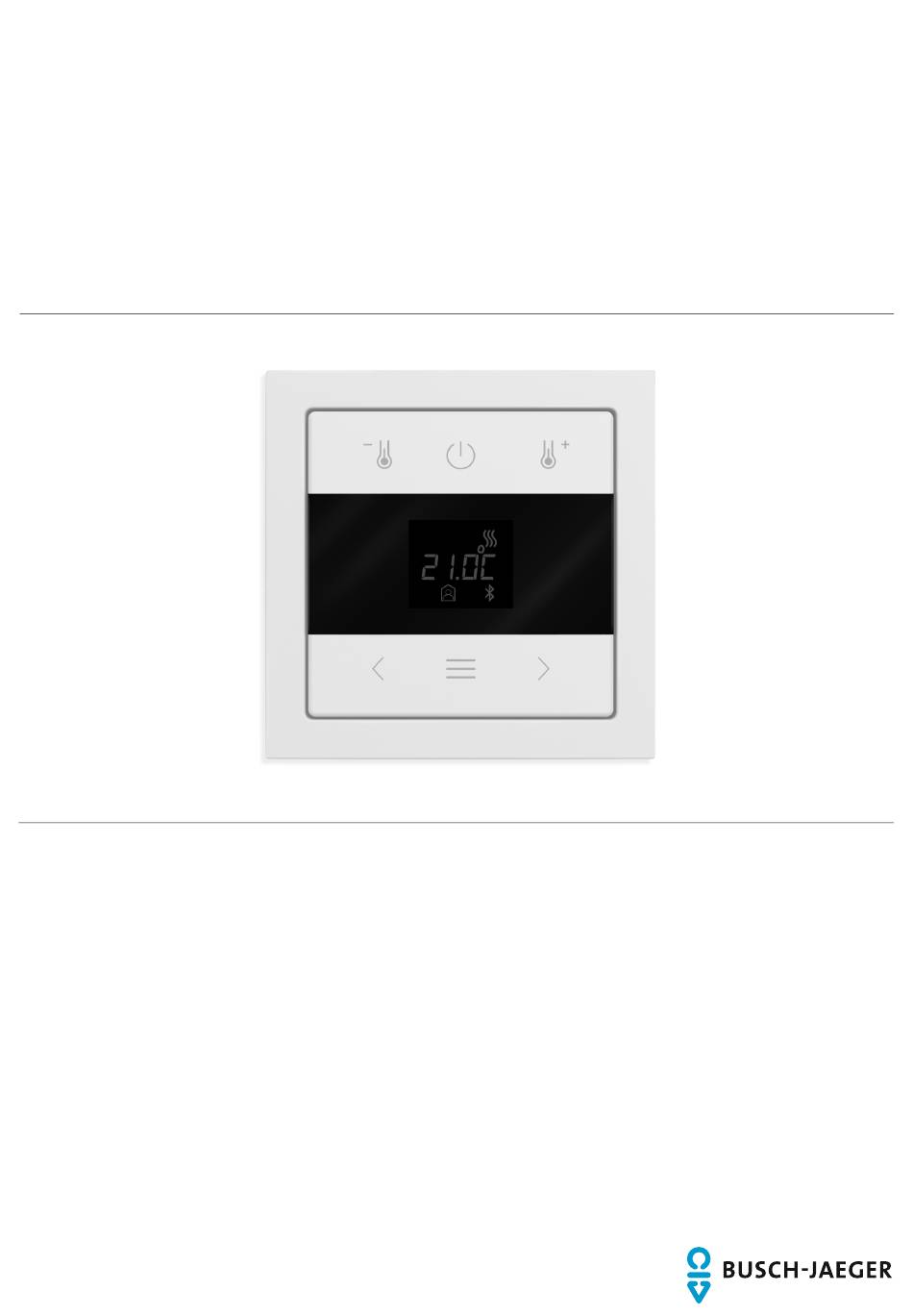

  • Page 1 Product manual │ 26.11.2024 Electronic room temperature controller insert 1094 USITA-BT 1095 UTA-BT 1096 UTA-BT 1099 UHKTA-BT Branding -- Release 2018-01-01...

  • Page 2: Table Of Contents

    Add a new installation ........................ 30 Factory and parameter overview ..................... 32 Factory/parameter settings 1095 UTA-BT ..................32 Factory/parameter settings 1096 UTA-BT ..................34 Factory/parameter settings 1094 USITA-BT ................... 36 Factory/parameter settings 1099 UHKTA-BT .................. 38 App settings............................40 Product manual 2CKA000073B0170...
  • Page 3 Table of contents 8.7.1 Carrying out device settings ....................... 40 8.7.2 Setting options ........................... 42 8.7.3 Specify the starting time ......................44 8.7.4 Setting the LED switch-on brightness ..................46 8.7.5 Setting comfort temperature for heating mode ................46 8.7.6 Setting comfort temperature for cooling mode ................

  • Page 4: Notes On The Instruction Manual

    If you pass the device on, also include this manual along with it. Busch-Jaeger accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact Busch- Jaeger or visit our Internet site at: www.BUSCH-JAEGER.de...

  • Page 5: Safety

    However, residual hazards remain. Read and adhere to the safety instructions to prevent hazards of this kind. Busch-Jaeger accepts no liability for any failure to observe the safety instructions. Information and symbols used The following Instructions point to particular hazards involved in the use of the device or provide...

  • Page 6: Intended Use

    Each use not listed in see chapter 3.2 “Intended use“ on page 6 is deemed improper use and can lead to personal injury and damage to property. Busch-Jaeger is not liable for damages caused by use deemed contrary to the intended use of the device. The associated risk is borne exclusively by the user/operator.

  • Page 7: Target Group / Qualifications Of Personnel

    Safety Target group / Qualifications of personnel 3.4.1 Operation No special qualifications are needed to operate the device. 3.4.2 Installation, commissioning and maintenance Installation, commissioning and maintenance of the device must only be carried out by trained and properly qualified electrical installers. The electrical installer must have read and understood the manual and follow the instructions provided.

  • Page 8: Safety Instructions

    Safety Safety instructions Danger - Electric voltage! Electric voltage! Risk of death and fire due to electric voltage of 100 … 240 V. Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death.

  • Page 9: Information On Protection Of The Environment

    Information on protection of the environment Information on protection of the environment Environment Consider the protection of the environment! Used electric and electronic devices must not be disposed of with domestic waste. – The device contains valuable raw materials which can be recycled. Therefore, dispose of the device at the appropriate collecting depot.

  • Page 10: Setup And Function

    Separately available: 6226/T Temperature sensor ■ Available in different design versions ■ Notice 1095 UTA-BT, 1094 USITA-BT and 1099 UHKTA-BT the following actuating ■ drive possible: TSA/K230.2 1096 UTA-BT the following actuating drive possible: TSA/K24.2 ■ Device overview Fig. 1:...

  • Page 11: Control Elements

    Operation is only possible with the associated control element and suitable design cover. The control element and design cover are latched onto the insert together with the cover frame. 1095 UTA-BT 1096 UTA-BT 1794 MDRT-xxx 1099 UHKTA-BT 1094 USITA-BT Table. 1: Control elements Product manual 2CKA000073B0170 │11...

  • Page 12: Functions

    Activation of actuating drives with 24V (e.g. TSA/K24.2) Room temperature control with floor heating (water): ■ – Activation of actuating drives with 24V (e.g. TSA/K24.2) Functionality of heating mode: 1094 USITA-BT Room temperature controller with radiator: ■ – Activation of actuating drives (e.g. TSA/K230.2).

  • Page 13: Button Functions

    Setup and function Button functions Fig. 2: Button functions Pos. Designation Function The setpoint can be set temporarily with the buttons. If one of the two buttons is actuated, the setpoint is changed in the display. Each press of the button causes a change of the setpoint in steps of 0.5°C.
  • Page 14 Setup and function Pos. Designation Function The comfort mode is set with the > arrow button. If the room temperature controller has a temporary setpoint, Setting of Comfort mode one of the operating modes can again be set via the arrow buttons.

  • Page 15: Display Overview

    Setup and function Display overview Fig. 3: Display overview Pos. Designation Function Cooling mode The device is in cooling mode. Heating mode The device is in heating mode. Cooling mode Device is currently cooling. Heating mode Device is currently heating. Flashes: Pairing ■...

  • Page 16: Technical Data

    Technical data Technical data Technical data General technical data Designation Value Degree of protection: IP20 (EN 60529) Operating temperature: -5 to +45°C Storage temperature: -20 to +70°C 1x 1.5 mm² to 2.5 mm² ■ Connection terminals: 2x 1.5 mm² to 2.5 mm² ■...
  • Page 17 230 V AC ± 10%, 50 Hz Switching capacity: 2 x 8 (1) A Protection class: Table. 6: Technical data 1099 UHKTA-BT Technical data 1094 USITA-BT Designation Value Nominal voltage: 230 V AC ± 10%, 50 Hz 1x - 10x Switching capacity: TSA/K230.2...

  • Page 18: Dimensional Drawings

    Technical data Dimensional drawings Fig. 4: Dimensions Notice All specifications are in mm. Product manual 2CKA000073B0170 │18...

  • Page 19: Connection, Installation / Mounting

    Connection, installation / mounting Connection, installation / mounting Danger - Electric voltage! Risk of death due to electrical voltage of 100 … 240 V during short-circuit in the low-voltage conduit. – Low-voltage and 100 … 240 V conduits must not be installed together in a flush-mounted box! Requirements for the electrician Danger - Electric voltage!

  • Page 20: Electrical Connection

    Fig. 5: Electrical connection 1095 UTA-BT Electrical connection 1096 UTA-BT 2 V/AC 1 2 1 3 Fig. 6: Electrical connection 1096 UTA-BT Electrical connection 1094 USITA-BT 230V/AC 1 L 1 N Fig. 7: Electrical connection 1094 USITA-BT Product manual 2CKA000073B0170 │20...
  • Page 21 Connection, installation / mounting Electrical connection 1099 UHKTA-BT 230V/AC 1 L 2 N N Fig. 8: Electrical connection 1099 UHKTA-BT 2-Rohr-System (Betriebsart 1) 230V/AC 1 L 2 N N Fig. 9: Electrical connection 1099 UHKTA-BT 4-Rohr-System (Betriebsart 1) 230V/AC 1 L 2 N N Fig.

  • Page 22: Mounting

    Connection, installation / mounting Mounting Danger - Electric voltage! Risk of death and fire due to electric voltage of 100 to 240 V. – Work on the 100 - 240 V supply system may only be performed by authorised and qualified electricians. –...
  • Page 23 Connection, installation / mounting Fig. 13: Mounting To mount the device, proceed as follows: 1. Connect the flush-mounted device insert [1]. – For the connection assignment, see chapter see chapter 7.2 “Electrical connection“ on page 20. [2. Fix the flush-mounted device insert [1] in the flush-mounted box. 3.

  • Page 24: Radio Transmission Ranges

    Connection, installation / mounting 7.3.1 Radio transmission ranges The transmission range can vary depending on the application. Walls, ceilings and other building obstacles reduce the transmission range of the Bluetooth signal. Fire walls, lift wells, staircases and supply areas are considered as separating walls, just like the installation of the receiver in metal housings.

  • Page 25: Dismantling

    Connection, installation / mounting Dismantling Fig. 14: Dismantling 1. Pull off the control element including the cover frame only with your hands. Caution! The device can sustain damage when coming into contact with hard objects! The plastic parts of the device are sensitive. –...

  • Page 26: Commissioning

    Commissioning Commissioning Initial commissioning Notice – The device can be operated immediately after the installation with the preset parameters (factory settings). – Further settings are possible via the app. A mobile terminal device is required for commissioning. In the following the designation "Smartphone"...

  • Page 27: Connecting A Non-Programmed Device With The App

    Commissioning 8.1.1 Connecting a non-programmed device with the app A login of a non-programmed device into the Busch-free@home ® Next App app is possible at all times via Bluetooth. For this, scan the printed QR code on the top side of the device or activate the pairing mode (see chapter 8.1.3 “Activation of pairing mode“...
  • Page 28 Commissioning Fig. 16: Add device [1] - [4] 7. Assign a device name and position the device inside the installation (e.g. Here in the kitchen). – The device is added to the installation. 8. Assign a room name and, if required, fix a background image. Then tap on "Next” [5] 9.

  • Page 29: Set An Already Programmed Device Into The Teaching Mode

    Commissioning 8.1.2 Set an already programmed device into the teaching mode A device that has already been logged in must be reset to enable it to be set again into teaching mode: 1. Switch the room temperature controller off with the “ON/OFF” button. 2.

  • Page 30: Add A New Installation

    Commissioning 8.1.4 Add a new installation When you have installed the app anew, you must add a new network before its use. Proceed as described in the following. 1. Start the app. 2. Tap on the plus icon [1]. 3. Select the option “Add a new flexTronix wireless device” [2]. 4.
  • Page 31 Commissioning Fig. 20: Adding a new network [5] - [8] 10. Assign a device name and position the device inside the installation (e.g. here in the kitchen) and tap on "Continue” [9]. – The device is added to the installation. –...

  • Page 32: Factory And Parameter Overview

    Commissioning Factory and parameter overview The possible parameter and factory setting of the device are described in the following. The factory settings provide an overview about the factory configuration of the device and the available setting ranges. Factory/parameter settings 1095 UTA-BT Main parameters Parameter name 1095 UTA-BT...
  • Page 33 Commissioning Main parameters Parameter name 1095 UTA-BT Factory setting Controller type PWM controller (PWM controller, 2-point controller) PWM period [s] 1,800 (Value between 600 and 1,800) Actuator setting Behaviour during malfunctions [%] (Value between 0 and 100) Contact type Closed de- energized (Closed/opened de-energized) Comfort...

  • Page 34: Factory/Parameter Settings 1096 Uta-Bt

    Commissioning Factory/parameter settings 1096 UTA-BT Main parameters Parameter name 1096 UTA-BT Factory setting Room temperature control with floor heating Room temperature control with Room temperature radiator control with radiator Function Room temperature control with floor temperature limitation Floor control Comfort temperature [C°] (Value between 15°C and 30°C) Basic set value of heating Eco mode [°C]...
  • Page 35 Commissioning Main parameters Parameter name 1096 UTA-BT Factory setting Comfort External input function Heating/Cooling changeover Table. 11: Main parameters General setting Parameter name 1096 UTA-BT Factory setting Device name (Free text) Setting / maintenance Position (e.g. Floor name) Table. 12: Parameters - General setting Other Parameter name 1096 UTA-BT...

  • Page 36: Factory/Parameter Settings 1094 Usita-Bt

    Commissioning Factory/parameter settings 1094 USITA-BT Main parameters Parameter name 1094 USITA-BT Factory setting Room temperature control with floor heating Room temperature control with Room temperature radiator control with radiator Function Room temperature control with floor temperature limitation Floor control Comfort temperature [C°] (Value between 15°C and 30°C)
  • Page 37 Commissioning General setting Parameter name 1094 USITA-BT Factory setting Device name (Free text) Setting / maintenance Position (e.g. Floor name) Table. 15: Parameters - General setting Other Parameter name 1094 USITA-BT Factory setting Information about the device (serial number / article number / software...

  • Page 38: Factory/Parameter Settings 1099 Uhkta-Bt

    Commissioning Factory/parameter settings 1099 UHKTA-BT Main parameters Parameter name 1099 UHKTA-BT Factory setting Room temperature Room temperature control with floor control with floor heating heating Room temperature control with radiator Function Room temperature control with floor temperature limitation Floor control Comfort temperature [C°] (Value between 15°C and 30°C) Basic set value of heating Eco mode...
  • Page 39 Commissioning General setting Parameter name 1099 UHKTA-BT Factory setting Device name (Free text) Setting / maintenance Position (e.g. Floor name) Table. 18: Parameters - General setting Other Parameter name 1099 UHKTA-BT Factory setting Information about the device (serial number / article number / software Setting / version) Maintenance...

  • Page 40: App Settings

    4. Floor control (electric) 1096 UTA-BT 1. Room temperature control with radiator (water) 1094 USITA-BT 2. Room temperature control with floor heating (water) No selection menu is available for this room temperature controller. Here the room temperature control with floor heating is always active.
  • Page 41 Commissioning 5. Make the desired changes to the settings (additional information is available in Chapter 8.7.2 “Setting options“ on page 42). Fig. 22: Carrying out device settings Product manual 2CKA000073B0170 │41...

  • Page 42: Setting Options

    Commissioning 8.7.2 Setting options Within the setting options the general device parameters and general settings can be made. The available settings are described in the following. Fig. 23: Channel settings Pos. Description Name of the room temperature controller Here the name of the room temperature controller and the quality of the Bluetooth signal are listed.
  • Page 43 Commissioning Pos. Description Here the temperature unit is specified, the following temperature units are available for selection: Unit of temperature Celsius ■ Fahrenheit ■ Parameters - LED and display settings The -/+ buttons are used to specify the setpoint Setpoint temperature [°C] temperature.

  • Page 44: Specify The Starting Time

    Commissioning 8.7.3 Specify the starting time Notice The device is not equipped with batteries. – Time programs are stopped at a power failure. – The time in the device is synchronized again only at the next connection with the app. Up to 28 switching times can be programmed via the automation.
  • Page 45 Commissioning The starting times are specified as follows: Fig. 24: Specifying the starting times 6. Tap on the timer icon [1]. – You reach the “Automation” submenu. 7. Tap on the plus icon [2]. 8. Define a starting time [3]. –...

  • Page 46: Setting The Led Switch-On Brightness

    Commissioning 8.7.4 Setting the LED switch-on brightness Notice These settings can only be made in the app. The following four setting options are available in the app for the LED switch-on brightness: 1. Night mode daily from the set time for the LED switch-on brightness in night mode: –...

  • Page 47: Setting Comfort Temperature For Cooling Mode

    Commissioning 8.7.6 Setting comfort temperature for cooling mode Notice The following settings apply only to the room temperature controller 1099 UHKEA. Notice These settings can only be made in the app. This function of the app can be used to change the comfort temperature in cooling mode. The setting of the max.

  • Page 48: Setting Actual Temperature Correction (Room Temperature)

    Commissioning 8.7.9 Setting actual temperature correction (room temperature) Notice These settings can only be made in the app. Via function “Temperature correction [°C]” an offset of -10°C to +10°C for the measured room temperature can be entered (see chapter 8.7.2 “Setting options“ on page 42, position [6]). Step-width 0.5°C ■...

  • Page 49: Heating/Cooling Changeover

    Commissioning 8.7.11 Heating/Cooling changeover Notice This changeover between heating and cooling mode can be set exclusively for 1099 UHKTA-BT. The changeover between heating and cooling mode must be selected when the controller is to switch over between heating and cooling modes. Fig.

  • Page 50: Block Local Operation

    Commissioning 8.7.12 Block local operation Notice These settings can only be made in the app. The local operation of the device you can carry out or cancel as follows: Fig. 26: Block local operation 1. Open the temperature settings with a tap on the three points in the top right corner of the control element [1].

  • Page 51: Setting The External Input

    External input active (see marked icon) Notice When the external input is active, the icon lights up permanently. 1095 UTA-BT, 1096 UTA-BT, 1094 USITA-BT and 1099 UHKTA-BT The external input can be configured via the app. The following options are available: Comfort ■...

  • Page 52: Setting Max. And Min. Setpoint Values

    Commissioning 8.7.14 Setting max. and min. setpoint values The setpoints for the operating modes “Comfort” and “ECO” can be set in the app. A setpoint shift can also be made directly and temporarily on the on the room temperature controller via the “+” / ”-” buttons. The following table contains the adjustable values in dependence of the application.

  • Page 53: Extended App Settings

    Commissioning Extended app settings 8.8.1 Specifying the operating mode Notice These settings can only be made in the app. Notice Only for 1099 UHKTA-BT can the basic function be set. The cooling and heating function can be specified via the operating mode. For this, an output for “Heating”...

  • Page 54: Activating Frost Protection

    Commissioning 8.8.3 Activating frost protection The "Frost protection" function is not available as option in the app. If the controller is set on the “Off” function, frost protection is always active. From a temperature of below 5°C, the heating starts to heat again. 8.8.4 Activating valve protection With this function of the app a valve protection is activated.

  • Page 55: Setting The Switching Capacity

    Commissioning 8.8.6 Setting the switching capacity Notice These settings can only be made in the app. Notice This setting is only available for the 1095 UTA-BT room temperature controller. In this app the switching capacity of the room temperature controller can be specified. This setting is required for the calculation of the self-heating process at different switching capacities.

  • Page 56: Setting The Floor Temperature Limiter

    Commissioning 8.8.8 Setting the floor temperature limiter This setting is only available for the room temperature control with floor temperature limiter (electric). Here the minimum and maximum temperature values for limiting the floor temperature can be entered or limited in the app. Floor temperature control application Max.

  • Page 57: Operation

    Operation Operation The configuration and operation of the device is carried out via the Busch-free@home ® Next App app. The device is registered on your mobile terminal device via the app. Operation is carried out via the app, or, as alternative, directly on the device. You can operate the device via individual control, but observe the following functions: The room temperature controller operates independent.

  • Page 58: Local Operation

    Operation 9.1.3 Local operation The local operation of the room temperature controller can be carried out with or without enabling the cooling function. The following example shows the local operation at enabled cooling function. [1] If the device is not connected, this is indicated on the display with the lettering “OFF”. [2] In a deactivated state, the device shows the current time after 3 seconds.

  • Page 59: Comfort/Eco

    Operation 9.1.4 Comfort/ECO In operating modes “Comfort” or “Eco”, the setpoint temperature can be set either via the local operation or via the app. 9.1.5 Operating mode selection To change the operating mode, see Chapter 8.8.1 “Specifying the operating mode“ on page 53. Error messages 9.2.1 Floor temperature sensor is not connected...

  • Page 60: Maintenance

    Maintenance Maintenance 10.1 Cleaning Caution! - Risk of damaging the device! When spraying on cleaning agents, these can enter the device through ■ crevices. – Do not spray cleaning agents directly onto the device. Aggressive cleaning agents can damage the surface of the device. ■...

  • Page 61: Notes

    Notes Notes Product manual 2CKA000073B0170 │61...

  • Page 62: Index

    Index Index 1094 USITA-BT ...............36 1099 UHKTA-BT .............38 Add a new installation ............ 27, 30 Floor temperature sensor is not connected......59 App settings ................. 40 Functions ................12 1.1.1 Setting ECO temperature for cooling mode ... 47 Block local operation ............50 Blocking cooling mode ............
  • Page 63 Index Product manual 2CKA000073B0170 │63...
  • Page 64 Busch-Jaeger Elektro GmbH A member of the ABB Group Freisenbergstraße 2 D-58513 Lüdenscheid, Germany www.BUSCH-JAEGER.de Customer service: Tel.: +49 2351 956-1600 Copyright © 2024 Busch-Jaeger Elektro GmbH All rights reserved...
