Morris CIW-10701BA User Manual

Combi washer dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CIW-10701BA
COMBI WASHER DRYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIW-10701BA and is the answer not in the manual?

Questions and answers

Related Manuals for Morris CIW-10701BA

Summary of Contents for Morris CIW-10701BA

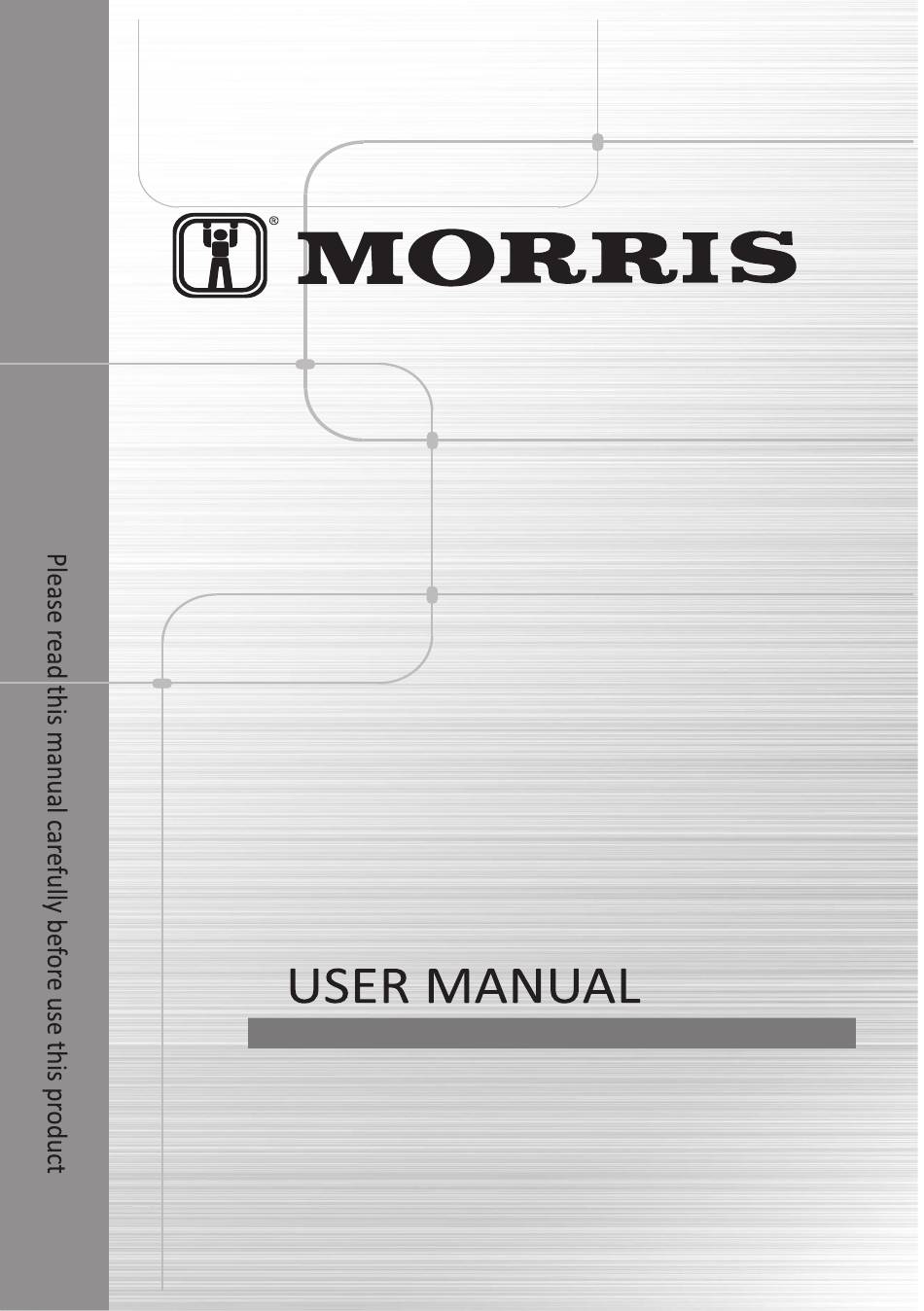

  • Page 1 CIW-10701BA COMBI WASHER DRYER...

  • Page 2: Table Of Contents

    THANK YOU LETTER Thank you for choosing Morris product Before using your new Morris product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

  • Page 4: Electric Shock Hazard

    WARNING: Electric Shock Hazard • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.

  • Page 5: Electrical Connection

    • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa. Electrical Connection • Make sure the supply cable is not trapped by the machine, or it can get damaged. •...
  • Page 6 -Accumulated water shall be drained out of the machine. • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle. Model Washing/Drying Capacity CIW-10701BA 10.0/7.0kg...

  • Page 7: Specifications

    SPECIFICATIONS CIW-10701BA Model 220-240V~, 50Hz Power Supply MAX.Current Standard Water Pressure 0.05MPa~1MPa 10.0kg Washing Capacity Drying Capacity 7.0kg Dimension 595mm 850mm 535mm 66kg Weight 1900W Rated Power 1300W Drying Power Reference Dimension 600mm 580mm 1045mm 135mm...

  • Page 8: Product Overview

    PRODUCT OVERVIEW Service flap Control panel Drain hose Door Power supply cord Detergent dispenser NOTE The product picture is for illustration only, please refer to real product as reference. Accessories Acoustic sponge 4 x Cover 1 x Supply hose 1 x Owner’s (optional) caps cold water...

  • Page 9: Quick Start Guide

    QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.

  • Page 10: Before Washing

    1. Before Washing 1. Plug in 2. Open tap 3. Load earth terminal 5. Add detergent 4. Close door Main wash Softener Prewash NOTE Detergent need to be added in compartment I if the pre-wash function is • selected. When closing the door, please make sure that your clothes are not caught •...
  • Page 11 2. Washing 1. Select programme 2. Select function or remain default settings 3. Press Start/Pause to start the program NOTE 1 : If default is selected, step 2 can be skipped. 2: The function button line chart is for reference only, please refer to real product as standard.

  • Page 12: Product Installation

    PRODUCT INSTALLATION Tools Needed If Installation By Yourself (not include) Installation Area WARNING • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •...

  • Page 13: Unpacking The Machine

    Unpacking the Machine WARNING • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. Lift the machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together.

  • Page 14: Levelling The Machine

    Levelling the Machine WARNING The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.

  • Page 15: Acoustic Sponge

    There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. Water trough Acoustic Sponge NOTE • Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

  • Page 16: Operation Instructions

    OPERATION INSTRUCTIONS Before Each Washing • The ambient temperature of the machine should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser CAUTION • Detergent only need to be added in compartment I ”after selecting pre-wash “ function. • Do not put laundry beads into the detergent dispenser. Programme Programme DRUM CLEAN...
  • Page 18 Detergent Recommendation Recommended washing Type of laundry Washing Wash cycles detergent and textile temp. °C Heavy-duty detergent White laundry made COTTON,ECO 40-60, with bleaching agents from boil-proof and optical brighteners cotton or linen Colour detergent without Coloured laundry COTTON,ECO 40-60, bleaching agent and made from cotton optical brighteners...

  • Page 19: Control Panel

    Control Panel Turn the appliance off. Start/Pause Start or pause your programme. Option This allows you to select additional functions. Programmes Available according to the laundry type. Display The display shows settings, estimated remaining time, options and status messages. NOTE •...
  • Page 20 Display Display Wash Time Delay Time Speed Error Temp. Child Lock Door Lock Normal Dry Delay End Timed Dry Extra Dry Steam...
  • Page 21 Programmes Model:CIW-10701BA Programme Temp. (°C) Default Time (h:min) Wash/Dry Load (kg) COTTON 3:39 10.0/7.0 1:20 10.0/7.0 BABY CARE 2:01 10.0/7.0 QUICK 15' 0:15 2.0/-- Cold 1 hr W/D 0:58 1.0/1.0 DRY ONLY 4:10 --/7.0 WASH AND DRY 5:04 7.0/7.0 SYNTHETIC 3:18 5.0/3.5...
  • Page 22 Programmes CIW-10701BA Cycle 0:15 0.030 70%/800 Cold Cold QUICK 15' 20°C CARE+ 1:08 0.207 65%/1000 10.0 2:01 1.528 65%/1000 BABY CARE 10.0 1:20 0.871 70%/800 10.0 3:44 1.708 53%/1400 COTTON 10.0 3:59 0.870 66.0 53.9%/1351 ECO 40-60 53.9%/1351 3:00 0.575 54.0...
  • Page 23 Programmes The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2. Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3. The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 24 Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or linen. COTTON Washing few and not very dirty clothes quickly. RAPID 59' SYNTHETIC Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 25 Option Default Default spin Additional Cycle speed (rpm) functions Temp.(℃) COTTON 1000 BABY CARE Cold QUICK 15' 1 hr W/D 1200 DRY ONLY WASH AND DRY SYNTHETIC DRUM CLEAN 1000 SPIN ONLY BULKY 1000 WOOL ECO 40-60 RAPID 59' 1000 °C CARE+ 1000...
  • Page 26 Spin Speed When needed, the spinning speed can be adjusted pressing the Speed Speed button in the following steps: 1400:0-400-600-800-1000-1200-1400 Delay End 1. Select a programme. 2.Press the Delay End button to choose the delaying time 0-24H. 3.Press [Start/Pause] to start the delay end operation. Delay End Choose programme Setting time...
  • Page 27 Child Lock To avoid mis operation by children. Press [Delay End] and [Dry] simultaneously for 3 sec. until the buzzer beep. The child lock indicator switches on. DelayEnd CAUTION When the Child Lock is activated, the display will alternately show “CL” and the remaining time.
  • Page 28 Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To Press ]3sec.

  • Page 29: Product Fiche

    Product Fiche ): MORRIS Supplier's name or trade mark( ): 87A, 17th Noemvriou str - 55535, Pylea, Theesaloniki, Greece Supplier's address( CIW-10701BA Model identifier( ): General product parameters: Parameter Value Parameter Value Rated Height capacity( ) Width Rated Rated capacity(kg)
  • Page 30 ( ) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369. ( ) for the eco 40-60 programme. ( ) for the wash and dry cycle. Dry level: d-3, Extra Dry. ( ) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

  • Page 31: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. • When cleaning the product, do not stretch your hands, feet or arms into the bottom of the machine case to prevent scratches. Cleaning the Cabinet Proper maintenance on the machine can extend its working life.
  • Page 32 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 3. Unscrew the water supply 4.

  • Page 33: Cleaning The Detergent Dispenser

    Cleaning the Detergent Dispenser • Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. • Lift the softener cover off the dispenser drawer and wash both items with water. • Clean the inside of the recess with a brush. •...
  • Page 34 Cleaning the Drain Pump Filter WARNING • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...

  • Page 35: Trouble Shooting

    TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible Cause Solution Appliance does Door is not closed Close the door properly not start and restart.

  • Page 36: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

  • Page 37: Data Protection Notice

    (proof of purchase must be provided). Our General Terms and Conditions apply. Your device / serial number Purchase date: Place of purchase: * Please check warranty card provided with your washing machine or visti www.morris.gr...

  • Page 38: Customer Service

    Customer Service Spare parts for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements. In case of questions, please contact our local customer service center. WARNING Risk of electric shock •...

  • Page 39: Notes

    NOTES...
  • Page 40 V3.0 16138100006502 MFK70-S1403B_C14E-EU_NB-PM01...
