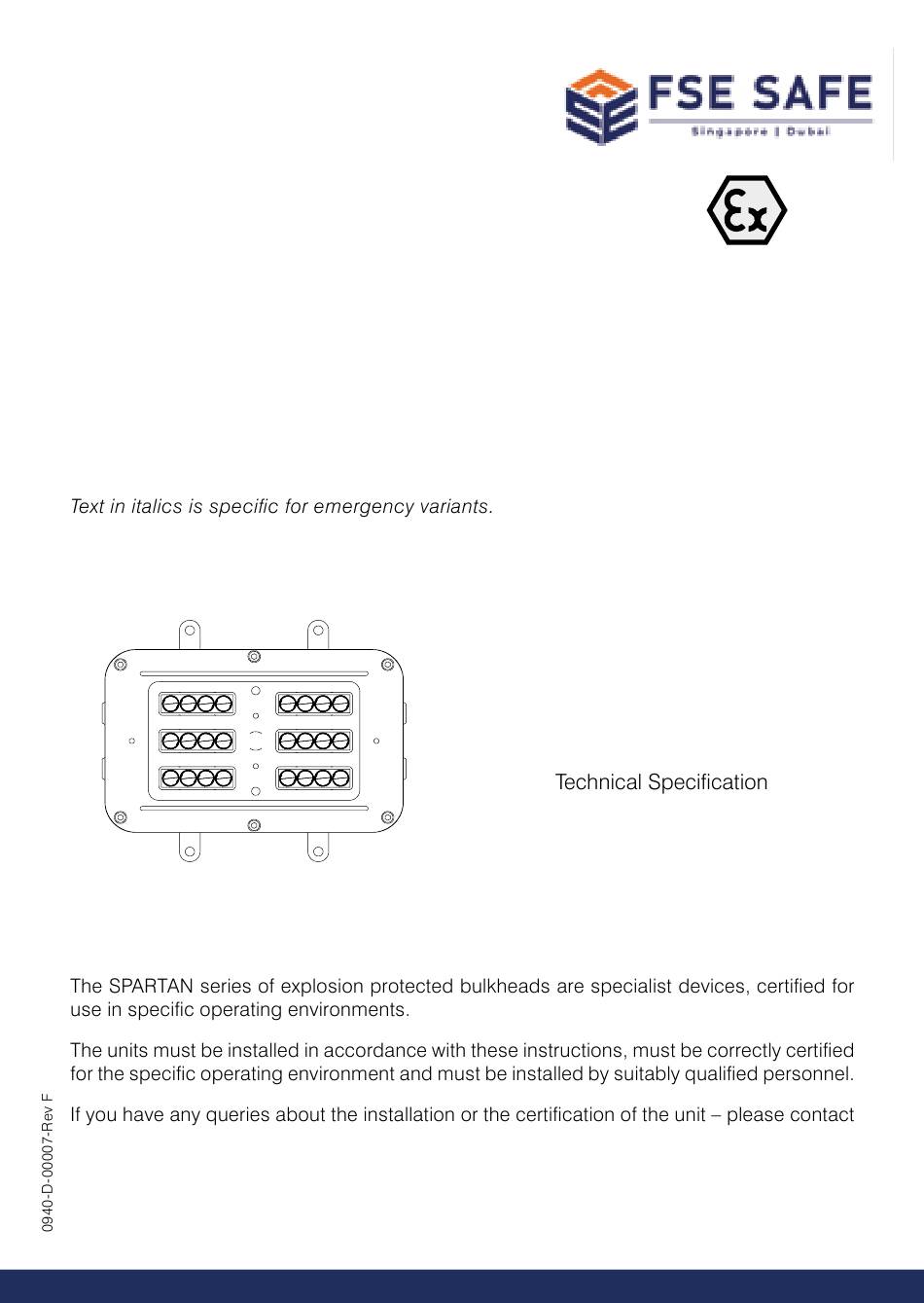

- Page 1 SPARTAN SPX/SPZ Bulkhead & Flood BL24 Range - Installation Guide Zone 1 variant CML 13ATEX3007, IEC Ex CML14.0001 & CML21UKEX3099 Zone 2 variant CML 17ATEX4231, IEC Ex CML17.0135 & CML21UKEX4106 This installation guide provides instructions for installing the White-Light SPARTAN series of explosion protected bulkheads.
-
Page 2: Safety Instructions
1. Safety instructions supply, ambient temperature present and ‘T’ rating are suitable for the environment the unit is being installed in. If the SPARTAN unit is to be installed in areas of high vibration, please consult with Raytec. Externally the SPARTAN unit housing is constructed from marine grade aluminium, and toughened glass, stainless steel brackets/fasteners and silicone gaskets, internally there are many non metallic components. -
Page 3: Installation
2. Installation Mounting SPARTAN Bulkhead Unit MINIMUM UK / Europe Tel: +44 (0) 1670 520055 www.raytecled.com Americas Tel: +1 613 270 9990 Contact Information for Inquiries: sales@fseprojects.com... - Page 4 SPARTAN Flood BL24 Mounting Instructions POSITION STIRRUP TO PREFERRED ANGLE AND SECURE USING REMAINING M6 SREW, www.raytecled.com UK / Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990 Contact Information for Inquiries: sales@fseprojects.com...
- Page 5 UK / Europe Tel: +44 (0) 1670 520055 www.raytecled.com Americas Tel: +1 613 270 9990 Contact Information for Inquiries: sales@fseprojects.com...
- Page 6 Spartan Bulkhead Standard/Emergency Variant The SPARTAN Bulkhead is supplied as standard with the mounting brackets as shown Raytec. Typical wiring diagram - Emergency Variants GREEN EARTH TO SCREW TO LED's GREY BROWN Typical wiring diagram - Standard Variants BLUE GREEN WHITE WHITE/RED EARTH TO SCREW...
-
Page 7: Operation
10. If carrying out Insulation Resistance tests the normal method of insulation testing is to connect Live and Neutral together and test between this point and Earth to prevent the risk of damage to the electronic control gear. Spartan Intelligent Emergency Operation Guide Operation automatically after installation: •... -
Page 8: Led Indication
c. Self-test • Carried out at a random time every 3 months. • Checks the battery’s capacity and lamp’s condition. • Performs self-recovery for the battery if not at peak capacity. • Is carried out at 100% load • Discharges only 2/3 of the battery’s capacity. LED indication LED Indication Condition... -
Page 9: Maintenance
3. Maintenance It is essential that all SPARTAN Bulkhead units are maintained in accordance with IMPORTANT Isolate the SPARTAN Bulkhead from the mains supply and allow to cool before carrying out any maintenance work. • environment is NOT present prior to carrying out any maintenance work. In the unlikely event of a number of LED’s failing, the light engine assembly must be replaced. - Page 10 BL24-STD BL24-EM Input Voltage Input Current (230Vac, full load) 0.15A 0.16A Consumption 20W/34W 24W/37W Power Factor (230Vac, full load) >0.97 Mains Frequency Inrush Current (I @50%) peak Total Harmonic Distortion (230Vac, full load) IP Rating IP66/67 Weight (std) Dimensions See previous pages for line diagrams ATEX and IECEx and UKEX Rating See above Inrush Current Typical Curve...
- Page 11 (Based on 230V) MCB Type Rating BL24 - STD BL24 - EM UK / Europe Tel: +44 (0) 1670 520055 www.raytecled.com Americas Tel: +1 613 270 9990 Contact Information for Inquiries: sales@fseprojects.com...
- Page 12 Declaration Of Conformity With The Atex Directive 2014/34/EU & UK Directive SI 2016 NO. 1107 (as amended) conform with the relevant provisions of the ATEX directive 2014/34/EU of 20th April Manufacturer Raytec Ltd Unit 15, Wansbeck Business Park Rotary Parkway Ashington Northumberland NE63 8QW...
- Page 13 reference to the following harmonised/designated standards - EN 60079-0 : 2018 EN 60079-7 : 2015 + A1 : 2018 EN 60079-18 : 2015 + A1 : 2017 EN 60079-31 : 2014 Signed Name Barry Thompson Position Director Dated Serial number UK / Europe Tel: +44 (0) 1670 520055 www.raytecled.com Americas Tel: +1 613 270 9990...
- Page 14 Raytec Global (excluding Americas) Raytec Americas Tel: +1 613 270 9990 sales@raytecled.com sales@raytecled.com #05-34, Ubi Techpark (Lobby B), 10 Ubi Crescent, Singapore 408564 Raytec Ltd. Raytec Systems Inc. Tel. +65 6814 9717 +65 6025 3019 Unit 15 Wansbeck Business Park, Rotary Parkway 800-300 Terry Fox Drive, Ottawa, Ontario sales@fseprojects.com www.fsesafe.com / www.fse-exdigital.com...
