SPX/SPZ
Street Luminaire - Installation Guide
Zone 1 and 21 Variant CML23ATEX3246X & IEC Ex CML23.0094X or CML23UKEX3247X
Zone 2 and 22 Variant CML23ATEX4285X & IEC Ex CML23.0094X or CML23UKEX4286X
This installation guide provides instructions for installing SPARTAN series of explosion
protected Street luminaires.
Overview
Important information
Raytec for immediate assistance and advice.
SPARTAN
1
Safety Instructions
2
Installation
3
Maintenance
4
5
Trouble Shooting
Advertisement
Table of Contents
Related Manuals for FSE SAFE SPARTAN SPX
Summary of Contents for FSE SAFE SPARTAN SPX

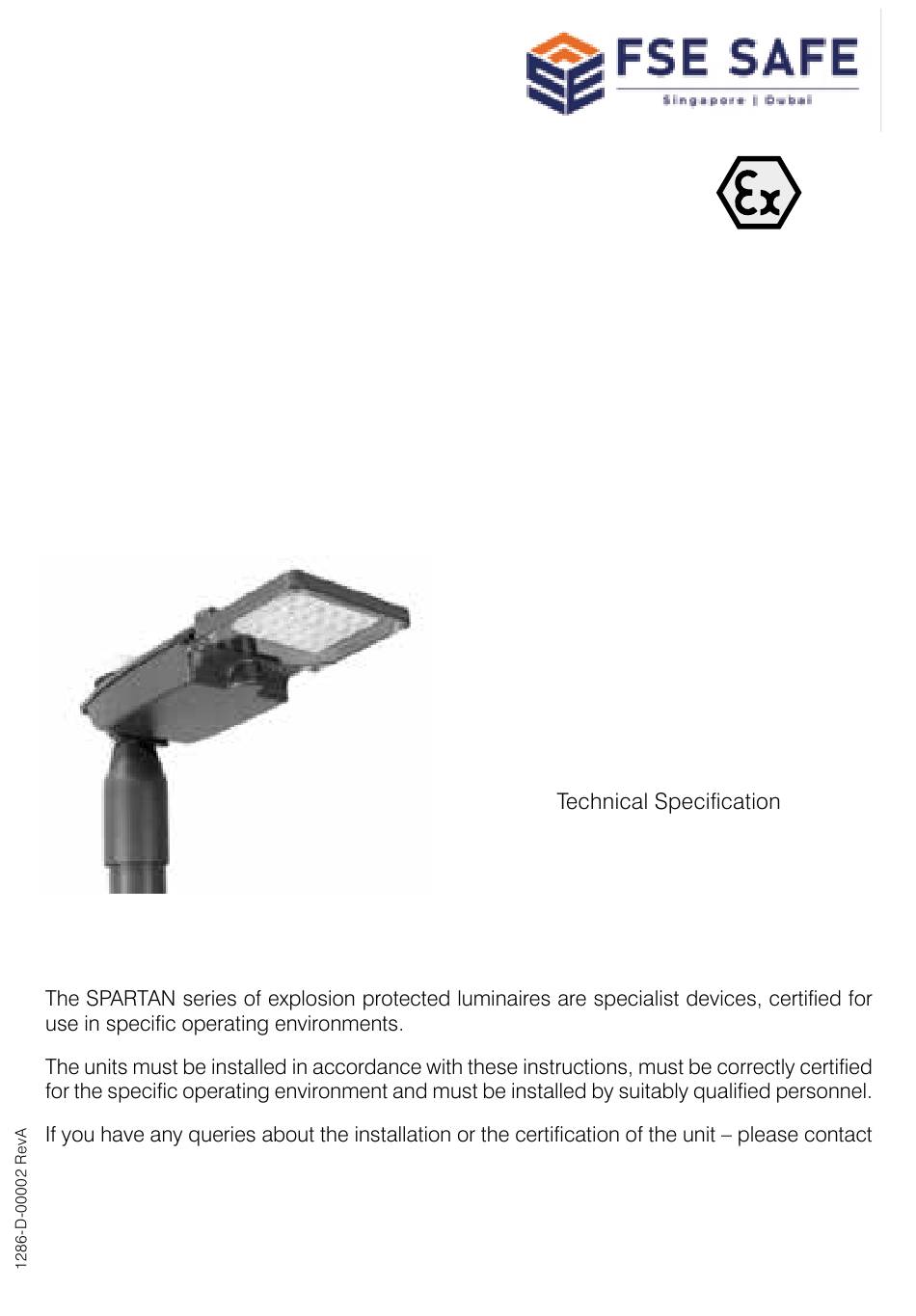

- Page 1 SPARTAN SPX/SPZ Street Luminaire - Installation Guide Zone 1 and 21 Variant CML23ATEX3246X & IEC Ex CML23.0094X or CML23UKEX3247X Zone 2 and 22 Variant CML23ATEX4285X & IEC Ex CML23.0094X or CML23UKEX4286X This installation guide provides instructions for installing SPARTAN series of explosion protected Street luminaires.
- Page 2 1. Safety instructions temperature present and ‘T’ rating are is suitable for the environment the unit is being installed in. 3. If the SPARTAN unit is to be installed in areas of high vibration, please consult with Raytec. 4. Externally the SPARTAN unit housing is constructed from marine grade aluminium, and toughened glass, stainless steel brackets/fasteners and silicone gaskets, internally there are many non metallic components.
- Page 3 2. Installation Mounting SPARTAN Unit MINIMUM 2xM8 grub screws for mounting (see point 4 and 5) 2. The line diagrams below are for guidance only Mounting HP SPARTAN Unit – Floodlight Application UK / Europe Tel: +44 (0) 1670 520055 www.raytecled.com Americas Tel: +1 613 270 9990 Contact Information for Inquiries: sales@fseprojects.com...
- Page 4 Typical wiring diagram The SPARTAN Street is delivered in two parts; the main body of the luminaire, and the pole mount arm. These two parts must be assembled prior to installation. Luminaire and Pole Mount Bracket Assembly +/-15° +/-15° • Feed the supply cable through the pole mount arm before securing it to the luminaires main body.
- Page 5 Mechanical installation • Secure unit onto pole using supplied grub screws. Electrical connection, connect mains supply cable to mains supply at base of column. If the unit is opened for any reason, disconnect mains If carrying out Insulation Resistance tests the normal method of insulation testing is to connect Live and Neutral together and test between this point and Earth to prevent the risk of damage to the electronic control gear.
- Page 6 Input Voltage 110-254V AC Input Current (230Vac, full load) 0.26A Consumption Power Factor (230Vac, full load) >0.97 Mains Frequency Inrush Current (I @50%) peak Total Harmonic Distortion (230Vac, full load) IP Rating IP66 Weight (std) Dimensions See previous pages for line diagrams ATEX and IECEx and UKEX Rating See above Inrush Current Typical Curve...
- Page 7 Declaration Of Conformity With The Atex Directive 2014/34/EU & UK Directive SI 2016 No. 1107 (as amended) Raytec Ltd. declares under our sole responsibility that the product(s) listed below conform with the relevant provisions of directive 2014/34/EU of 20 April 2016 and UK Directive SI 2016 No.
- Page 8 Raytec Global (excluding Americas) Raytec Americas Tel: +44 (0) 1670 520055 Tel: +1 613 270 9990 #05-34, Ubi Techpark (Lobby B), 10 Ubi Crescent, Singapore 408564 sales@raytecled.com sales@raytecled.com Tel. +65 6814 9717 +65 6025 3019 Raytec Ltd. Raytec Systems Inc. Unit 15 Wansbeck Business Park, Rotary Parkway 800-300 Terry Fox Drive, Ottawa, Ontario sales@fseprojects.com...
