PSP DTS-1 Installation Manual

Technical Data
• Voltage rating: 12VDC
• Voltage limit: +10%
• Hysteresis: ≤2 sec/day (25℃)
• ON/OFF operation: 16 ON & 16 OFF
• Power consumption: 7.5VA (max)
• LCD display
• Switching contact: 1 changeover
switch
INSTALLATION NOTES

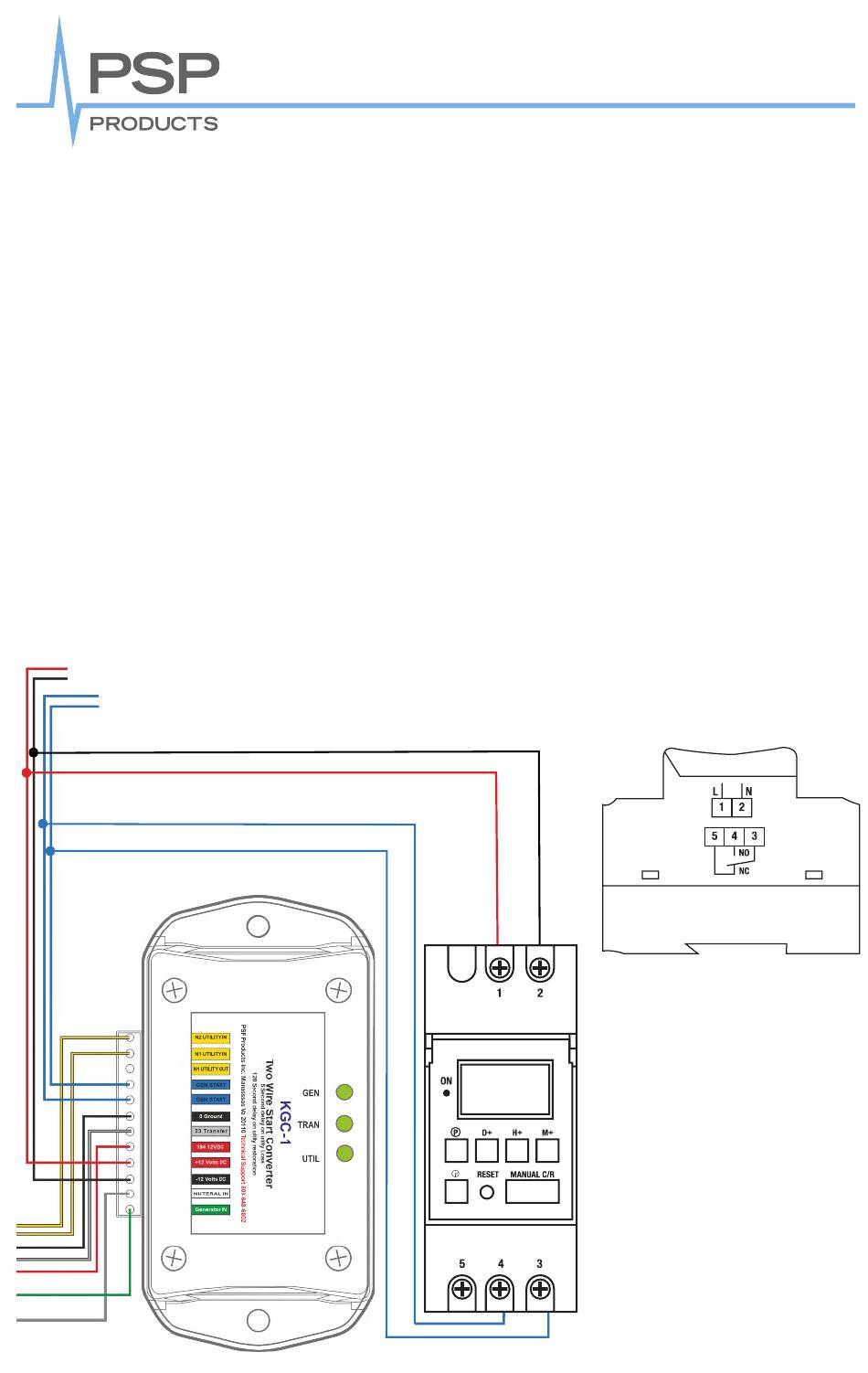

Connections 3,4 & 5 orientation can vary depending on production runs. Always attach start wires
to NORMALLY OPEN terminals per the diagram on the actual timer received
12VDC From Battery
2-Wire Start Signal
Important Note: Connections 3,4 &5 orientation can
vary depending on production runs. Always attach
start wires to NORMALLY OPEN terminals per the
diagram on the actual timer received
DTS-1 Programmable Timer
• Power reserve: 3 years (lithium
battery)
• Minimum interval: 1 minute
• Ambient temperature: -10~+40℃
• Weight: approx 150g
• Ambient humidity: 35-85% RH
Installation Guide
POWER: 12V DC/AC
