PSP DTS-1 Specifications And Installation

Features

• DIN RAIL Installation
• Advanced pre-setting one week before
• Digital electronics general purpose time switch with daily and programs
• Repeat programs with 16 on/off settings, and manual override
• Lithium battery power reserve when electric supply cut off
• Auto time error correction ±30 sec, weekly

Technical Data

• Voltage rating: 12VDC
• Voltage limit: +10%
• Hysteresis: ≤2 sec/day (25℃)
• ON/OFF operation: 16 ON & 16 OFF
• Power consumption: 7.5VA (max)
• Display. LCD

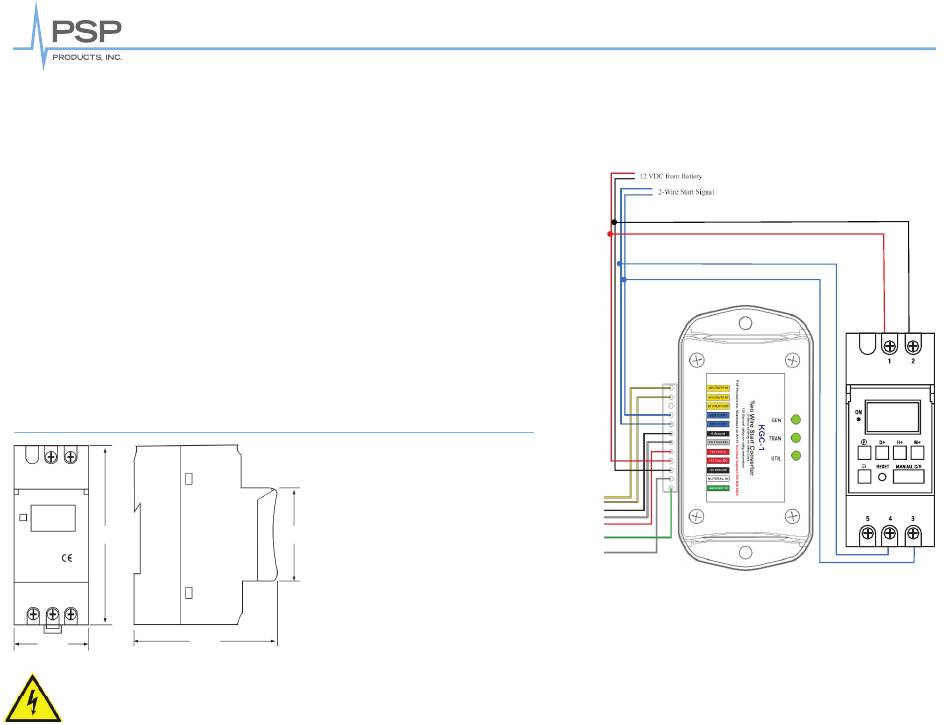

Dimensions

3.4"
1.4"
Important: Risk of electrical shock.
This device should only be installed by qualified personnel.
• Switching contact: 1 changeover switch
• Power reserve: 3 years (lithium battery)
• Minimum interval: 1 minute
• Ambient temperature: -10~+40℃
• Weight: approx 150g
• Ambient humidity: 35-85% RH
1.8"
2.6"
DTS-1 Programmable Timer
Specifications and Installation
INSTALLATION NOTES
Important Note: Connections 3,4 &5 orientation can
CONNECTIONS 3,4 & 5 ORIENTATION CAN VARY DEPENDING ON PRODUCTION vary depending on production runs. Always attach
•
RUNS. ALWAYS ATTACH START WIRES TO NORMALLY OPEN TERMINALS PER
start wires to NORMALLY OPEN terminals per the
THE DIAGRAM ON THE ACTUAL TIMER RECEIVED
diagram on the actual timer received
Technical Assistance: 703-687-4057
