OMT PUL-CA01-00 User Manual

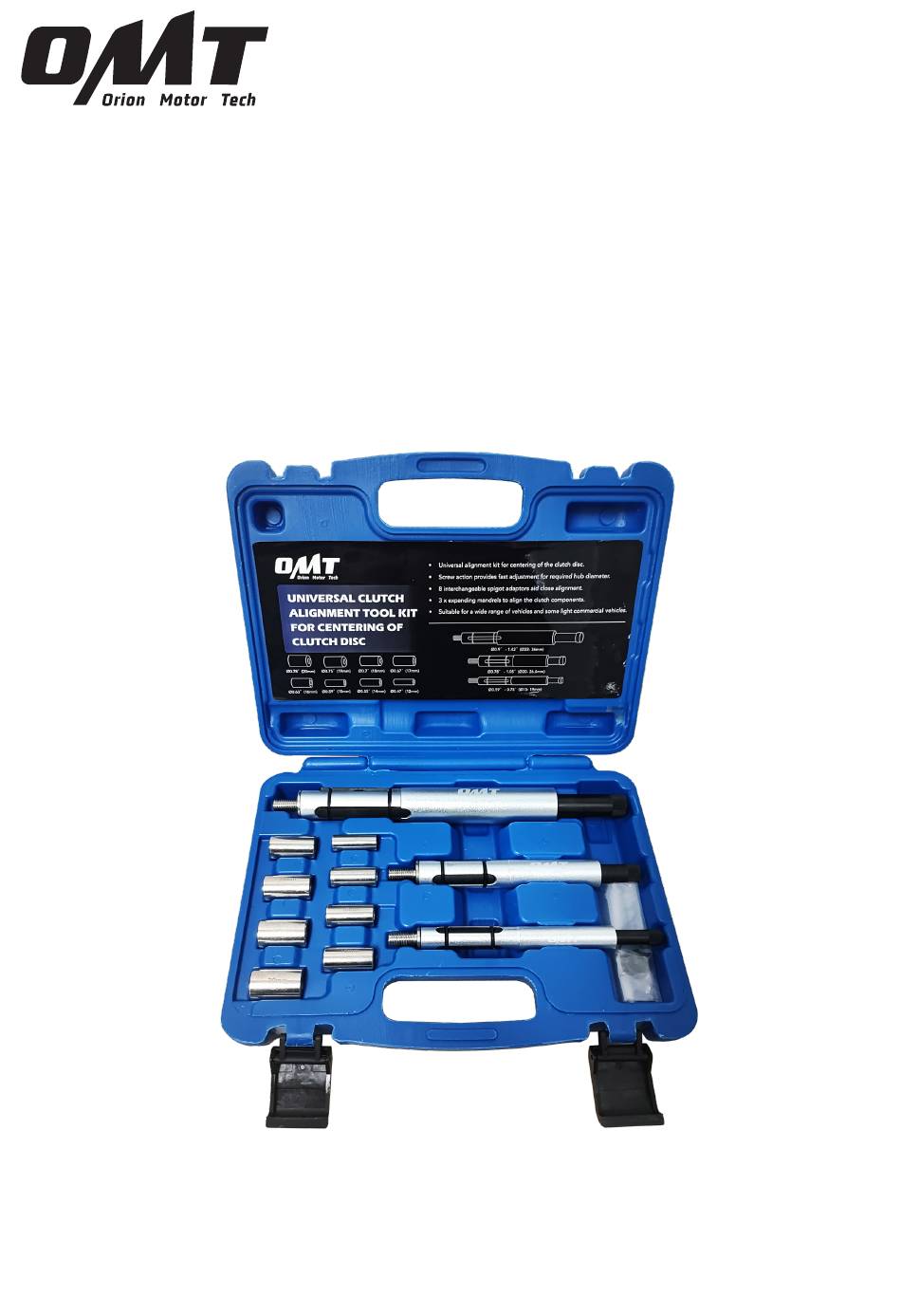

11 pc. universal clutch centering tool
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

V20231225
11 Pc. Universal Clutch Centering Tool
User Manual
Read Carefully Before Use
Keep for Future Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUL-CA01-00 and is the answer not in the manual?

Questions and answers

Related Manuals for OMT PUL-CA01-00

Summary of Contents for OMT PUL-CA01-00

  • Page 1 V20231225 11 Pc. Universal Clutch Centering Tool User Manual Read Carefully Before Use Keep for Future Reference...

  • Page 2: Safety Information

    Safety Information DANGER! • The instructions provided herein are only for general information. ALWAYS perform all repairs in full compliance with your vehicle’s service manual. After any repair, test your engine and vehicle in your workshop and at low speed before returning to normal use. Failure to do so may result in serious property damage and severe personal injury.

  • Page 3: Specifications

    Specifications Large Spindle with Expanding Mandrel Weight Outer Diameters 1.1 lb. (490 g) 0.9–1.42 in. (23–36 mm) Length 10.12 in. (257 mm) Thread Length 0.63 in. (16 mm) Material Thread 45 Steel, Aluminum Alloy Medium Spindle with Expanding Mandrel Weight 0.4 lb.

  • Page 4: Package List

    Package List Items Outer Diameter Qty. 0.47 in. (12 mm) 0.55 in. (14 mm) 0.59 in. (15 mm) 0.63 in. (16 mm) Pilot Bearing Adapters 0.67 in. (17 mm) 0.71 in. (18 mm) 0.75 in. (19 mm) 0.78 in. (20 mm) 0.59 in.

  • Page 5: Operation

    Assembly Installing Spigot Adapters 1. Select the correct expanding mandrel and adaptor for your vehicle. 2. Turn the adapter to fix it onto the expanding mandrel. Replacing the Rubber Washer The mandrel should have arrived with the rubber washers installed. If not or broken, follow the steps to replace or install it.
  • Page 6 Insert the spindle with the adapter end first through the center hole of the clutch disc. Slide your new clutch disc (not included) onto the transmission input shaft, ensuring it is oriented correctly. Many clutch discs have a "flywheel side" and a "pressure plate side." The splined center of the clutch disc should engage with the transmission's input shaft.

  • Page 7: Maintenance

    Maintenance Before Each Use Inspect the general condition of the tool kit. Check for misalignment or binding of moving parts, cracked or broken parts, and any other condition that may affect its safe operation. If abnormal noise or vibration occurs, have the problem corrected before further use. After Use wipe clean with a damp cloth, using a mild detergent or mild solvent.
  • Page 8 P U L - C A 0 1 - 0 0 Rev. 25 Dec. 2023...
