Summary of Contents for Kinghome WK-010WD1

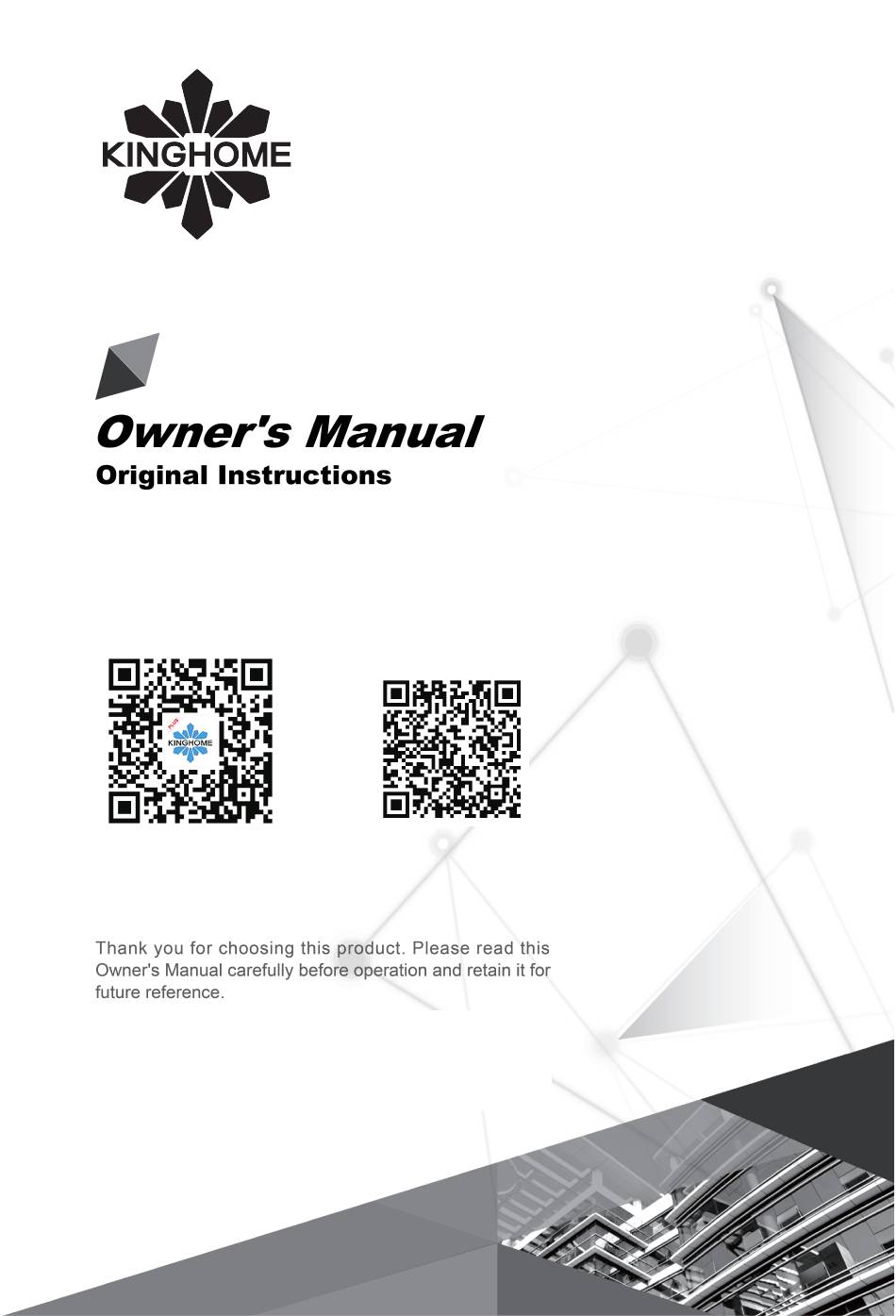

- Page 1 Thermostat Model: WK-010WD1 App Guide KINGHOME PLUS...
- Page 2 To Users Thank you for selecting KINGHOME product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve...
-
Page 3: Table Of Contents
Contents 1 Safety Notices (Please be sure to abide) ......1 2 User Notice ................. 1 3 Installation Instructions ............ 1 3.1 Installation Requirements ............2 3.2 Wiring Instructions ..............3 3.3 Installation Steps ..............3 3.4 Removal Steps ................ 4 4 Homepage Display ............. -
Page 4: Safety Notices (Please Be Sure To Abide)
Thermostat 1 Safety Notices (Please be sure to abide) WARNING: If not abide them strictly, it may cause severe damage to the unit or the people. NOTE: If not abide them strictly, it may cause slight or medium damage to the unit or the people. This sign indicates that the items must be prohibited. -
Page 5: Installation Instructions
Thermostat 3 Installation Instructions Figure 3.1 Parts of Thermostat ① ② ③ Tapping screw Touch screen of Name (for fixing the rear cover Rear cover of thermostat thermostat of thermostat on the wall) Quantity 1 piece 2 pieces 1 piece Unit: Figure 3.2 Dimension of Thermostat 3.1 Installation Requirements... -
Page 6: Wiring Instructions
Thermostat 3.2 Wiring Instructions 3.2.1 Wire Selection Cord length L(feet) Cord size (mm /AWG) L≤164 2×0.3mm ~2×0.8mm (2×AWG22~2×AWG18) Attention： The communication cords must use light/ordinary polyvinyl chloride sheathed cords. If the thermostat is installed in a place with strong electromagnetic interference, communication cords of thermostat must use shielded cords. -
Page 7: Removal Steps
Thermostat In step ②, connect the communication wire to H1 and H2 terminals, and connect the 24VAC power cord to C and R terminals. In step ③, insert the screen into the rear cover and slide down to clip. 3.4 Removal Steps Figure 3.4 Removal Diagram Please use the following steps to complete removal: In step ②, slide up to remove the screen from the rear cover of the... -
Page 8: Function Instructions
Thermostat Name Instruction ● The current system date is displayed on the left and the current time is displayed in the middle. ● The outdoor temperature is displayed between the Homepage status bar current system date and the current time. ●... -
Page 9: Weekly Schedule Page
Thermostat Error query When the indoor unit occurs error, the error icon " " will appear. You can click the icon to view the detailed error information. Figure 5.2 Error Query Page 5.2 Weekly Schedule Page On the homepage, click the "Weekly Schedule" button to enter the weekly schedule page and set the weekly schedule function. -
Page 10: Function Page
5.4 App Control The "KINGHOME PLUS" App can be used to remotely control the thermostat. Please scan the QR code on the cover or search for "KINGHOME PLUS" in the Apple App Store or Google Play Store to download. After the "KINGHOME PLUS" App is installed, new users will need to register an account and add the device to achieve WiFi control and LAN control of KINGHOME smart home appliances. - Page 11 Thermostat NOTES: If router’s name and password have been changed, please reset WiFi and add the device again. WiFi networking performance is related to the distance between the thermostat and the router and the obstacles between them. During the installation process, the distance between the thermostat and the router should be as close as possible, and the obstacles should be as little as possible.
