- Page 1 Quick start guide for AUTOTERM modem QSTART Scan the QR code to download the Autoterm Control application. Manufacturer: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167 Warranty Department warranty@autoterm.com Technical Support service@autoterm.com www.autoterm.com...
-
Page 2: Specifications

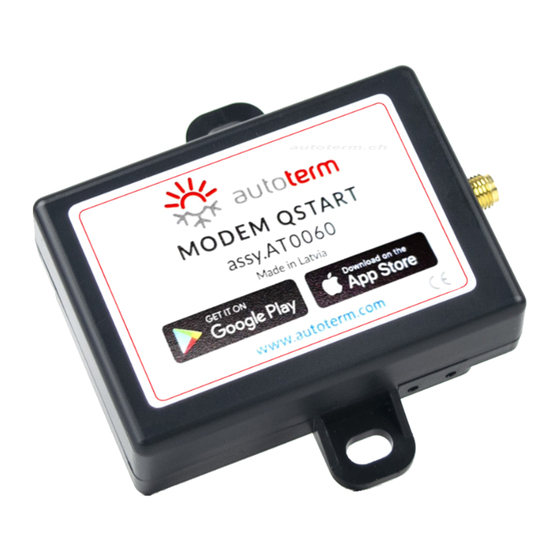

Modem QSTART is device with the ability to use Autoterm Control application on smartphone (available at Google Play and AppStore) to control any AUTOTERM AIR series or FLOW series heater (referred to for ease as “product” or “products” throughout). The modem is used for manual and automatic control of the product and for sending data to a phone using SMS messages. -
Page 3: Sim Card Setup
4.1. SIM Card Setup First of all, put the new SIM card in the phone, remove the PIN code and delete all preset contacts from it. Attention! The SIM card has to be without voicemail. Ask your network provider to remove voicemail option from your SIM card. To insert MICRO-SIM card, unscrew two screws from the bottom of the modem and take off top casing of the modem. -
Page 4: Preparation Of Sim Card
Fig. 3. Modem connection to AUTOTERM heaters 4.3. Preparation of SIM Card To control the products by means of SMS-commands, phone numbers of SIM cards from which you plan to maintain control should be added to the contacts of the modem SIM card. - Page 5 Example of working with trusted numbers using SMS-commands: Direction SMS text Description admin+71234567891 To modem Adding administrator number Admin:+71234567891 Modem response add+71234567892 To modem Adding trusted number +71234567891 Modem response +71234567892 add+71234567893 To modem Adding trusted number +71234567891 +71234567892 Modem response +71234567893 Viewing the list of trusted list...
- Page 6 The product can be controlled by means of an application installed on a mobile phone with Android or iOS operating system. To do this, you need to download the app Autoterm Control SMS from Play Store or from AppStore and install it on your phone.
- Page 7 (country code) (city/wireless carrier code) (phone number) Example number: +71231234567 When adding either an AIR series or FLOW series heater, select QSTART in the Modem section. When that is completed press “Save” 2 – When a voice call to the modem number is made, an SMS status notification is returned.
-
Page 8: Description Of Commands
8. Controlling the Product by Means of SMS-Commands Sent from Mobile Phone If your phone does not support installation of the Autoterm Control application, the product can be controlled by means of SMS-commands typed in manually. SMS-commands should be sent to the number of the SIM card installed in the modem. - Page 9 W – Air series heater operation mode. 1 – to temperature of electronic-heater unit board, 2 – to panel temperature, 3 – to temperature of exterior (cab) sensor, 4 – to power set from control panel. The default option is 4. p –...
- Page 10 Example SMS message confirming receipt of the start-up command: Start confirmation Mode: Ignition U= 12.5V Tset= 23C >Tplnr 25C Text –-C Tpnl –C Vent OFF Work Time 01:15 Example SMS message for a failure: Information Mode: Blowing U= 12.5V Tset= 23C >Tplnr 24C Text –-C Tpnl –C...
- Page 11 T – Operation time in minutes. For Flow series heater, the time can range from 20 to 120 minutes. For Air series heater, the time can range from 20 minutes to an indefinite period. For unlimited-time operation, set the value 65535.
- Page 12 Example response text: Parameters. Mode: Ignition U= 12.5V >Power: 5 Tplnr 25C Text –-C Tpnl –C Work Time 00:03 Shutdown SMS text: *3.P Description of parameters: Р – AIR or FLOW series heater sending confirmation of successful receipt of the command. 1 –...
- Page 13 Example SMS response from Flow series heater: Information Mode: Ignition U= 11,2V T= 02C Work Time 00:02 Example SMS response from Air series heater: Information Mode: Ignition U= 12.5V >Power: 9 Tplnr 25C Text –-C Tpnl –C Work Time 00:03 Setting start-up time SMS text for Flow series heater: *5.PП...
- Page 14 W – Air series heater operation mode: 1 – to temperature of electronic-heater unit board, 2 – to panel temperature, 3 – to temperature of exterior (cab) sensor, 4 – to power set from control panel. The default option is 4. p –...
- Page 15 t – Transition temperature to standby mode when operating as a preheater [20..95]°С. Default 88°С. W – Auxiliary heater mode. 0 – auxiliary heater mode turned off, 2 – automatic mode of auxiliary heater turned on, 3 – manual mode of auxiliary heater turned on. R –...
- Page 16 Example 2: Settings: Tw=88C – transition temperature to standby mode (heater) 88ºC. – manual mode of auxiliary heater turned on. Tr=40C – cabin heater relay ON temperature 40ºC. P=PWM – pump control signal with PWM. PC=P+M – pump operation when the heater and engine are running. Sp=ON –...
- Page 17 Requesting Air or Flow series heater serial number and software version SMS text: *9# In response to this command, an SMS message with the Air or Flow series heater serial number and the version of the software of the electronic unit and software version of the modem is sent.
-
Page 18: Warranty
Warranty 10.1. The warranty period is 24 months from the date of sale of the product, on condition that the user complies with handling, transportation and storage requirements and as provided by the operation manual. 10.2. In the absence of the stamp of the seller organization with the date of sale the warranty period is calculated from the date of manufacture of the modem.
