AUTOTERM Qstart Connection And Set Up Manual

Hide thumbs Also See for Qstart:

Autoterm

Qstart

connection and

set up manual

Table of Contents

Need help?

Do you have a question about the Qstart and is the answer not in the manual?

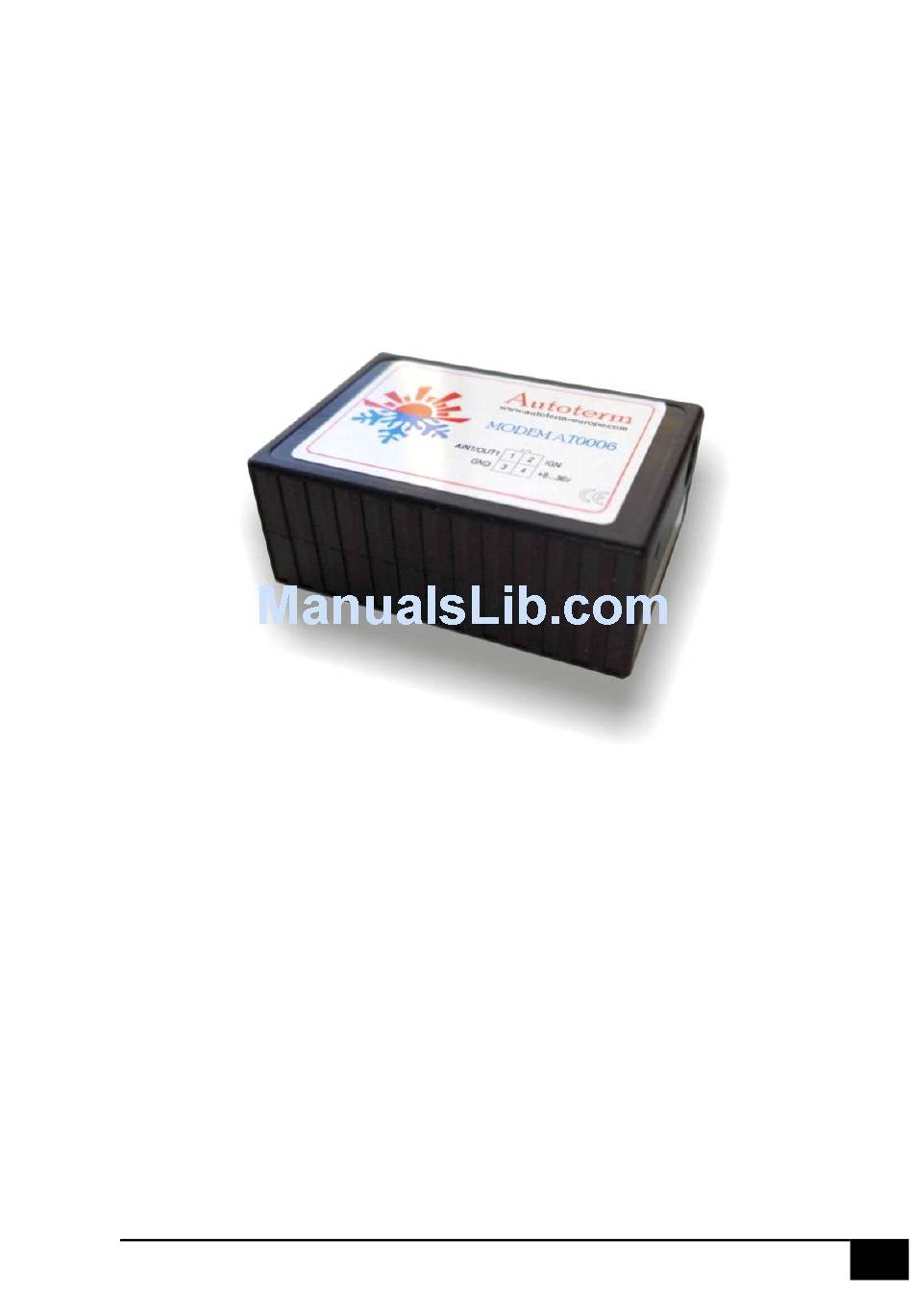

Page 1 Autoterm Qstart connection and set up manual...
Page 2 Autoterm Qstart (assy.AT0006) modem comes with a connector and connection wires. Also the modem can be equipped with an GPS antenna. To connect Qstart modem to your heater there is two possibilities: First: Connecting Qstart modem to control panel If you have control panel with additional wire (it can be in...
Page 3 You need to connect wires from modem like this: Red wire connects to battery (+) Yellow wire connects to ignition or battery (+) Black wire connects to battery (-) Purple wire connects with control panel additional wire (yellow or pink)
Page 4 Second: Connecting Qstart modem to heater trough relay If you don`t have additional wire to heater, then you need to connect modem to heater like this scheme Attention!!! You need to get 4 pin relay for this connection type like in picture...
Page 5 From heater (Modem wires) goes two wires brown and white Those wires connects to "30" and "87" pins of relay One more wire from battery (+) Connects to "86" pin of relay...
Page 6 Qstart Setting up Modem If one of these connection methods are done you need to insert sim card with no numbers in memory and without pin code Factory settings for this modem is for connection with control panel Remember if you connect this modem with relay, first you need to...
Page 7 Status indication LED If you have additional GPS antenna you can get GPS data with this command:...

At0006
