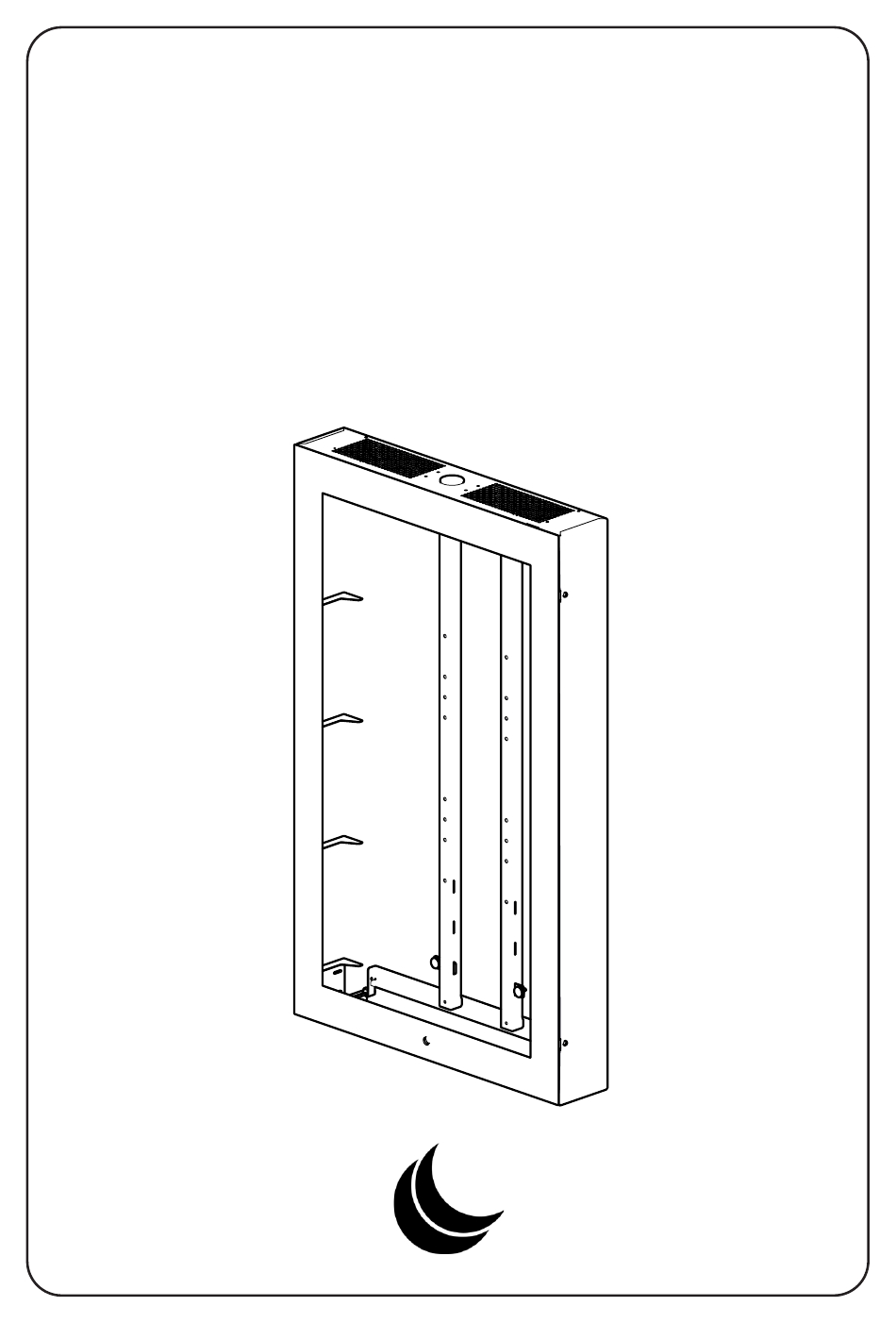

- Page 1 Installation Guide SPDS1004 SpacePole Universal indoor enclosure (55”) – Single sided Step 2 of 2 MK15-0459 version 1.0 02/2024...
- Page 2 CAUTION • Please ensure that you read and understand the contents of the installation guide before you begin the installation process. • This product must be installed by a professional installer. More than one person needs to be involved in the installation of this product. •...
-
Page 3: Tool List
Tool list Box content 1x (security allen 1x (A) 2x (B) key 4mm) 4x (M8x60) 4x (M8 washer) 4x (M8x35) 4x (M8x25) 4x (M8x16) 4x (M8x12) 4x (Ø8,5 spacer) - Page 4 Install indoor base or window mount first SPDS1101-SPDS1103 (MK15-0382) SPDS1100 SPDS1104 (MK15-0380) (MK15-0460)
- Page 5 Install enclosure on top of base or window mount Use fixings from SPDS1104 Use fixings from SPDS1100 Use fixings from SPDS1101-1103...
- Page 6 Fix brackets on to the back of the screen 4x VESA screws Use the appropriate VESA pattern and fixings for the screen.
- Page 7 Optional: Mount support brackets Three positions for optional screen support 4x (M4x6)
- Page 8 Loosen the nuts for adjustments...
- Page 9 Hook screen in to the enclosure...
- Page 10 If necessary adjust bolts to level the screen...
-
Page 11: Align Screen
Align screen Align screen with the front of the enclosure... -
Page 12: Measure Distance
Measure distance Adjust the lower horizontal brackets to reflect the same distance applied to the upper horizontal bracket and tighten the nuts. - Page 13 Remove screen...
- Page 14 Secure brackets Adjust the lower horizontal brackets to reflect the same distance applied to the upper horizontal bracket.
- Page 15 Hook screen in to the enclosure...
-
Page 16: Cable Management
Cable management Remove cap prior to running the cable. Two options for cable management. - Page 17 Close enclosure 2x (M6x10 Secure screw) Use security allen key...
- Page 20 Need help? Contact us ergonomic.solutions/about/contact-us spacepole.com/about/contact-us...
