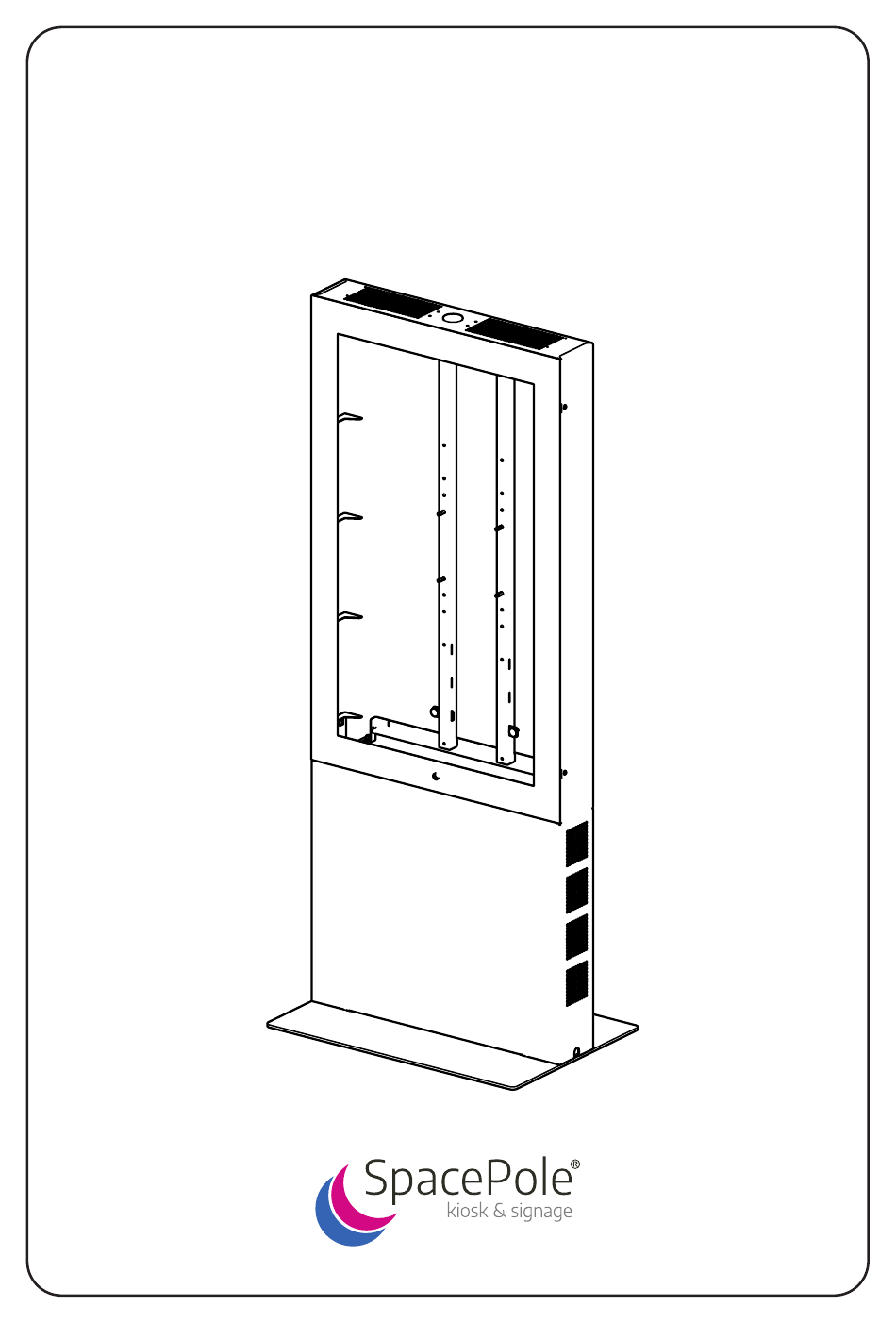

- Page 1 Installation Guide SPDS10041 55” freestanding enclosure SPDS10041 = SPDS1114 + SPDS1004 MK15-0499_V1.0 11/2024...
- Page 2 This Page Intentionally Left Blank...
- Page 3 Installation Guide SPDS1104 / SPDS1114 55” totem mount / 55” freestanding totem mount Step 1 of 2...
- Page 4 If these installation instructions are not followed precisely, it could lead to product failure and potential personal injury. • Ergonomic Solutions / SpacePole inc. cannot be held responsible for any prod- uct failure or personal injury, if the installation instructions are not followed correctly.
- Page 5 Tool list Tool list Box content SPDS1104 1x (A) 2x (B) 1x (C) 1x (D) 1x (E) 1x (F) 1x (G) 2x (M4x8) 6x (M6x12) 6x (M6x6) 6x (M8x20) 6x (M8 nuts) 2x (Ø4 washer) 2x (M4 nuts)
- Page 6 Box content SPDS1114 1x (A) 2x (B) 1x (C) 1x (H) 1x (E) 1x (F) 1x (G) 2x (M4x8) 6x (M6x12) 6x (M6x6) 6x (M8x20) 12x (M8 nuts) 2x (Ø4 washer) 2x (M4 nuts)
- Page 7 Remove covers...
- Page 8 Position base on floor For SPDS1104 only 35 mm 668 mm Mark screw holes with base as template...
- Page 9 Mount base and run cables 8x Floor fixings (Not included)
- Page 10 Mount cover Do not tighten. 2x (M4 nuts) 2x (Ø4 washers...
- Page 11 Mount enclosure 6x (M8x20)
- Page 12 Secure enclosure 2x (M6x12)
- Page 13 Adjust cover and tighten fixings 2x (M4 nuts) 6x (M8x20) 6x (M8 nuts)
- Page 14 Mount peripheral plate 4x (M6x6)
- Page 15 Mount Separator part 1 2x (M6x6) Mandatory for Samsung screens...
- Page 16 Mount internal hardware Hardware must be placed below the separator.
-
Page 17: Cable Management
Cable management Run cable through hole located on the separator. - Page 18 Mount Separator - part 2 Mandatory for Samsung screens...
- Page 19 Mount back cover Support back cover until fully secured. 2x (M6x12) Open door for access.
- Page 20 Need help? Contact us ergonomic.solutions/about/contact-us spacepole.com/about/contact-us...
- Page 21 This Page Intentionally Left Blank...
- Page 22 This Page Intentionally Left Blank...
- Page 23 Installation Guide SPDS1004 / SPDS1006 55” enclosure / 55” kiosk Step 2 of 2...
- Page 24 If these installation instructions are not followed precisely, it could lead to product failure and potential personal injury. • Ergonomic Solutions / SpacePole inc. cannot be held responsible for any product failure or personal injury, if the installation instructions are not followed cor- rectly.
-
Page 25: Box Content
Tool list Box content 1x (A) 2x (B) 1x (security allen key 4mm) (Included in part A) 2x (C) 2x (M6x10) 2x (M6x12 Only for SPDS1006 Secure screw) MK10-0076 4x (M8 4x (M8x35) 4x (M8x25) 4x (M8x16) 4x (M6x12) 4x (M8 washer) nylon spacer) - Page 26 Install mount first Follow the steps in the mount’s installation guides (Step 1 of 2) SPDS1104 SPDS1100 SPDS1101-SPDS1103 (MK15-0460) (MK15-0380) (MK15-0382)
- Page 27 Install enclosure on top of the mount Use fixings from SPDS1104 Use fixings from SPDS1100 Use fixings from SPDS1101-1103...
- Page 28 Fix brackets on to the back of the screen MK15-0076 M8x35 M8x25 M8x16 M6x12 VESA 600 M8 spacer VESA 400 VESA 300 M8 washer VESA 200 Use the appropriate VESA pattern & fixings for the screen. Fixing bag MK15-0076 is included - suitable for most screens.
- Page 29 Optional: Mount support brackets Using the support brackets are optional. They are only needed if the bottom of the screen needs additional support to keep the front of the screen straight. Side view For repositioning of the support brackets, remove 4x (M4x6mm) screws & pull out the brackets. Reposition the support brackets to the most suitable option.
- Page 30 Loosen the nuts for adjustments Loosen the two nuts for the top adjusting bracket, allowing it to move in and out in the rails. Loosen the two nuts for the bottom adjusting bracket, allowing it to move in and out in the rails.
- Page 31 Measure screen thickness Screen Side view S c r e Measure screen thickness (Xmm) or get value from the screen techni- cal specification sheet. Note, total adjustment is 78mm. Minimum recommended screen thickness: 28mm. Maximum recommended screen thickness: 106mm.
- Page 32 Adjust top & bottom mounting brackets Measure from the enclosure back wall to front lip of the mounting brackets (132mm - Xmm) ±1mm. Repeat the measurements for top/ down, left/right side of both brackets. Fully tigthen the 4x nuts.
- Page 33 Cable management Option with cable management done from enclosure to ceiling. Remove the top cap & route cable(s). Option with cable management done from enclosure to floor Remove the bottom cap & route cable(s).
- Page 34 Hook screen in to the enclosure Hook the screen onto the VESA mounting brackets. Check if screen is aligns with enclosure & adjust accordingly. Turning left screw clockwise will raise the left side of the screen & turning right screw clockwise will raise the right side of the screen.
- Page 35 Mount side stop for adjustable VESA system For SPDS1006 only Tigthen the 2x nuts.
- Page 36 Close enclosure & check screen alignment Carefully close the enclosure door. Verify that the screen sits flush up against the glass. If necessary go back to step 5, 6 & 8 and adjust accordingly.
- Page 37 Secure enclosure M6x10 M6x12 Secure screw Finish installation by installing the two security screws.
- Page 38 This Page Intentionally Left Blank...
- Page 39 This Page Intentionally Left Blank...
- Page 40 Need help? Contact us ergonomic.solutions/about/contact-us spacepole.com/about/contact-us...
