CM9-487 PHOTOCELL SENSOR (50 FEET)
Photocell Sensor Installation
1. Plug the photo-sensor cable to the back of the circuit board box.
2. Press the reset button on the circuit board to activate the power for the alignment laser.
3. Use the included mounting brackets to mount the photocell sensor (minimum 21" off from ground).
4. Press the orange button on the photocell sensor to turn on the alignment laser.
5. Mount the reflector to the opposite side and make sure it leveled with the photocell sensor. Laser
beam must be inside of the laser effective zone (in side the red area (EXCEPT THE LETTER).
6. Press the orange button on the photo-sensor to turn off the alignment laser.

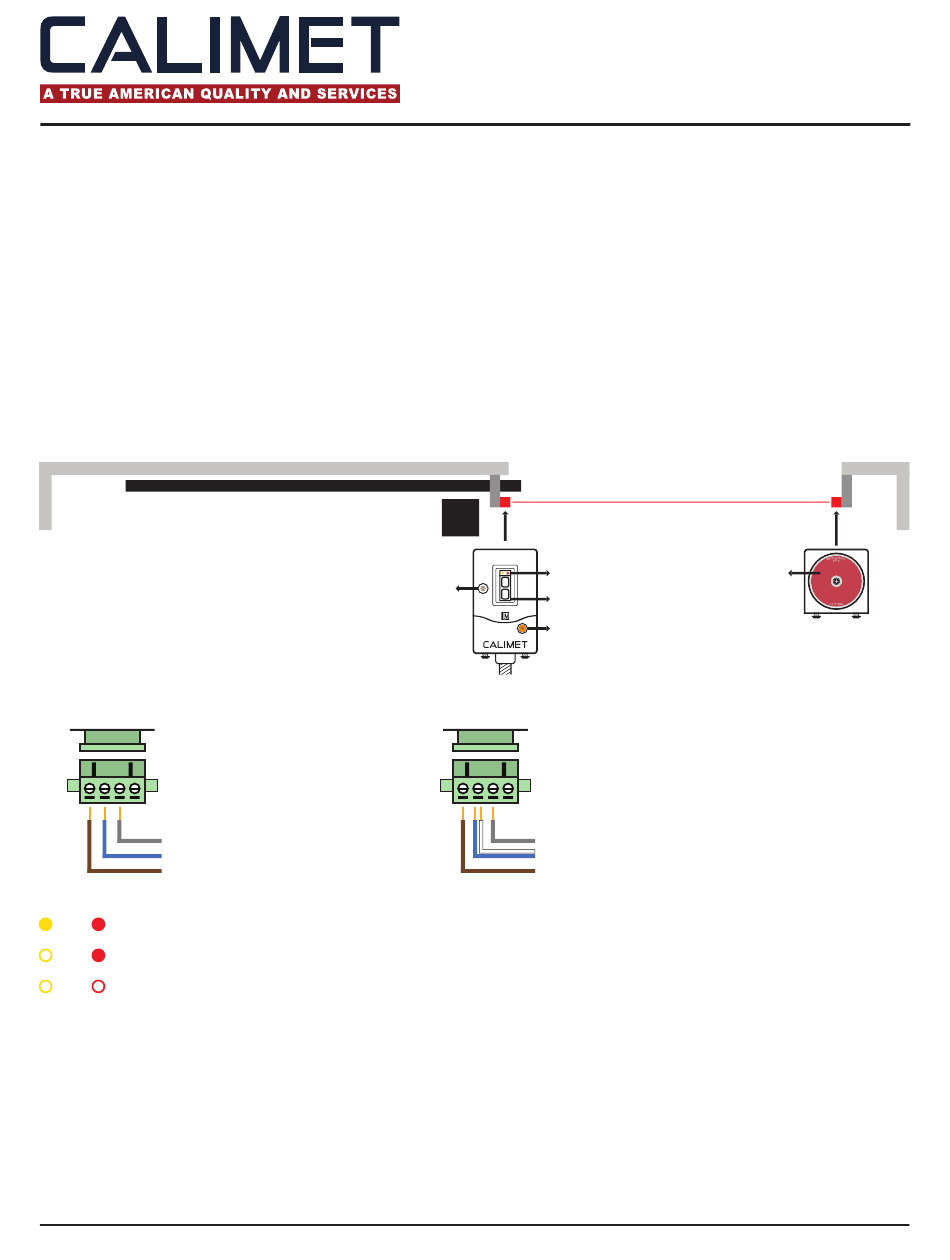

Photocell Sensor Wiring Diagram
3 WIRES WIRING DIAGRAM
MON-CLOSE (GREY)
COMMON (BLUE & WHITE)
MON-24VDC (BROWN)
Photocell Sensor's LED Indicators
- Relay is power, IR Laser beam is inside reflector's effective zone (aligned).
ON ON
- Relay is power, IR Laser beam is on the edge of the reflector (need minor adjustment).
OFF ON
- Relay is not power, or IR Laser beam is obstructed (not aligned).
OFF OFF
Notes:
1. The photoccell sensor cannot be used for a detection area less than 6 inches.
2. The default sensor maximum range is 30ft. If you need longer range upgrade to 50ft (CM9-487).
3. if you need a longer photocell sensor wire, extend it by joining with another 20-22 AWG wire.
CM9-487 USER MANUAL - PAGE 01
PRIMARY PHOTO SENSOR
LASER ON/OFF
PHOTOCELL SENSOR
LED INDICATOR EFFECTIVE ZONE
IR LASER
LASER ON/OFF
4 WIRES WIRING DIAGRAM
MON-CLOSE (GREY)
COMMON (BLUE & WHITE)
MON-24VDC (BROWN)
OUTSIDE
INSIDE
REFLECTOR
V.01.01282025
