Loop Detector Instruction Manual
Wiring Diagram
Loop Wire

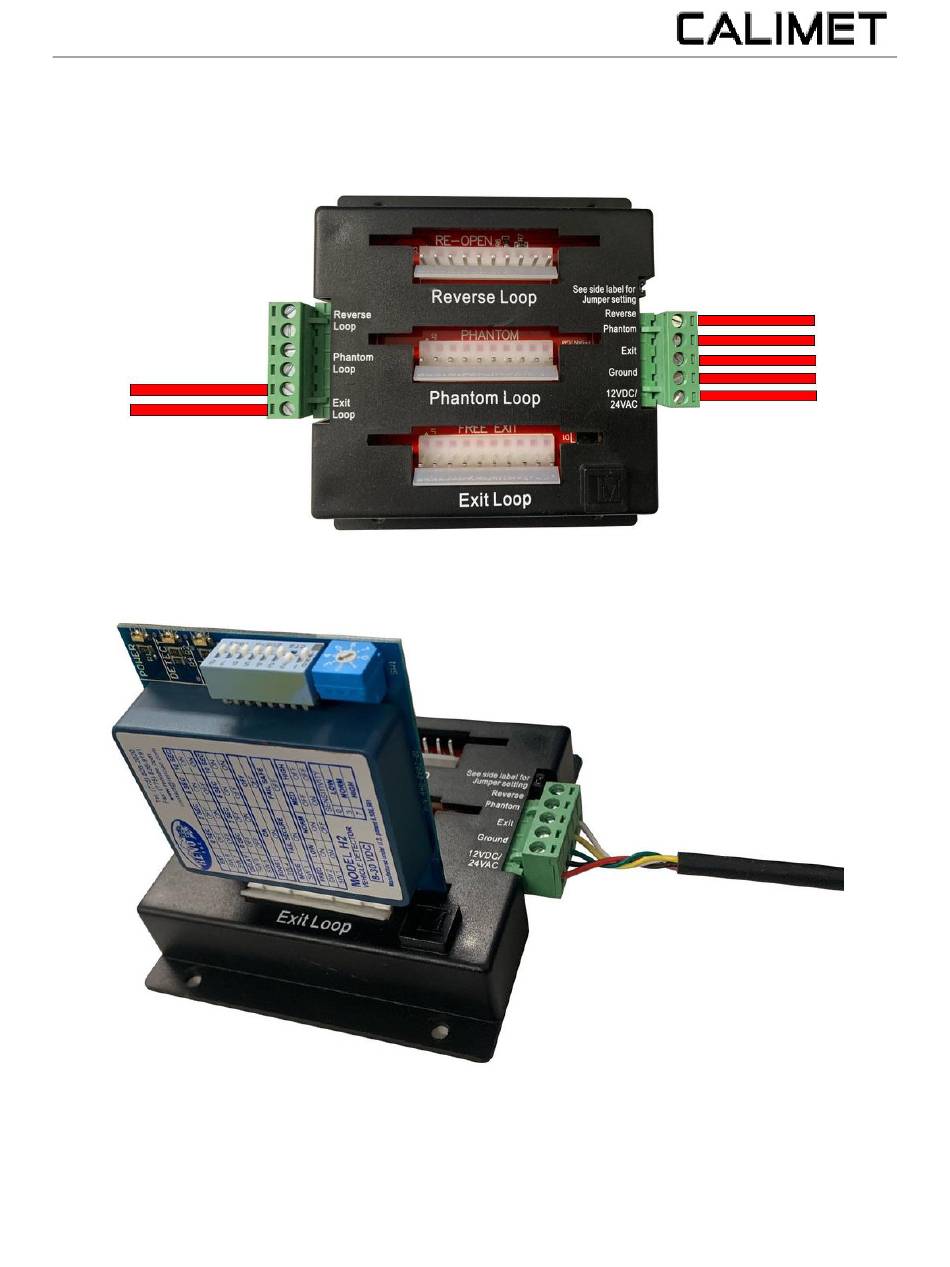

Add the Loop Detector to the Harness
The harness contains a reverse loop, phantom loop, and exit loop. You will need a separate loop
detector for each loop.
Loop wires go into the left side of the block terminal. The terminal accepts loop wires for Exit Loops,
Phantom Loops, and Reverse Loops.
CM9-603
Gate Operator Circuit
Board Wiring
SAFETY
PHANTOM
EXIT LOOP
24V-COM
24-VDC
