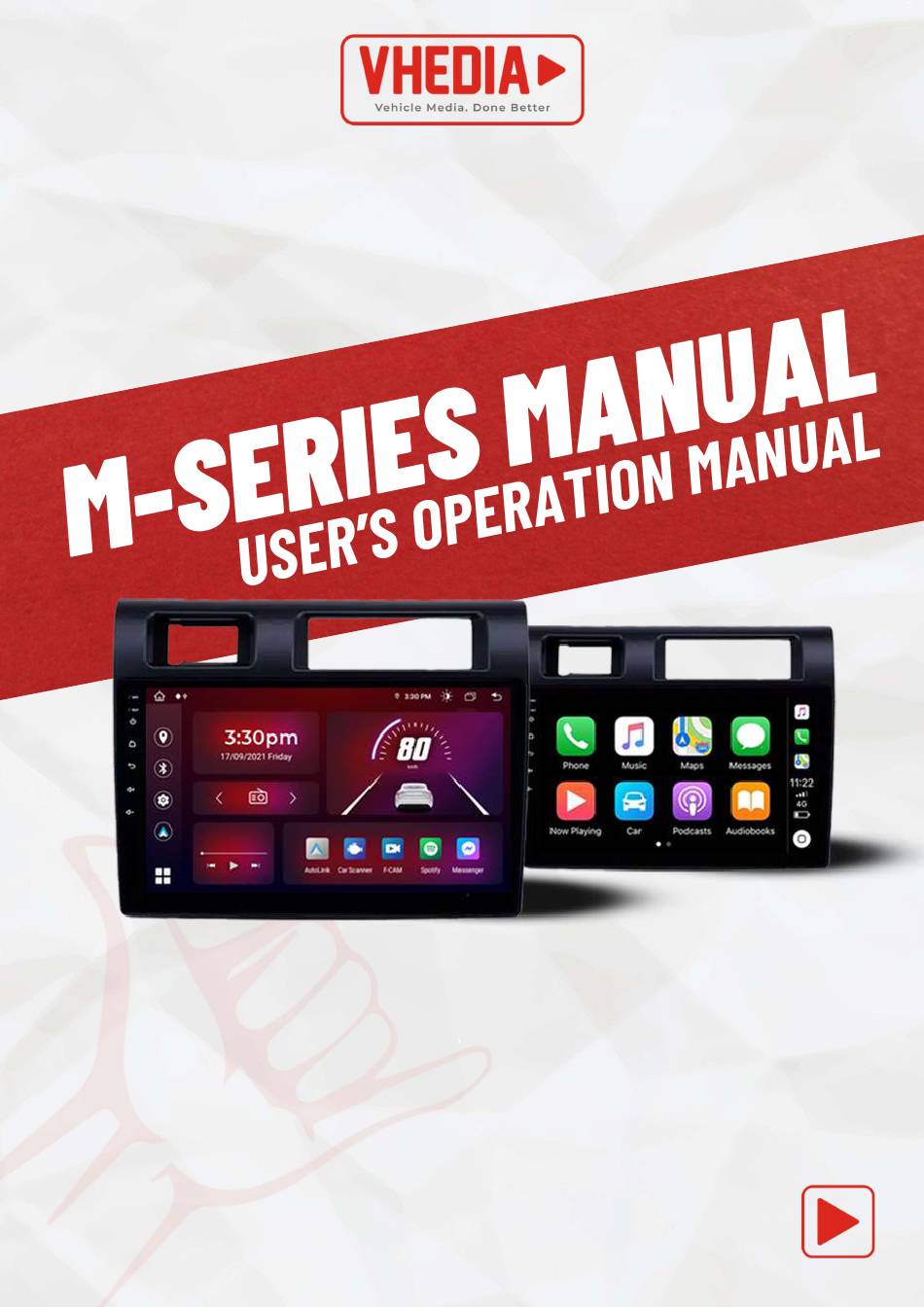

Page 1
This manual will guide you through the installation process, provide an overview of its features, and offer troubleshooting tips to ensure you get the most out of your new head unit. Please read through this manual carefully to familiarize yourself with all the functionalities and safety instructions.
Page 2
P R O B L E M S ? Item not as described? Damaged or Defective? Missing Accessories? Any other issues whatsoever? Get in touch with us, and we'll help you resolve any problem ASAP! hey@vhedia.com.au www.vhedia.com.au 7am – 3pm WST...
Main Interface Operation ..................Bluetooth Operation ..................... Carplay and Android Auto on Vhedia Head Units..........Connecting to Wifi ....................Downloading and Installing apps on your Vhedia Head Unit ......Uninstalling Apps ....................Steering Wheel Control Learning ................ Understand the Head Unit Settings ..............
INTRODUCTION AND PRODUCT OVERVIEW Thank you for purchasing the VHEDIA Head Unit. This product is designed to provide an enhanced driving experience, offering seamless connectivity, intuitive controls, and high-quality multimedia features. The VHEDIA Head Unit allows you to upgrade your vehicle’s infotainment system with ease, delivering everything from superior navigation to advanced audio and video capabilities.
Vhedia will bear no responsibility for these expenses. In the event of a return for a faulty item, Vhedia will organise and pay for the return shipping costs and provide a replacement unit and help troubleshoot the issue.
WARNING To ensure safety and comply with traffic rules, please do not watch videos or operate the unit while driving. Please keep this product away from liquids to avoid electric shock. If liquid or a foreign object enters the head unit, park your car in a safe place, turn off the ignition (ACC OFF) immediately, and consult your dealer.
TECHY STUFF Latest Stable Android Operating System (Head units running on Android is a great way to enhance your car’s entertainment system. It allows you to integrate your smartphone, tablet, or other device into your car’s audio system. 1280*720 IPS, Full HD, Full Colour and Anti Reflect MT8667, CA75x2 (2.0GHz) + CA55x6 (1.8GHz) Mediatek 8GB DDR3 Rom &...
MAIN INTERFACE OPERATION ICONS DEFINITION/FUNCTION (1) Home Icon (Top Left Corner) Takes you back to the main home screen. (2) Map Pin Icon (Left Sidebar) Opens the navigation or mapping application. (3) Bluetooth Icon (Left Opens the Bluetooth settings for pairing and managing Sidebar) connected devices.
Page 11
Displays shortcut icons for various applications. You can customise these shortcuts by pressing and holding an icon, (11) Apps allowing you to select and arrange the apps you use most frequently (12) Brightness/Sun Icon (Moon Indicator whether the head unit is in normal mode (sun icon) or Icon) (Top Right Corner) dim mode (moon icon)Button to put the screen display to sleep.
BLUETOOTH OPERATION Functionality and Purpose of Bluetooth The Bluetooth feature in your VHEDIA head unit allows you to connect your smartphone wirelessly. Once connected, you can make and receive phone calls, play music directly from your phone, and use apps like Android Auto or Apple CarPlay, all through the head unit.
CARPLAY AND ANDROID AUTO ON VHEDIA HEAD UNITS The VHEDIA M Series head units support both Wireless Apple CarPlay and Wired/Wireless Android Auto. These features allow you to mirror and control your smartphone apps directly from the head unit, providing seamless access to navigation, music, and communication apps.
Page 14
C. Pair the Devices: Once your phone appears on the list of available devices, tap on it to initiate pairing. You will receive a notification on your phone asking you to pair the device. Tap “Pair” to complete the connection. Make sure to allow the head unit to access your contacts if you wish to sync them for easier access while driving.
Page 15
D. Confirm connections The Bluetooth icon will turn green, indicating that the connection has been successfully established 2. Open Auto Link: On the head unit, open the PhoneLink/Auto Link app and wait for it to establish a wireless CarPlay connection.
Page 16
3. Confirm Connection: For iPhone or iOS devices, watch for a pop-up notification requesting permission to connect to CarPlay. Simply accept the request, and the connection will be established. For Android devices, a notification for Android Auto is not typically displayed if your phone has successfully paired with the head unit.
CONNECTING TO WIFI The head unit is equipped with WiFi capability, enabling you to wirelessly connect to your iPhone or Android Hotspot, or your Home Network, for internet access. IMPORTANT If Android Auto or CarPlay is already connected, you’ll need to disconnect it to use WiFi.
Page 18
Android: Open Settings. Select Network & internet or Connections. Tap on Hotspot & tethering. Toggle the Wi-Fi/Mobile hotspot switch to turn it on. Take note of the hotspot name and password. 2. Turn ON the head unit’s WiFi To turn on the head unit’s WiFi, you can either: a.
Page 19
b. Navigate to Settings > Network & Internet. 3. Connect the Head Unit to Your Phone’s Hotspot The head unit will automatically start scanning for available networks. Look for your phone’s hotspot name in the list of available Wi-Fi networks and select it.
DOWNLOADING AND INSTALLING APPS ON YOUR VHEDIA HEAD UNIT Your VHEDIA head unit, running on Android OS, offers two primary ways to download and install apps: via the Google Play Store or by manually installing APK files. Below are the detailed steps for both methods.
Page 21
4. Install the App: Tap the app from the search results, then tap "Install." The app will automatically download and install on your head unit. 5. Update Installed Apps: To update apps installed through the Play Store, tap the Profile icon > Manage Apps & Device. You can choose to either "Update All"...
Page 22
We generally recommend downloading apps from the Google Play Store. However, if you need to install an APK file, please ensure the source is trustworthy (such as a file provided by VHEDIA or directed by us). Additionally, not all APK files are compatible with the head unit and may...
Page 23
1. Download the APK File: Using a Computer: Download the APK file onto your computer. Using the Head Unit: Download the APK file directly using the head unit’s browser. 2. Transfer the APK File to the Head Unit (if downloaded via a computer): Copy the APK file to a USB flash drive.
UNINSTALLING APPS To uninstall an app installed by the user (pre-installed apps cannot be uninstalled): Press and hold the app you want to uninstall. Drag it to the trash can icon that appears on the screen. Release the app to confirm the uninstallation.
STEERING WHEEL CONTROL LEARNING The steering wheel controls of the head unit are appropriate for the original car steering wheel controls. Please note that if your head unit has a CANBUS, you may not need to learn the steering wheel control. Tap the SWC icon on the system setting interface, as in the shown picture.
Page 26
Volume Up (+) : Increases the volume of the audio system. Volume Down (-) : Decrease the volume of the audio system. GPS : Activates the GPS navigation system. Microphone : Activates the voice command or hands-free calling feature. Previous Track: Moves to the previous track in the playlist or radio station.
UNDERSTAND THE HEAD UNIT SETTINGS Tap the Gear/Settings icon on the home screen to enter the Settings menu.
Page 28
1. Network & Internet Manage all your network connections including WiFi, mobile data, and tethering options. This section allows you to connect to networks, monitor data usage, and manage SIM cards. WiFi: Connects to available WiFi networks. Mobile Network: Manages mobile data settings. Data Usage: Tracks your data consumption.
Page 29
Common: General settings for the car infotainment system such as Sleep mode, Assistive touch, Reverse Volume Suppression, Boot Logo and Reset All Settings. Display: Adjusts screen brightness, theme style, Auto Mode and other display settings. Volume: Controls audio levels for different functions. Sound: Configures audio output settings.
Page 30
3. Apps & Notifications Manage installed apps and their notifications. You can view app permissions, adjust notification settings, and control app behaviour. 4. Storage Monitor and manage the head unit’s internal storage. This section helps you see how much space is being used and free up storage as needed.
Page 31
5. Memory View and manage the head unit’s RAM usage. This section shows how much memory is in use and available for apps and processes. 6. Accounts Add, remove, and manage accounts like Google or other services linked to the head unit.
Page 32
7. Google Manage Google-specific settings for the head unit, including Google services, preferences, and account details. 8. System Adjust the core system settings like language, date, and time. This section ensures that the head unit’s basic operations are tailored to your preferences. Language: Set the system language.
Page 33
9. About Device Provides detailed information about the head unit, including the Android OS version, custom build version, and hardware details like WiFi MAC and Bluetooth address.
UPDATING THE FIRMWARE To ensure your VHEDIA head unit is running smoothly and with the latest features, it’s important to keep the firmware up to date. Firmware updates can improve performance, add new functionalities, and fix any known issues. We highly recommend checking if your head unit has the latest firmware version installed.
RADIO FEATURE The VHEDIA head unit allows you to save up to 18 radio stations for quick and easy access. Follow the steps below to save your preferred radio stations. Scan for available Radio Stations Turn on the Radio: Switch on your VHEDIA head unit and select either the FM or AM radio mode.
Page 39
Automatic Scan: Tap the magnifying glass icon on the Radio interface to initiate an automatic search for radio stations, starting from the lowest frequency and moving to the highest. To stop the search at any point, tap the magnifying glass icon again Wait until the scanning process is complete.
Page 40
Saving the Station Manually Select a Preset Box: Once you've found the station, choose one of the preset boxes from P1 to P6. These preset boxes are displayed on the screen. Press: Press the desired preset box (P1 to P6) and it will save the station you chose.
FILE MANAGEMENT Search FileExplorer from the head unit’s app menu Tap the icon to select a file/s. Tap the copy icon to copy a file/s. Tap the paste icon to paste the copied file/s. Tap the trash icon to delete files NOTE You can copy and paste files from internal storage to the external one or vice-versa.
B. Pair with the Head Unit: Once the OBD2 Scan Tool is connected, enable Bluetooth on your VHEDIA head unit and pair it with the OBD2 device (refer to page ___ for Bluetooth connection instructions). When prompted, enter...
Page 43
C. Launch the CAR SCANNER App: Open the Car Scanner app on your head unit. If it is your first time using the app, it will ask you to select your language preference, agree to the terms and conditions, and input your vehicle details.
Page 44
D. Establish the Connection: Tap the "Connect" button within the Car Scanner app. Wait for the connection to be established; a "Connected" message will appear once the connection is successful. E. Explore the App’s Features: After successfully connecting, you can begin using the app to explore its features and access a wide range of diagnostic information about your vehicle.
Page 45
2. SIM CARD (3G/4G) (SIM Card is not included in the package) The VHEDIA M Series Head Unit is equipped with a built-in 4G module, allowing your head unit to function like a mobile phone. By inserting a SIM card into the unit, you can enable its own internet connection, make calls, and send texts directly from the head unit.
CARD FEATURE How to set up SIM card feature Locate the 4G Antenna: Find the 4G antenna in your VHEDIA kit. This will be needed to establish a cellular connection. 2. Insert the SIM Card: Gently insert your SIM card into the slot on the 4G antenna.
Page 47
4G icon to appear in the notification bar at the top of the screen. This indicates that the head unit has successfully connected to the mobile network. Scan the QR code below and watch how to set up a SIM card on your VHEDIA head unit:...
HOW TO MAKE CALLS AND SEND TEXTS 1. Making a Call: Open the Phone app on your VHEDIA head unit. Use the keypad to dial the desired number or select a contact from your address book.
Page 49
Press the call button to initiate the call. You will hear the call ringing through the head unit's speakers. To end the call, tap the red hang-up button.
Page 50
2. Sending a Text Message: Open the Messaging app on the head unit. Tap the compose button to start a new message.
Page 51
Enter the recipient’s phone number or select a contact from your address book. Type your message in the provided text box. 2. Sending a Text Message: Open the Messaging app on the head unit. Tap the send button to deliver the message.
STEPS FOR INTERNET SHARING 1. Go to Settings > Network & Internet. 2. Navigate to Hotspot & Tethering.
Page 53
3. Tap Wi-Fi Hotspot 4. Toggle the ON/OFF switch to turn the hotspot on. 5. Once enabled, open the Wi-Fi settings on your phone or tablet and look for the head unit's name in the list of available connections. NOTE You can easily change the hotspot name and password by tapping the menu settings.
ACCESSORIES FOR YOUR VHEDIA HEAD UNIT Your VHEDIA head unit is compatible with a range of accessories designed to enhance your driving experience. NOTE: These accessories are sold separately and can be purchased directly from our website. (www.vhedia.com.au) Scan the QR code...
BASIC TROUBLESHOOTING If you have problems operating the head unit, please refer to this basic troubleshooting guide for a quick solution. If the problem still exists, kindly reach out to us via phone, chat, or email and our lovely techs will assist you with your concerns.
Page 56
FROZEN UP OR RUNNING SLOW Close unused apps. Tap the open apps icon located beside the back icon on the top-right corner of the screen and close all apps that you’re not using. Try rebooting the head unit. Just like other gadgets with processors, it accumulates system cache over time.
TROUBLESHOOTING: 1. CarPlay/Android Auto Connecting Issue If you are having issue with connecting your phone to the headunit's Speedplay app for CarPlay/Android Auto, mainly being stuck on "connecting" or "waiting". Here are a few steps you could try: 1. Make sure that your phone's Android OS/iOS is updated to latest. 2.
Page 58
3. FM/AM Radio Issue If you have a factory radio antenna like the shown in the photo below and you're having a bad to no reception issue on your radio, you will need to turn on the EXT ANT setting so that your factory antenna receives power. Go to apps - Open the DSP app Tap Balance >...
Page 59
Open the Netflx App Navigate to Sign-In Page Enter your credentials. Verify Your Account - If prompted, verify your account by following any additional instructions, such as entering a verification code sent to your email or phone. Restart the App (if necessary) By simply signing back into your account, you should be able to bypass the update message and enjoy your Netflix content.
Page 60
3. Select "CAN Type" 4. Adjust the Door Swap Settings: Locate Swap F-Door (Front) or R-Door (Rear) and adjust the settings to Normal or Swap, depending on your preference.
Page 61
5. Save and Reboot: Save the changes and reboot the head unit. After rebooting, the door notification should display correctly. If the issue you're experiencing isn't listed above, please scan the QR code to visit our Self Help page and search for your specific issue.
1. Go to Settings>Car Infotainment>Video. 2. Look for “Disable Video In Motion” option and toggle it to OFF. 3. How to turn ON/OFF AC display notification on Vhedia Head Unit. Go to Settings > Car Infotainment > Video. Look for the Air Conditioner setting and toggle it to turn it ON or OFF.
Page 63
4. How to Turn ON/OFF the Auto Dim Brightness Feature How Auto Mode Works: When the Auto Mode is turned ON, the display brightness will automatically dim when you switch on the parking lights or headlights of the vehicle. Go to Settings>Car Infotainment>Display Look for the “Auto Mode”...
Page 64
6. How to add/change the start-up logo in your Vhedia Head unit NOTE NOTE: The boot logo will only appear when the head unit undergoes a full start- up sequence or if the Sleep Mode setting is turned off Download a BMP image that you want to use as a boot logo. The resolution needs to match your device, e.g., 1280x720.
Page 65
3. Tap “Erase All Content”Tap “Erase All Content” 8. How to set CAN BUS profile Most of our head units have CAN BUS to help retain factory functions such as factory reverse camera, 360 camera, steering wheel control, etc. (Applies only to head units with CANBUS) By default, the head unit should automatically set the CANBUS setting correctly, however, there are instances where you need to set it manually.
Most setup problems can be easily resolved, and we’ll have you up and running in no time. In the unlikely event that we can't assist you, we’re always happy to provide a full, hassle-free refund under our return window policy. Our primary goal is for you to be happy and proud to use our head unit! While no product is perfect, we will always strive to provide you with perfect customer service.
