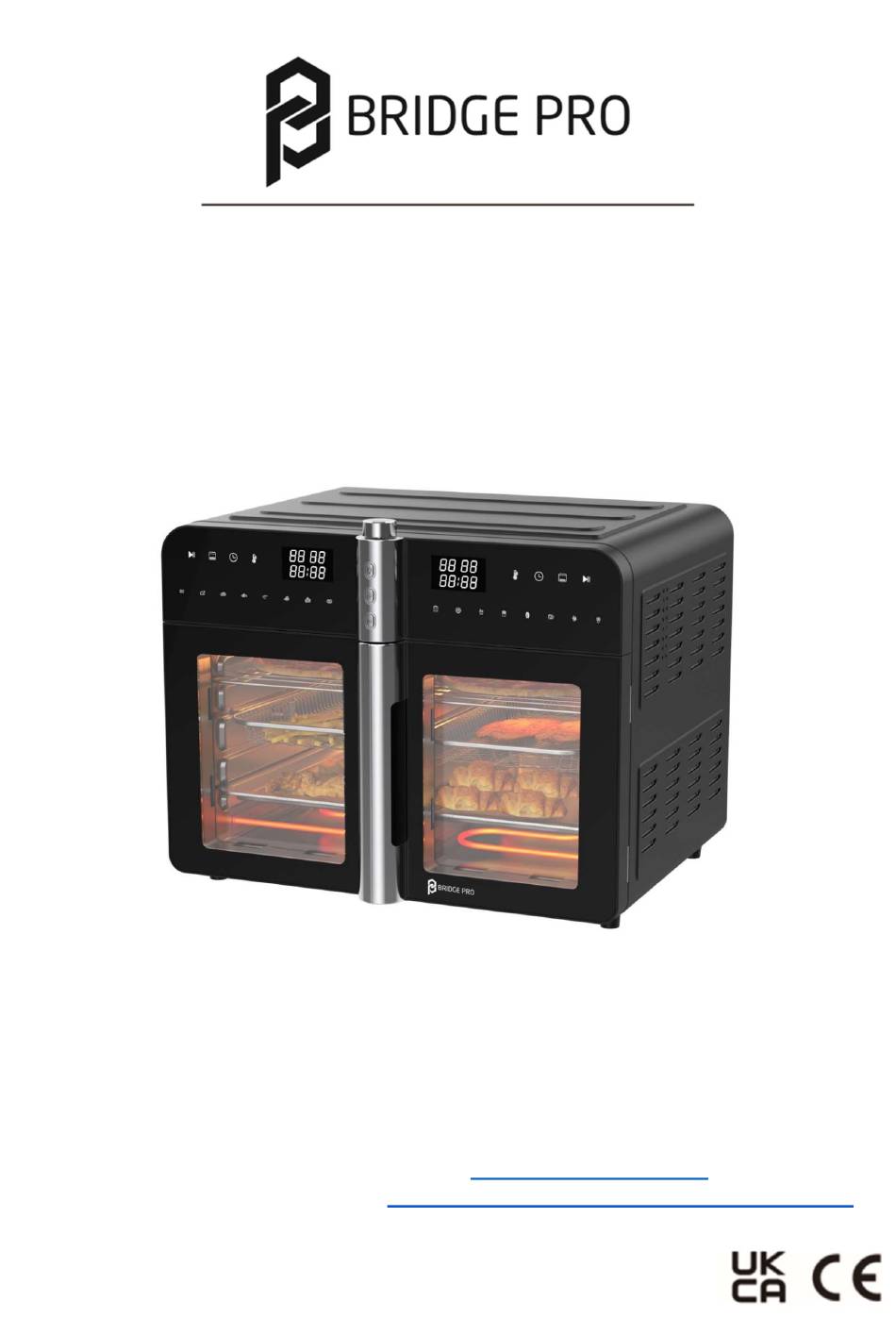

36 LITRE DIGITAL
AIR FRYER
DUAL ZONE OVEN
Cook 2 food 2 ways in customized zones
at the same time with one device
543316
When using electric appliances basic safety precaution should always be followed. Do not
use BridgePro Air Fryer Dual Zone Oven until you have read this manual thoroughly. Please
keep this instruction manual in a safe place.
Visit BridgePro Online Store
www.bgepro.com/shop/
Download our Recipe Cookbook at
www.bgepro.com/bridgepro-air-fryer-recipes/
Advertisement
Related Manuals for BRIDGE PRO 543316
Summary of Contents for BRIDGE PRO 543316
- Page 1 Cook 2 food 2 ways in customized zones at the same time with one device 543316 When using electric appliances basic safety precaution should always be followed. Do not use BridgePro Air Fryer Dual Zone Oven until you have read this manual thoroughly. Please keep this instruction manual in a safe place.
- Page 2 _____________________________________________________________________________ IMPORTANT SAFEGUARDS ................................. 3 GETTING TO KNOW YOUR AIR FRYER DUAL ZONE OVEN ......................7 MAIN COMPONENTS ................................7 INTELLIGENT CONTROL PANEL .............................. 8 INSTRUCTIONS FOR USE ................................ 8 BEFORE FIRST USE ................................12 OPERATING INSTRUCTIONS ..............................12 MENU FUNCTION SELECTION .............................. 13 CUSTOM MODE ...................................
- Page 3 _______________________________________________________________________________________ Always follow basic safety precautions when using your Air Fryer Dual Zone Oven. READ ALL INSTRUCTIONS BEFORE USE Do not immerse the power cord, plug or the entire unit in water or wash it under the tap to avoid damage or danger. ...
- Page 4 Children should be supervised to ensure they do not play with the appliance. Keep the appliance out of reach of children. Do not hang the power cord over the edge of a sharp table or counter or in contact with a hot surface.
- Page 5 power and clean food waste and grease from the grease tray and other accessories. After use, wait for the appliance to cool down before switching off. Switch off the appliance using the power button and then unplug from the socket to avoid inadvertently pulling the power cord directly and forcibly when opening the oven door.
- Page 6 Before cleaning, unplug the appliance from the socket and allow it to cool down before cleaning. Unplug the appliance when not in use. The manufacturer or retailer is not responsible for any problems arising from incorrect use by the customer. ...
- Page 7 15. Large drip tray pan (for single zone use - spares part # 543316-1) 7. Left door assembly 16. Rotisserie rotating drum (spares part # 543316-4) 8. Carrying tong 17. Rotisserie rotating skewer (spares part # 543316-5) - NOT INCLUDED, BUT AVAILABLE Available at www.bgepro.com/product-tag/36l-air-fryer/ 9. Rotisserie fork (spares part 17.
- Page 8 1. Place the appliance on a stable heat resistant horizontal surface. Leave at least 10 cm of space at the back and sides of the appliance, and >30 cm at the top. Keep away from curtains, wall coverings, and combustible materials. P a g e...
- Page 9 2. The use of the dual zone spacer is set out below. The spacer should be pushed in against the middle slot. 3. The use of the dual zone (small) accessories are as shown below. Fit the spacer first and then place the small drip trays beneath the heating elements to catch oil and food waste at the lowest oven rack position.
- Page 10 5. The use of the rotisserie rotating skewer accessory (OPTIONAL SPARE, NOT INCLUDED) is as shown in the following section. 6. The use of the rotisserie rotating drum accessory is as shown in the following section. 7. The use of the steak rack accessory (NOT INCLUDED) is as shown in the following section.
- Page 11 8. The use of the rotisserie fork accessory is as shown in the following section. The rotisserie fork can be used to hold a whole chicken during the cooking operation as shown below: 9. The carrying tong can be used to insert and remove the rotisserie fork and drum during or after the cooking operation as illustrated below.
- Page 12 *Only when the door of the appliance is fully closed will the safe working switch be activated, and will the appliance work properly. Never operate the appliance by pressing the switch while the door is open. 1. Please remove all packaging materials carefully and choose a flat area to place the appliance.
- Page 13 3. Lower heating elements: During operation or after selecting the menu, press key to turn on or off the lower heating elements. In pre-set cooking modes both upper and/or lower heating elements will work. Operator may turn off the lower heating elements where desired, for example, in situations where excess oils from cooking process falls on the lower heating elements.
- Page 14 and temperature to suit your needs. Function / Default Default time Adjustable Adjustable Remarks Modes temperature temperature time range range Below is the default dual zone operation (left-right oven independent working) time and temperature setting per cooking mode. Chicken wings 200°C 12 minutes 60~220°C...
- Page 15 NOTE The larger the portion of chicken or food to be baked, the more time and temperature it will take to cook to your desired outcome. In the "ALL" mode (single zone setting) without selecting the menu, press the time and temperature keys directly to adjust the desired time and temperature and then press the key to enter the heating operation.
- Page 16 In standby or in the operating state, press key once, the indicator light will light up and enter operation - it means the rotation function is on. Press again and the rotating function is turned off. The use of a roasting fork is shown in the picture below. NOTE The total weight of the chicken should not exceed 3kg.
- Page 17 NOTE If the door is not closed within 10 minutes after the appliance has been opened for the pause function, the appliance will enter the shutdown state, displaying "black screen" and the machine will be in the shutdown state (the door will also be closed in this state).
- Page 18 *After drying, assemble all parts and place them in a ventilated, dry and non- corrosive atmosphere for next use. Model Rated voltage/rated frequency Power rating Capacity 543316 220-240V/50Hz 2600 – 3050W This product complies with the following standards: IEC 60335-1/IEC 60335-2-9 18 |...
- Page 19 _______________________________________________________________________________________ Possible Problem Possible Cause Solution The oven does not work The appliance is not Make sure the oven is plugged in plugged in You have not turned on the Touch the POWER ON/OFF button to oven power on The door is not properly Make sure the door is fully closed closed Steam is coming out from...
- Page 20 one side turned during the cooking and requires the user to turn the bread process to toast both sides of mid-way through the cooking process to bread toast both sides of the bread Code Code interpretation Possible causes Fault in the left cavity temperature Temperature sensor open circuit.
- Page 21 Note the model number and serial number for your product before registering as it will be required in the registration process. The serial number is located at the back of the appliance. Model number is 543316. Proof of purchase is required for a warranty claim.
- Page 22 _______________________________________________________________________________________ BridgePro Management Ltd ("BPM"). Limited Warranty: This product is guaranteed for 12 months from the date of original purchase. This guarantee is valid in the UK only. If any defect arises due to faulty materials or workmanship, the faulty products must be returned to the place of purchase.
- Page 23 Product Part Number BridgePro 36L Digital Air Fryer Air Fryer Oven 543316 Dual Zone Oven Note: Serial number is stated on each product rating label. The object of the declaration as described above is in conformity with the relevant Union harmonisation legislation:...
- Page 24 _______________________________________________________________________________________ 24 | P a g e...
