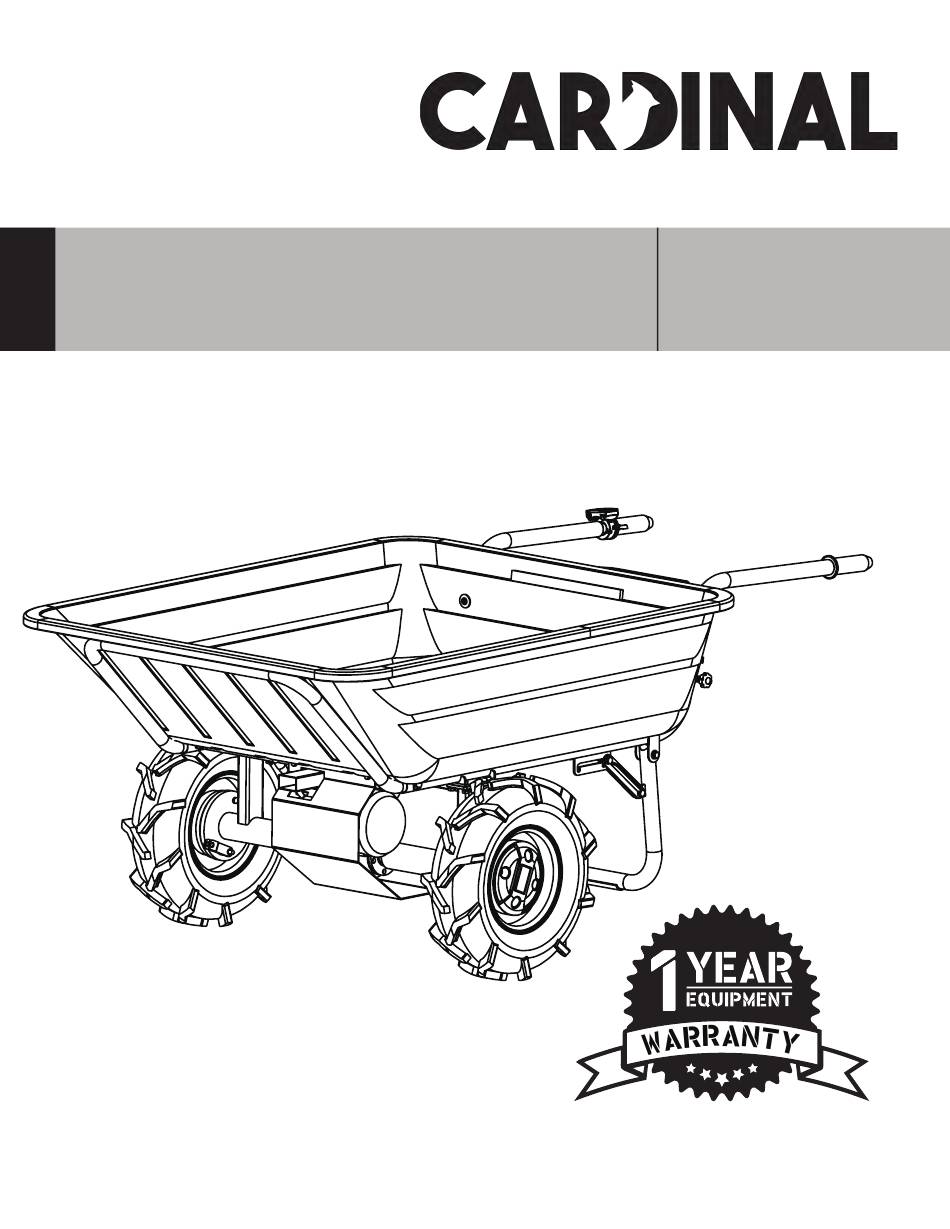

- Page 1 CKART300e Operation Manual UTILITY CART...
-
Page 2: Table Of Contents
3. EQUIPMENT ASSEMBLY 3.1 Warnings 3.2 Assembly Guide 3.3 Cable Assembly Steps 3.4 Loading on the slope 4. OPERATIONS 4.1 Operations 4.2 Charging the Battery 5. MAINTENANCE 5.1 Cleaning 5.2 Storage 5.3 Disposal 6. TROUBLESHOOTING 7. PARTS MANUAL 8. CKART300e EXPLOSION DIAGRAM... - Page 3 CARDINAL Customer Service doesn’t stop at checkout. We understand to keep a job-site running smoothly - the proper equipment, spare parts, instruction manuals, and more are needed at the drop of a hat. Visit www.cardinal-sprayers.com to gain access to the incredible resources below.
-
Page 4: Safety Information
Tomahawk Power. The information contained in this manual is based on equipment’s production at the time of publication. Cardinal® reserves the right to change any portion of this information without notice. No part of this publication may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission from Cardinal. -
Page 5: Operating Safety
1.1.10 DO NOT remove the battery while the machine is running In case of longer standstill, press the shut-down button. 1.1.11 NEVER use accessories or attachments that are not recommended by Cardinal. Damage to equipment and injury to the user may result. -
Page 6: Service Safety
1.2.2 ALWAYS replace worn or damaged components with spare parts designed and recommended by Cardinal. 1.2.3 ALWAYS keep machine clean and labels legible. Replace all missing and hard-to-read labels. Labels provide important operating instructions and warn of dangers and hazards. -
Page 7: Battery
2.1.1 Features 1. High Load Capacity: The CKART300e can handle a maximum load of 300 kg on solid flat ground, making it ideal for heavy-duty transportation tasks. 2. Powerful Motor: Equipped with a 400W motor, the wheelbarrow offers robust performance for various tasks, with a maximum forward speed of 6 km/h and a reverse speed of 2 km/h. -
Page 8: Specifications
EBS (Electronic Braking System). 6. Eco Mode: The wheelbarrow has an Eco mode, activated by a specific button, which extends the working time by reducing power consumption. 2.2 Specifications CKART300e SPECIFICATIONS Rated Voltage 40V DC 6 Ah Battery Capacity Max Battery Work time 3.2 h... -
Page 9: Utility Cart Parts
2.3 Utility Cart Parts 4. Right Rim + Tire 1. Tray 5. Speed Control Lever 2. Battery Box 6. Left Rim + Tire 3. U Support... -
Page 10: Equipment Assembly
3. EQUIPMENT ASSEMBLY 3.1 Warnings WARNING If any parts are missing or damaged, do not operate this utility cart. Failure to do so may result in personal injury or damage to this machine. WARNING WARNING Never make modifications or fabricate accessories to be used with this machine. - Page 11 FIGURE 3 3.2.3 Connect the U support to the base frame. Fasten in place using a wrench and the hex tap bolts. FIGURE 3. 3.2.4 After attaching the U support. Attach the motor cover to the base frame. Fasten in place using a wrench, FIGURE 4 hex bolt, and lock washers.
- Page 12 3.2.9 Insert the ATV bar to base frame. Use the locking pin to secure in place. FIGURE 9 FIGURE 9. 3.2.10 Finally attach the tray to the base frame. Now, the Cardinal Utility Cart assembly is complete.FIGURE 10. FIGURE 10...
-
Page 13: Cable Assembly Steps
3.3 Cable Assembly Steps 3.3.1 Connect the plug from the motor control lever to the 10-pole socket on the battery box using the motor cable. FIGURE 6. 3.3.2 Connect the plug from the motor to the 3 and 5 -pole socket on the battery box. FIGURE 6. -
Page 14: Charging The Battery
NOTE: Once the wagon is on, make sure these lights are ON: #L4(green), #L3(green), #L1(green). Now make sure these lights are OFF : #L2 and #L5 4.1.4 Once the direction button is pressed, #L4 light will indicate the wagon will move in a forward direction. -
Page 15: Maintenance
5. MAINTENANCE Routine checks of your utility wagon will ensure trouble-free operation. Inspect and/or service your utility cart at the intervals shown below. A daily check takes only minutes, but could save you hours of time and money. Good usage habits and maintenance will extend the life of the machine! DAILY WEEKLY... -
Page 16: Storage
5.2 Storage 5.2.1 Clean the wagon thoroughly before storage. 5.2.2 Store all components separately in a dry area at not less than -10 ° C. Charge the battery fully before storing. Disconnect from the charger. NOTE: When not using the wagon for long periods, ensure to charge the battery after a month of no use. -
Page 18: Parts Manual
CKART300e UTILITY CART... -
Page 19: Ckart300E Explosion Diagram
CKART300e EXPLOSION DIAGRAM... - Page 20 Quality Item Description Front Tray Support Motor Cover Motor Assembly Base Frame Right Locking Bar Left Locking Bar U Support Left Handle Handle Grip ATV Bar Battery Box Assy Connection Board Battery Box Base Speed Control Lever Right Handle Tray Front Tire...
- Page 21 With same day shipping and faster delivery times, count on Cardinal to keep you powered throughout the day! With long lasting parts and engines, Cardinal equipment will be the star of your fleet for years to come. Visit www.cardinal-sprayers.com to get started today!
