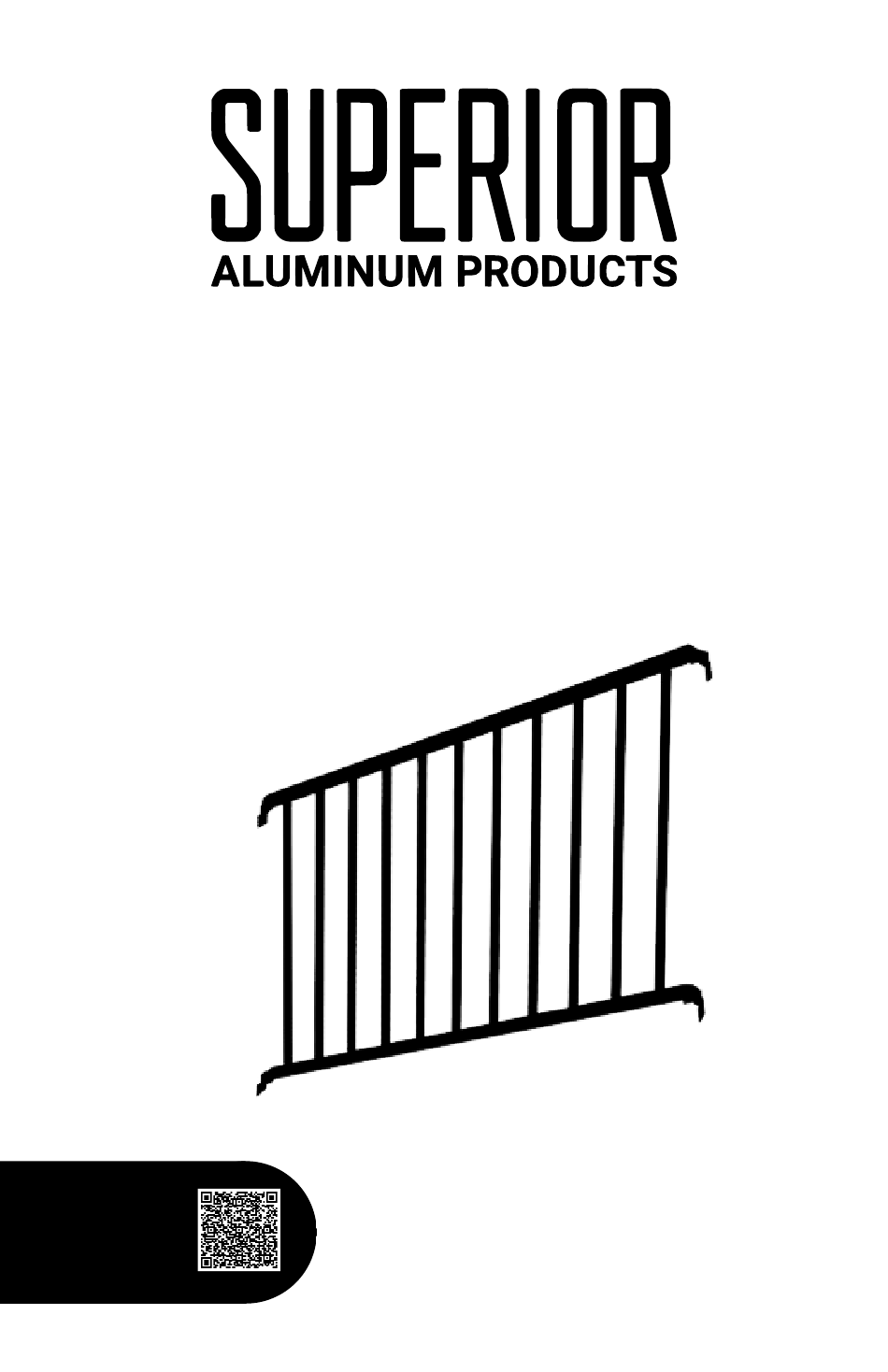

- Page 1 Stair Picket Railing Kit Superior Aluminum Series 9P Residential Railing For 4' and 6' railing sections Assembly Instructions SCAN HERE FOR DIGITAL INSTRUCTIONS...
-
Page 2: Care And Maintenance
At Superior Aluminum, safety is our top priority. It is the responsibility of the purchaser to meet all code and safety Have an issue? requirements and all required Let us know. -
Page 3: What's Included
WHAT’S INCLUDED? Top Rail (A) (x1) Bottom Rail (B) (x1) Screw Cover (C) (x2) 3/4" Square Pickets (D) (x10 for 4' kit | x15 for 6' kit) Vertical Swivel Bracket - Top Rail (E) (x2) Vertical Swivel Bracket - Bottom Rail (F) (x2) 1"... - Page 4 SIZING YOUR RAIL | Stair Picket Railing Kit SIZING YOUR RAIL (IF NECESSARY) If you determine that your railing needs to be cut down, follow these steps before moving to the assembly of your rail kit. If your rail does not need cut, skip to Part 1.
- Page 5 ASSEMBLY | Stair Picket Railing Kit PART 1: RAILING ASSEMBLY STEP 1 Slide the screw covers (C) out from the top (A) and bottom rail (B). Insert a picket (D) into the first opening in the top rail, aligning the holes. Insert a picket screw (H) through both holes.
- Page 6 ASSEMBLY | Stair Picket Railing Kit STEP 3 Repeat the above steps with the bottom rail (B), aligning all picket holes and inserting screws, but not yet tightening the screws. Note: Getting the first picket in and adding the screw is key to getting the rest of the bottom pickets to line up.
- Page 7 ASSEMBLY | Stair Picket Railing Kit STEP 5 Slide the screw cover (C) into the groove on both the top rail and bottom rail to conceal the picket screws. superioraluminum.com...
- Page 8 PART 2: ATTACHING TO POST(S) (POSTS SOLD SEPARATELY) Note: Mounting your railing to an existing structure, such as a porch column or a wall, uses a similar process. Follow the instructions below, but pay attention to special instructions with a (*) next to them. STEP 1 Begin with the top post (shorter post).
- Page 9 ATTACHING POST(S) | Stair Picket Railing Kit STEP 3 The rail only angles one way. Before attaching the bracket, ensure the open space on the bottom rail next to each picket is toward the top step. Next, slide the top end bracket onto the end of the top rail.
- Page 10 ATTACHING POST(S) | Stair Picket Railing Kit STEP 5 Use 3 self-drilling screws to mount the top rail end bracket onto the post, being careful to attach where marked. STEP 6 Slide the post that now has two brackets back onto the rail.
- Page 11 ATTACHING POST(S) | Stair Picket Railing Kit STEP 7 Insert top and bottom end brackets into the open end of your railing. Stage your rail by placing the top post on the top landing where you will mount it. (It is recommended to place the base 4"...
- Page 12 Due to a variety of mounting conditions, Superior does not provide specific instructions for mounting your railing. Typically, Superior Aluminum railing will be mounted in one of two ways: Surface mounted to concrete: It is recommended to utilize a wedge anchor at least 3”...
- Page 14 Interested in Aluminum or PVC columns? View our options at superioraluminum.com! superioraluminum.com...
- Page 16 2024 Superior Aluminum Products, Inc. 555 E. Main St., PO Box 430 Russia, OH 45363 (800) 548-8656 www.superioraluminum.com...
