Summary of Contents for Bromley Mini Police Ride

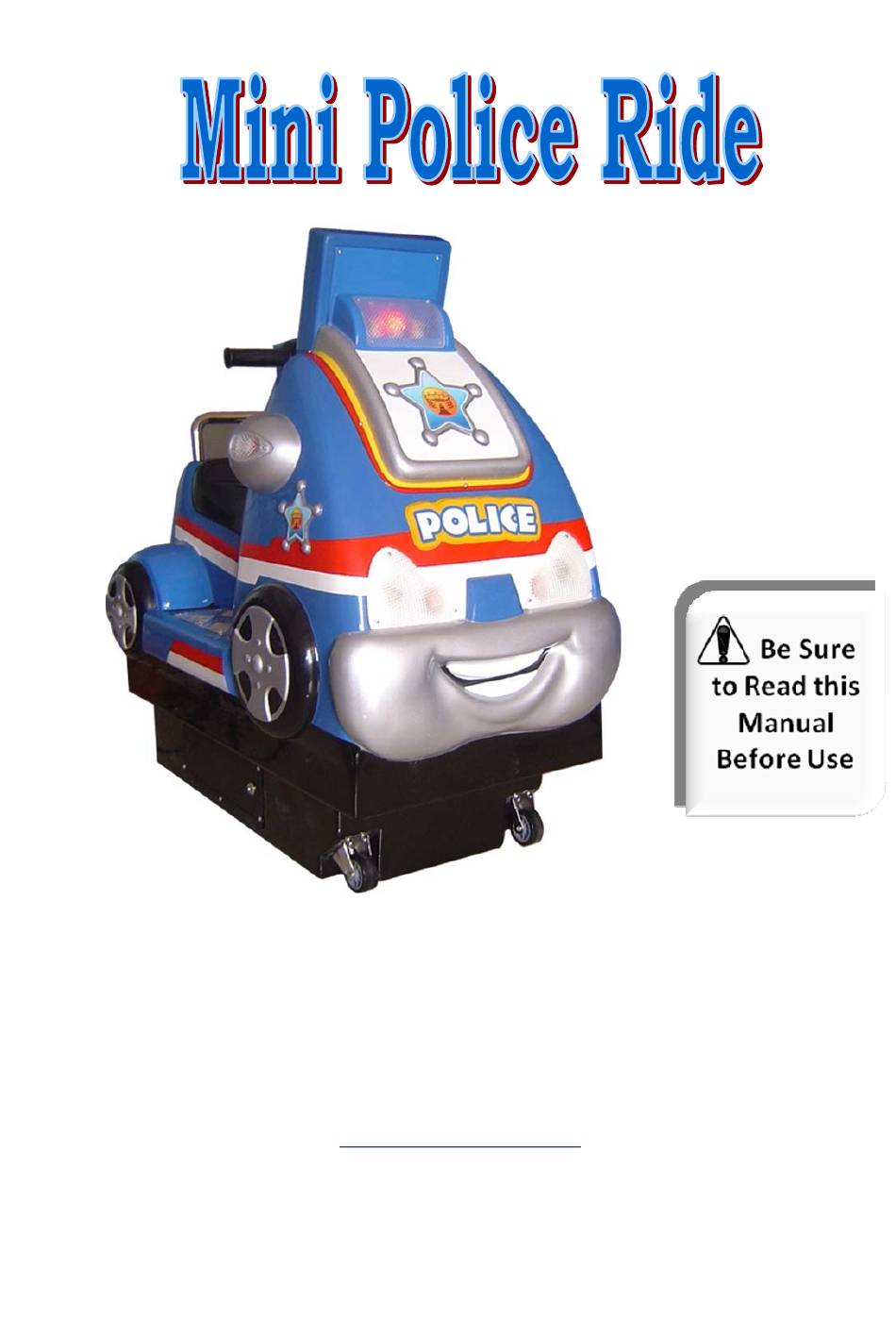

- Page 1 Operation Manual For Parts and Service, call Bromley-Inc. www.bromley-inc.com Tel: 847-427-0639...
-
Page 2: Table Of Contents
Rev 1.3 2011-1-13 CONTENT ................2 Important Safety Instructions 1.Specifications ....................4 2.Package Contents ................... 5 3. Part name ....................... 6 4.Set Up & Installation ........................5. How to play ............................6. Game Option ........................... 7. Maintenance and Inspection ....................8. -
Page 3: Important Safety Instructions
Rev 1.3 2011-1-13 Thank you for purchasing Mini Police Ride. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation. - Page 4 Rev 1.3 2011-1-13 No Touching Hazard: This part may be hot or can cause electric shock. Do not touch. Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine.
-
Page 5: Specifications
Rev 1.3 2011-1-13 1. SPECIFICATIONS Rated power supply： AC110V 50/60Hz Min. Power consumption： 25W Max. Power consumption： 350W Dimensions： W600×D980×H1080(mm) Weight： About 100kgs NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice. -
Page 6: Package Contents
Rev 1.3 2011-1-13 2. PACKAGE CONTENTS Open the package and make sure all the items are included: • 1 x Body Assembly • Following accessories Part No. Name Spec. Qty. Illustration Note Choose by T10A/250 φ6-300 M102-422-000 Fuse area Choose by M102-705-000 Manual English... -
Page 7: Part Name
Rev 1.3 2011-1-13 3. PART NAMES FRONT VIEW Console Assembly Monitor Assembly Seat LED lights Base Assembly... -
Page 8: Set Up & Installation
Rev 1.3 2011-1-13 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid Place the unit on a dry level surface Ventilation openings in the back of the unit must not be obstructed by objects or by wall. -
Page 9: Level Adjustment
Rev 1.3 2011-1-13 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction. To fix the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm. -
Page 10: Transporting The Game
Rev 1.3 2011-1-13 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. NOTICE • Be careful not to damage the machine during transport. •... -
Page 11: Connecting Power
Rev 1.3 2011-1-13 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. •... -
Page 12: How To Play
Rev 1.3 2011-1-13 5. HOW TO PLAY ① Insert coin(s) ② Game starts. Turn the handle left or right to change the direction of the police car displayed on the screen. ③ Pick up special items along the way for bonuses. -
Page 13: Game Option
Rev 1.3 2011-1-13 ④ Game ends once the time runs out, Insert coin(s) to play again. 6. GAME OPTIONS 6.1 Operation： Press the Reset and Service button （ or turn left & turn right on the handle ） to select the options. -
Page 14: Game Settings
Rev 1.3 2011-1-13 Game settings： Game Setting Time <1:00> Coin < 2 > Free play < OFF > Sound vol < 100 > Music vol < 100 > Score to ticket <5000> = 1 Ticket Save Cancel Options： 1. TIME：Game time setting 2. -
Page 15: Input Config
Rev 1.3 2011-1-13 Input config Input config Config <IN_CONFIGA> InCoin <IN_COIN1A > TicketMachFixed <IN_COIN2A > Left <IN_LEFT1PA> Right <IN_RIGHT1PA> <IN_UP1PA> Down <IN_DOWN1PA> Attack <IN_BUT_A1PA> Save Cancel Options： 1. Config：Sets the button config（Input config） 2. InCoin：coins button config（Input config） 3. TicketMachFixed：ticket reset button config（Input config） 4. - Page 16 Rev 1.3 2011-1-13 Options： 1. TicketMeter：Ticket meter output interface (Disable) 2. Light1：Light 1 output interface 3. Light2：Light 2 output interface 4. Light3：Light 3 output interface 5. Light4：Light 4 output interface 6. TicketMach：Ticket dispenser output interface (nonuse) 7. MainMotor： Main motor output 8.
-
Page 17: Maintenance And Inspection
Rev 1.3 2011-1-13 7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3. -
Page 18: Overall Construction
Rev 1.3 2011-1-13 8. OVERALL CONSTRUCTION 8.1 The Main Assembly... - Page 19 Rev 1.3 2011-1-13 Part No. Diagram No. Name Spec. Note M102-101-000 MNJCC-01-08 Coin box crust Electrolytic sheet M102-102-000 MNJCC-01-07 Coin box Electrolytic sheet M102-601-000 MNJCC-01-21 Coin box damping board Black EVA M102-401-000 25302222001 Lock C852 M102-103-000 MNJCC-01-20 Test button board Electrolytic sheet M102-104-000 MNJCC-01-09...
- Page 20 Rev 1.3 2011-1-13 8.2 Base Part No. Diagram No. Name Spec. Note Electrolytic M102-112-000 MNJCC-02-03 Bracket 1 sheet M102-113-000 MNJCC-02-11 Bracket 2 Q235 Spherical M102-402-000 20106000030 UCP205 surface bearing Bearing holder M102-614-000 MNJCC-02-13 Latex damping board...
- Page 21 Rev 1.3 2011-1-13 Part No. Diagram No. Name Spec. Note Bearing holder M102-615-000 MNJCC-02-12 Bakelite M102-616-000 MNJCC-02-01 Base M102-114-000 MNJCC-02-02 Service door Q235 Electricity Electrolytic M102-115-000 MNJCC-02-04 fixation board sheet M102-116-000 MNJCC-02-07 Block board Q235 Orientation 10 M102-117-000 MNJCC-02-23 Q235 board 11 M102-617-000 MNJCC-02-16...
-
Page 22: Console Assembly
Rev 1.3 2011-1-13 8.3 Console Assembly: No. Part No. Diagram No. Name QTY Spec. Note M102-124-000 MNJCC-03-06 Steering wheel Q235 M102-410-000 22604000007 Micro SW Micro Electrolytic M102-125-000 MLJCC-03-03 holder sheet M102-126-000 MNJCC-03-02 Handle axes Q235 M102-411-000 25800000035 Handle Latex M102-127-000 MNJCC-03-05 Outline border Q235... - Page 23 Rev 1.3 2011-1-13 8.4 Electric Part: M102-413-000 Display ：7’’ M102-414-000 Button ： M102-440-000 Fan: DC12V Yellow 60*60*15mm M102-416-000 Coin mech : CEC style M102-415-000 Speaker ： 8Ω/10W，L&R each M102-417-000 Lock: C582 M102-419-000 LED lamp : E10 6 Pcs red , LED 3 Pcs M102-420-000 Lamp holder: M102-418-000 E10 3Pcs...
- Page 24 Rev 1.3 2011-1-13 M102-424-000 LED double deck lamp ： DC12V E12-B-LED-2-15 red 1Pcs M102-425-000 LED double deck lamp： DC12V E12-B-LED-2-15 blue 2 Pcs M102-426-000 Lamp holder： M102-419-000 LED lamp：E10 Pcs red LED M102-420-000 Lamp holder：E10 M102-427-000 LED double deck lamp： DC12V E12-B-LED-2-15 white 1pcs M102-419-000 LED lamp：...
- Page 25 Rev 1.3 2011-1-13 M102-429-000 M102-428-000 Main board Counter ： C-012 AMAZON-MB01(V2.0) DC 12V M102-437-000 Flash card M102-430-000 Pot. knob ： Black M102-431-000 potentiometer： RB1K M102-432-000 Pot. connect board: VR.PCB M102-434-000 Green test M102-433-000 Red test button： DS-316 button ： DS-316 M102-435-000 Power supply：...
- Page 26 Rev 1.3 2011-1-13 8.5 Decal...
- Page 27 Rev 1.3 2011-1-13...
- Page 28 Rev 1.3 2011-1-13 8.5 Decal: No. Part No. Diagram No. Name QTY Spec. Note M102-701-000 MNJCC-HM-06 Side logo 82X82 Screen frame M102-702-000 MNJCC-HM-02 decal 240X185 M102-703-000 MNJCC-HM-05 Front logo 138X138 POLICE word M102-704-000 MNJCC-HM-04 decal 250X70 Control panel M102-705-000 MNJCC-HM-01 decal 235X103 Speaker...
