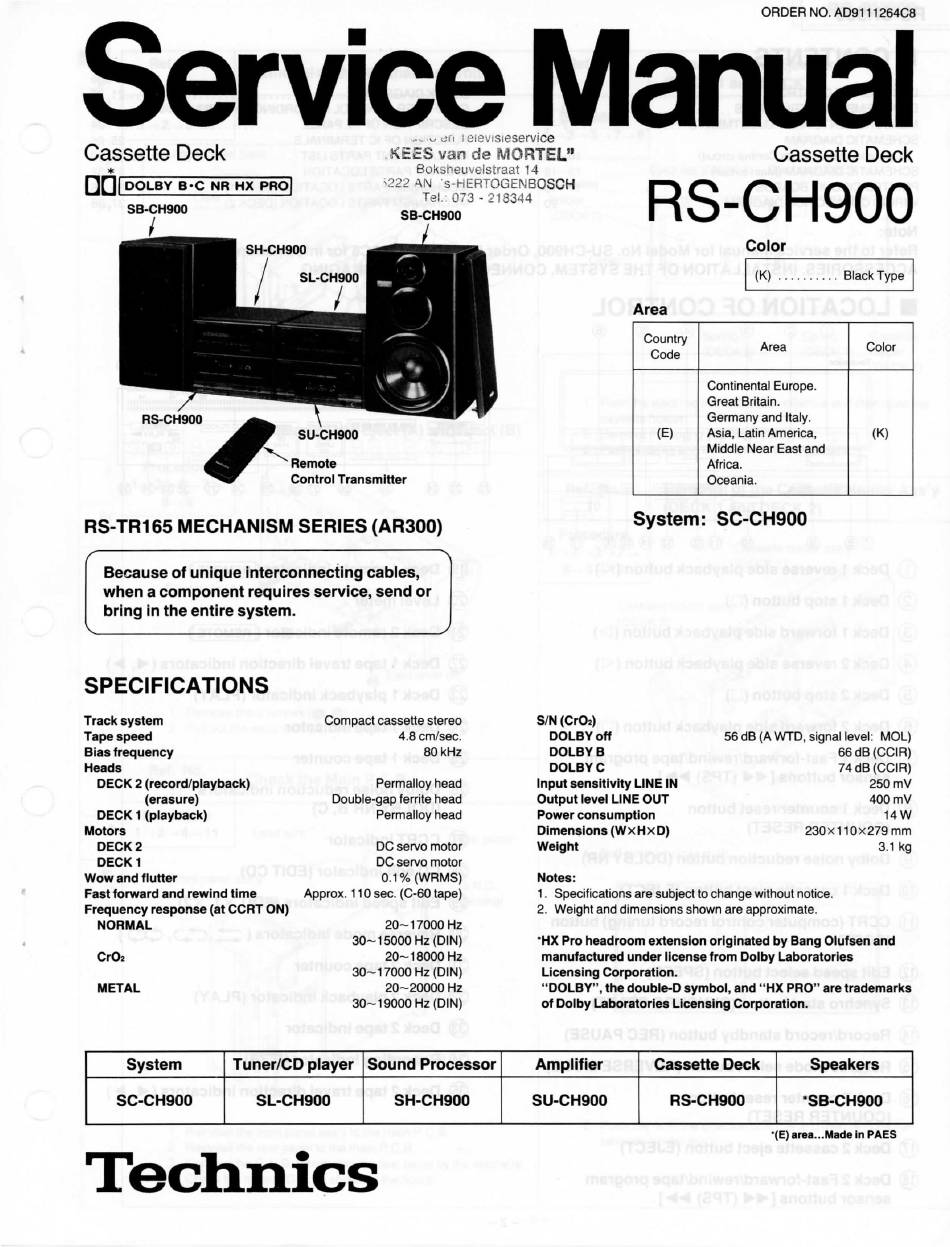

Technics RS-CH900 Service Manual

ORDER NO. AD9111264C8
Service Manual
Cassette Deck
*
D O L B Y B - C NR H X P R O
... ^ ieievisieservice zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJ
'<ÈES vars de MOFITEL"
Boksheuvelstraat 14
222 AN •s-HERTOGENBOSCH
Tel.; 073 - 21S344
SB-CH900
Remote
Control Transmitter
RS-TR165 MECHANISM S E R I E S (AR300)
Because of unique interconnecting cables,
when a component requires service, send or
bring in the entire system.
SPECIFICATIONS
Track system
Tape speed
Bias frequency
Heads
DECK 2 (record/playback)
(erasure)
DECK 1 (playback)
Motors
DECK 2
DECK1
Wow and flutter
Fast forward and rewind time
Frequency response (at CCRT ON)
NORMAL
CrOz
Compact cassette stereo
4.8 cm/sec.
. « t r ,
80 kHz
Permalloy head
Double-gap ferrite head
Permalloy head
DC servo motor
DC servo motor
0.1%(WRMS)
Approx. 110 sec. (C-60 tape)
20-17000 Hz
30-15000 Hz (DIN)
20-18000 Hz
30-17000 Hz (DIN)
20-20000 Hz
30-19000 Hz (DIN)
Cassette Deck
RS-CH900
Color
(K) Black Type
Area
Country
Code
Area Color
(E)
Continental Europe.
Great Britain.
Germany and Italy.
Asia, Latin America,
Middle Near East and
Atrica.
Oceanla.
(K)
4-'-
System: SC-CH900
. ^ ... • ' t l
{;•') nortud )l3BdVi
,
....
;J319V91
r
>lD9a ;
Jud > » c
S/N (Cr02)
DOLBY oft
DOLBYB
DOLBYC
Input sensltivlty LINE IN
Output level LINE OUT
Power consumption
Dimenslons(WxHxD)
Welght
56dB(AWTD, signallevel: MOL)
66dB(CCIR)
74 dB (CCIR)
250 mV
400 mV
14W
230x110x279 mm
3.1 kg
Notes:
1. Specificatlons are subject to change without notice.
2. Weight and dimensions shown are approximate.
vf r)
'HX Pro headroom extension originated by Bang Olufsen and
manufactured under llcense from Dolby Laboratories
Licensing Corporation.
"DOLBY", the double-D symbol, and "HX PRO" are trademarks
of Dolby Laboratories Licensing Corporation. .
h
System Tuner/C D player Sound Processor Amplifier
Cassette Deelt
Speakers
SC-CH900
SL-CH900 SH-CH900 SU-CH900 RS-CH900 *SB-CH900
T e c l i n i c s
•(E) area...Made in PAES
