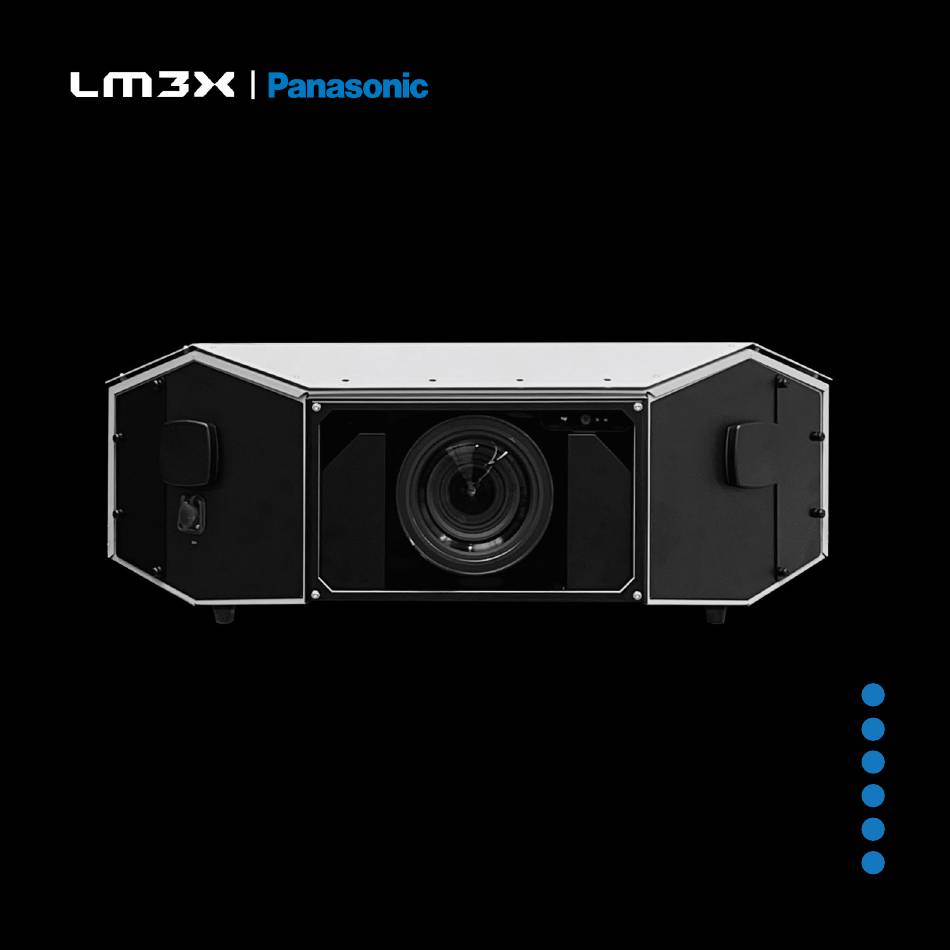

- Page 1 20K™ 20K™ OUTDOOR PROJECTION SYSTEM QUICK START PROJECTION MAPPING SOFTWARE / CLOUD SERVICE SPECS AND OVERVIEW ACCESORIES MAINTENANCE SAFETY...
-
Page 2: Quick Start
Quick Start „I JUST WANT TO WATCH A MOVIE“ Permanent Installation 4-11 Video-Mapping Tools - INTERNET ACCESS REQUIRED - ETHERNET OR DATA SIM CARD - WIRELESS IoT SOLUTION FOR PERMANENT INSTALLATIONS - EMBEDDED MEDIA PLAYER - EMBEDDED PROJECTION MAPPING SOFTWARE - LUMIVERSE CLOUD SERVICES FOR REMOTE ACCESS - MULTIPROJECTION AND EDGE BLENDING - PUBLIC INTERACTION MODE... - Page 3 OF THE EMBEDDED PANASONIC PT-MZ20K PROJECTOR. IF YOU DO SO, MAKE SURE YOU RETURN THE SETTINGS TO THEIR ORIGINAL VALUES AFTER USE. THE PANASONIC PROJECTOR INSIDE HAS BEEN CONFIGURED FOR USE WITH THE EMBEDDED LUMIVERSE PLAYER AND CHANGED SETTINGS WILL COMPROMISE COMPATIBILITY.
- Page 4 Permanent Installation Video-Mapping Tools - INTERNET ACCESS REQUIRED - ETHERNET OR DATA SIM CARD - WIRELESS IoT SOLUTION FOR PERMANENT INSTALLATIONS - EMBEDDED MEDIA PLAYER - EMBEDDED PROJECTION MAPPING SOFTWARE - LUMIVERSE CLOUD SERVICES FOR REMOTE ACCESS - MULTIPROJECTION AND EDGE BLENDING - PUBLIC INTERACTION MODE...
- Page 5 Find the complete manual online Your Lumiverse Credentials Device ID my.lumiverse.com Login Password https://LM3X.guide/ Direct Wi-Fi Access Device type: Lumiverse / 20K Wi-Fi Password Support phone: +420 725 08 99 08 My New Password Support e-mail: support@LM3X.com...
-
Page 6: Front & Back Panel
Front & Back Panel Ports / Connectors Power button Scanner lens (camera) LAN (Intrenet IN, Artnet IN) DMX IN Power LED indicator Air filter cover HDBaseT IN HDMI IN Lumiverse ONLINE indicator GNSS/LTE antenna Power IN nanoSIM / cellular data compatible waterproof Neutrik Beamer lens WIFI antenna... -
Page 7: Technical Data
Dimensions (HxWxL) H 325 mm x W 855 mm x L 745 mm, L 795 mm with lens extender Weight 50 kg Display type Panasonic PT-MZ20K LASER LCD Brightness 20 000 ANSI/lm Laser lifespan 20 000 h Native resolution (px) -
Page 8: Important Safety Instructions
Important Safety Instructions View From Below • The unit must not be exposed to splashing water. • No leaking objects may be placed above the device. • This device contains a non-rechargeable lithium battery. • Failure to read and follow the below specified instructions may result in fire, personal injury, or damage to property. -
Page 9: Safety Instructions
Safety Instructions Attachment System • The 20K™ projector is weather protected (IP43) and can operate outdoors within Your 20K™ series outdoor projection system is compatible with several attachment operating temperature range of - 45º C < > + 45º C. systems (optional). -
Page 10: Laser Safety Instructions
LASER Safety Instructions Power Management • The projector is equipped with an automatic dehumidification system to prevent • As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015. any damage caused by moisture. • Once installed outdoors, it is important to keep the projector ON and connected to a reliable permanent power source! •... -
Page 11: Maintenance
Maintenance Troubleshooting Laser Lens In case a projector malfunction occurs, try the following steps: Laser lifespan is 20,000 Dirt on the projector Reboot hours. See, for how many lens may affect the light In order to resolve a malfunction issue, try the REBOOT command from the POWER BUTTON menu in the Lumiverse UI hours has your laser show quality and the... -
Page 12: Declaration Of Conformity
Declaration of Conformity Declaration of RoHS2 Compliance Hereby declare that: Product: OUTDOOR PROJECTOR Product No. 20K™ Product: OUTDOOR PROJECTOR Product No. 20K™ This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use Is compliant with the essential requirements and any other relevant provisions of of certain hazardous substances in electrical and electronic equipment (RoHS2 the following EC directives, and that all the necessary steps have been taken and... - Page 13 info@LM3X.com www.LM3X.com © 2024 Device ID...
