2.1 Description of hardware interface
The Streamplay makes it possible to connect a customer board through its 40-pin DIP.
The connector placement and the pinout are shown in the following picture.
.
Document No.:
SMA0_DS24

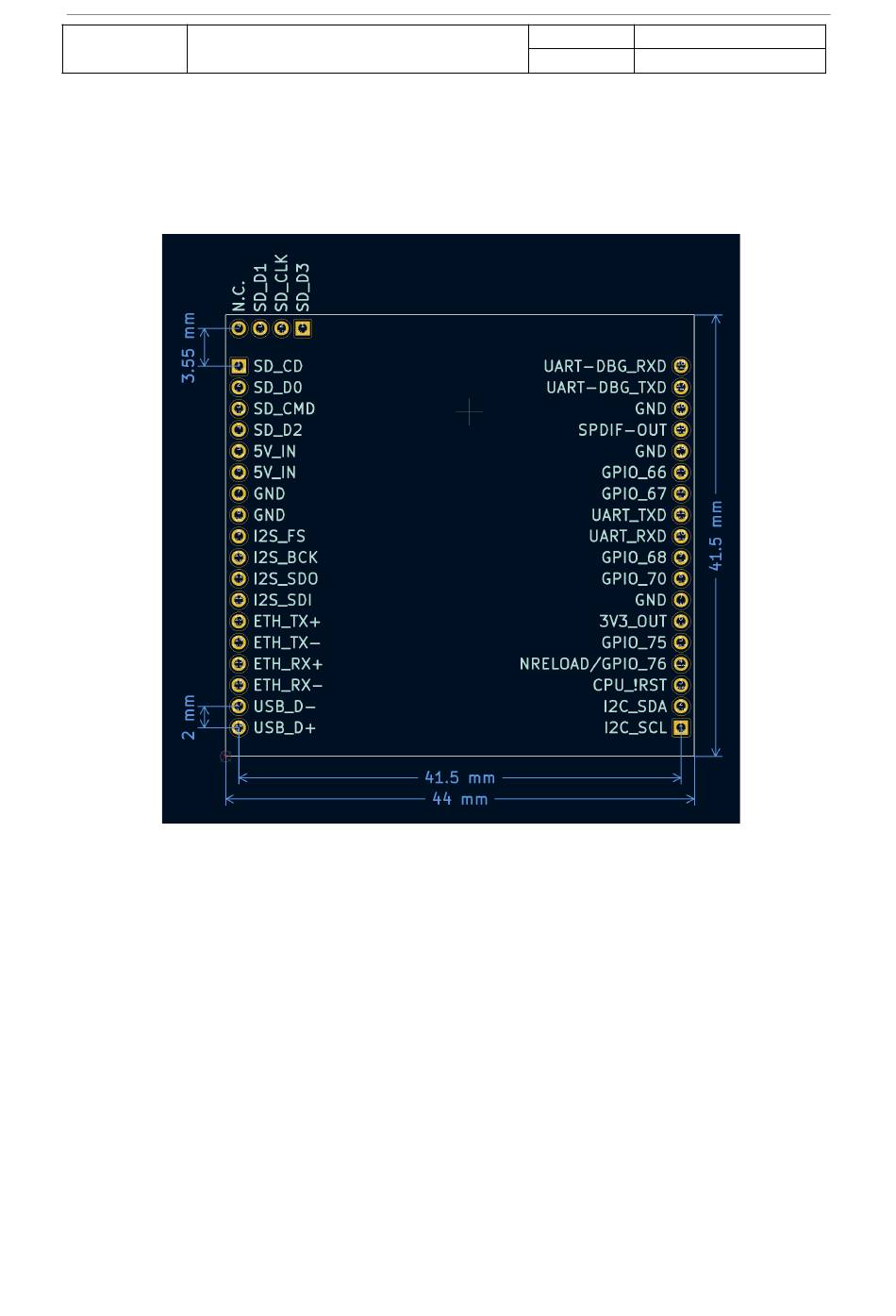

Figure 1: Streamplay interface pins
