2.5 USB Interface

2.5.1 USB Host
The StreamPlay provides a high-speed USB 2.0 host interface. The interface can be
connected to a USB port or a USB HUB, on the customer carrier-board.
In both cases, it is recommended to add a common mode choke in between and to route the
USB data lines as a 90 Ω differential pair.
Document No.:
SMA0_DS24

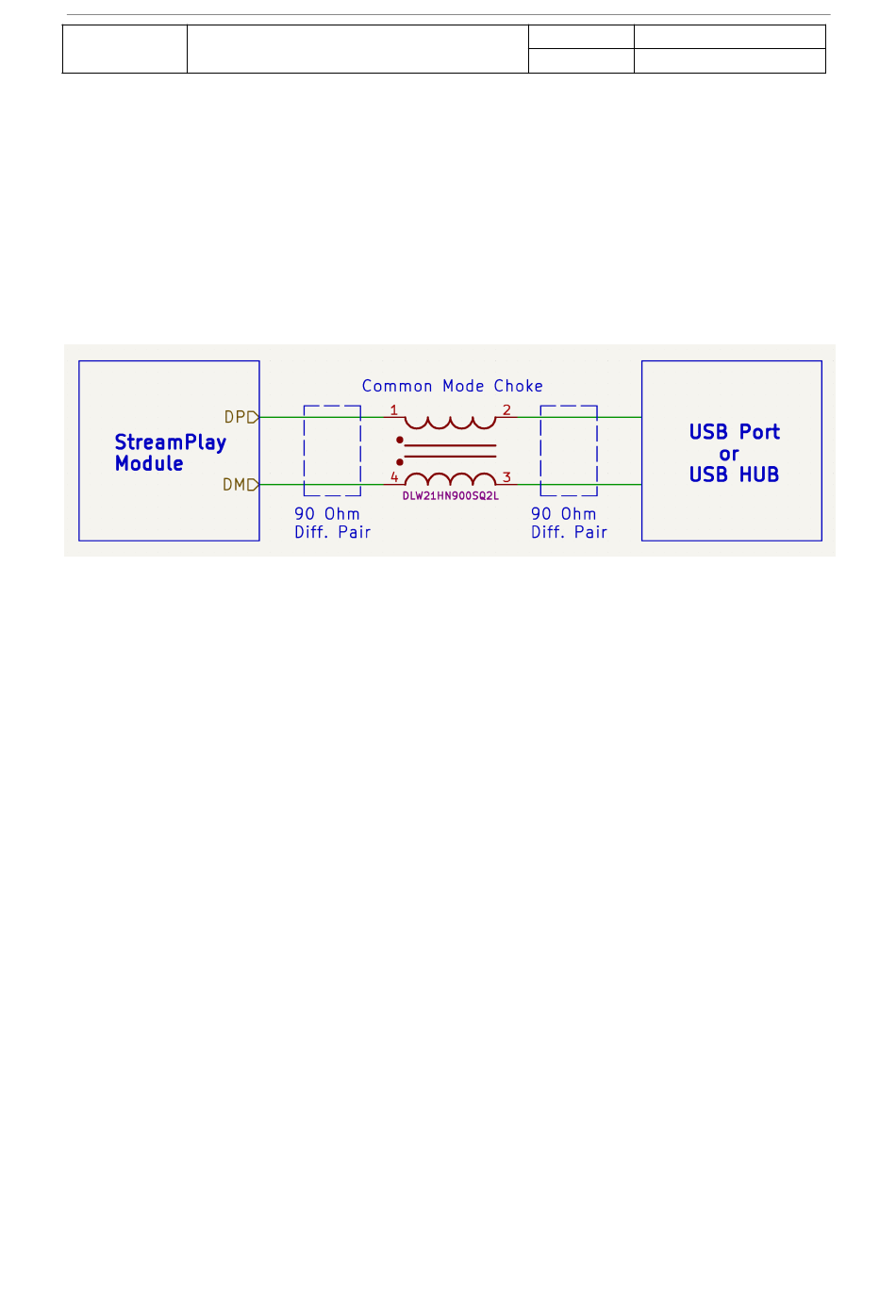

Figure 6: StreamPlay USB-Host connection
