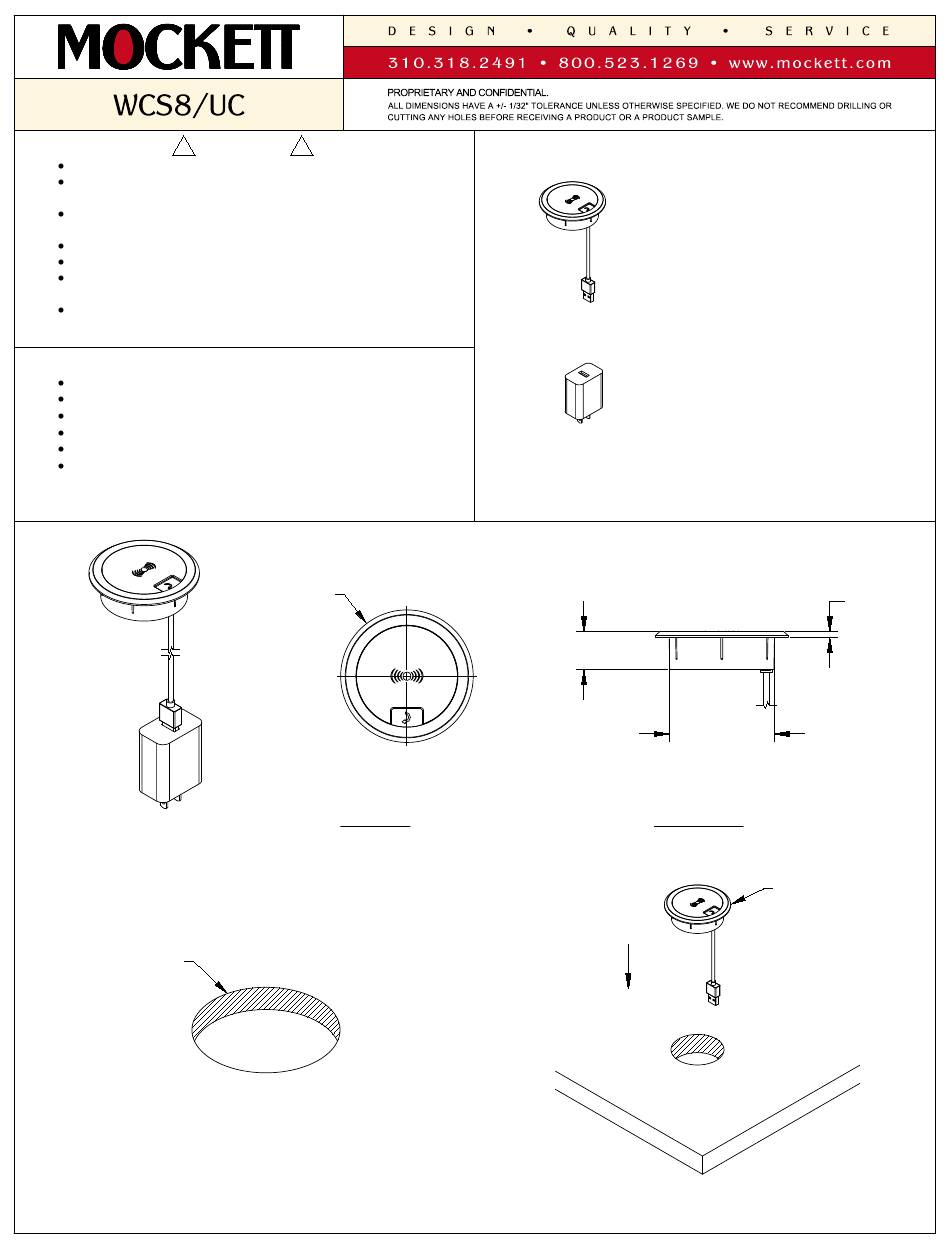

Mockett WCS8/UC Manual

!
To reduce the risk of electric shock use only indoors.
If any malfunction occurs, do not attempt to disassemble or
repair.
Avoid placing the charger in a high temperature environment
or near fire.
Allow enough clearance for part operation.
Do not place metal on the wireless charging area.
Metal objects, bank cards, digital IC cards should not be
placed between the charger and the phone to avoid damage.
To ensure proper performance, only use the included power
adapter with unit.
SPECIFICATIONS
4 ft. cord length.
Wireless output is 15W MAX.
Recommended table thickness is 1/2" [12.50mm] MIN.
USB-A & USB-C ports are for charging use only.
Power adapter dimension is 1-5/8" X 1-1/16" X 1-29/32".
Mobile device must be equipped with a wireless charging
receiver (Wireless charging accessories not included.). Check
mobile manufacturer for compatibility.
1
2-3/8" DIA.
[60.00mm]
CUTOUT
Determine the position and location of the unit on the work
surface. Make a cutout in the desired location on your work
surface. Allow enough clearance for unit operation. DO NOT
place unit where cable is strained or trapped. Cut the hole at
2-3/8" diameter [60.00mm].
2024.12.02
WARNING !
2-31/32" DIA.
[75.50mm]
TOP VIEW
TABLE OF CONTENTS
7/8"
[22.00mm]
2
Install the WCS8/UC into the cutout and make sure it is fully
leveled onto the work surface.
1
. . . . . . . . . . . 1X WCS8/UC
. . . . . . . . . . 1X PCS/AC/3A
2-3/8" DIA.
[60.00mm]
CUTOUT
FRONT VIEW
WCS8/UC
1/8"
[3.50mm]
