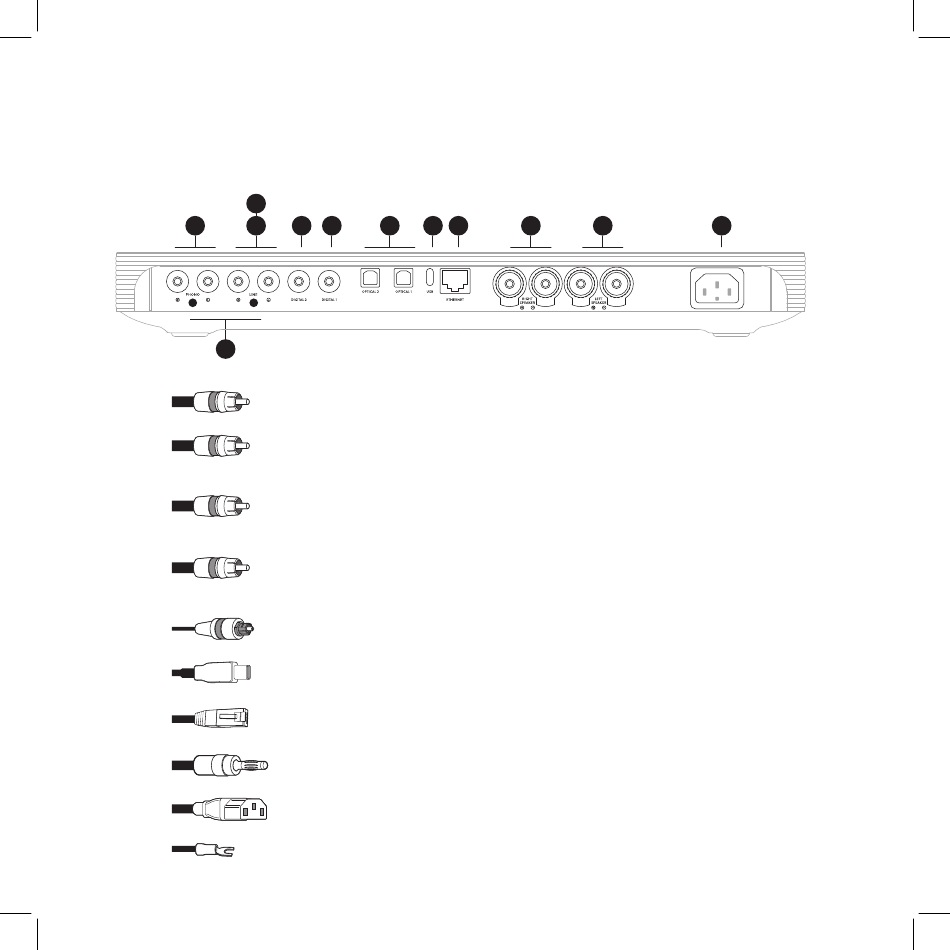

CONNECTORS

The connectors are configured by default and can be modified through the Advanced Configurator to
better suit your preferences and to boost your system's performance.
A
A B C D E
A
A B C D E
B C
F
F
G
A B C D E D
A B C D E
A B C D E
G
A B C D E
F H
A B C D E
A B C D E A B C D E
E
F
A B C D E
F
H
F
G IJ
F
F F
G
F
F
G
IJ
G
H
G
K
G
G
G
G
H
H
K H
IJ
H
H
H H
L
IJ
H
IJ
IJ
I J
IJ L
K
IJ IJ
IJ
K
K
K
K
K
L
K K
K
L L
L
L
14 L
L L
L
B
C D E F
L
PHONO (MM/MC) / LINE IN
Advanced phono stage for turntable or line input for tuner
PHONO (MM/MC) / LINE IN / DIGITAL IN
Advanced phono stage for turntable or line input for tuner or digital S/PDIF (COAXIAL)
input for CD, DVD, TV etc.
DIGITAL IN / LINE OUT
Digital S/PDIF (COAXIAL) input for CD, DVD, TV etc.
or line output for subwoofer
DIGITAL IN / LINE OUT / DIGITAL OUT
Digital S/PDIF (COAXIAL) input for CD, DVD, TV etc. or line output for subwoofer
or digital output for second amplifier
OPTICAL IN
Optical input for CD player, computer, Blu-ray, router etc.
USB-C
Input for computer, streaming device etc.
ETHERNET
RJ45 input for network
RIGHT SPEAKER & LEFT SPEAKER
Universal speaker connectors (banana or fork) 4 mm
MAINS 100-240 V AC
Mains power supply (grounding required)
EARTH FOR TURNTABLE TONEARM
G H I J K
