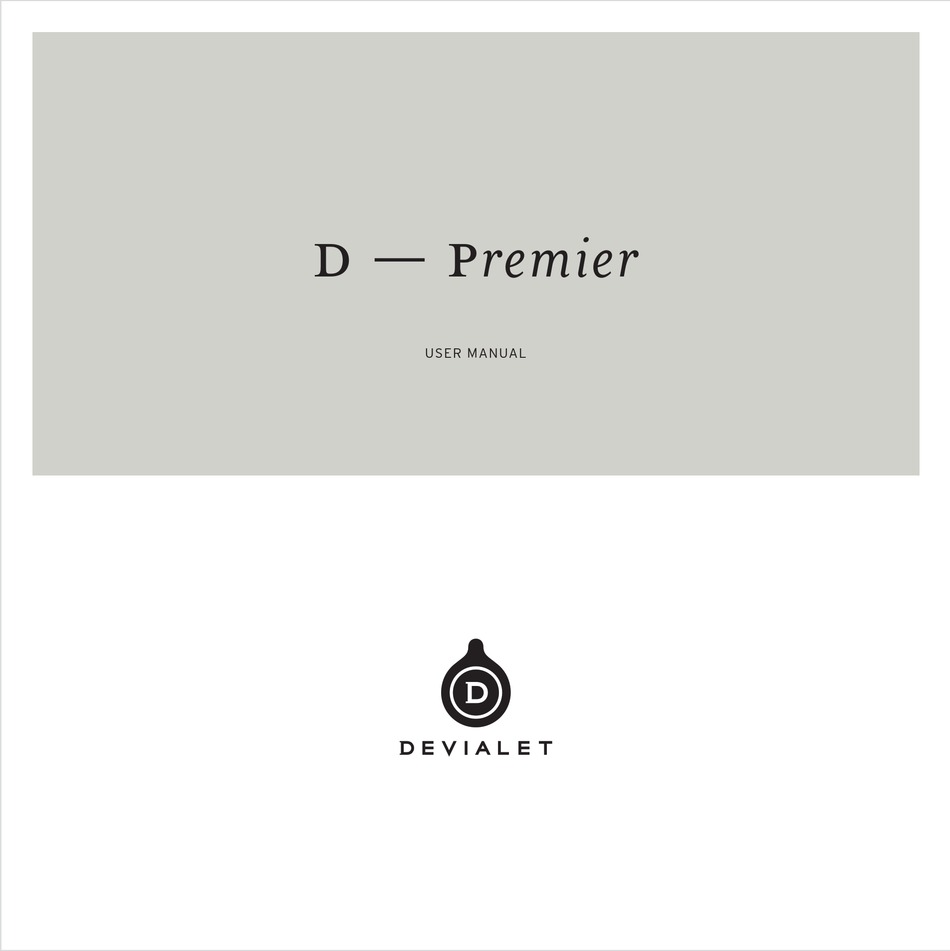

- Page 1 d — premier USER MANUAL...
- Page 2 Share them, discover new music, more than ever your pleasure is the driving force behind our innovation. Devialet strives to reach exellence with simplicity of use in mind.This manual contains all the information you need to setup and use your D-Premier.You will find additional information on our website www.devialet.com.
- Page 3 What’s included in your d-premier package • D-PREMIER • REMOTE DEVICE (BATTERIES INCLUDED) • POWER CABLE • USER MANUAL • WARRANTY BOOK • MICROFIBER WIPE • TEMPLATE FOR VERTICAL MOUNTING • HEX KEY (TO CHANGE BATTERIES IN THE REMOTE DEVICE) SOURCE INVERT BASS...
- Page 4 D-Premier set-up D-Premier can be placed horizontally, or mounted on the wall in a vertical position. To mount it vertically, use the template provided. It indicates the positioning of fixing points on the wall, the type of screws as well as assembly instructions. The slots beneath the unit’s feet are designed to lock the D-Premier in place using appropriate screws.
- Page 5 Connecting sources & speakers Remove the protective film from the D-Premier top panel. Connect your sources and speakers. Then connect the D-Premier to the AC power supply using the mains cord provided. Note that earth is required. We recommend the use of the digital inputs (for a CD-player for instance). All the connecting ports are located at the rear of the amplifier, recessed under the rear panel.
- Page 6 SD CARD / SET-UP SD CARD SLOT — FOR THE CONFIGURATION OF THE AMPLIFIER OPTICAL 1 & 2 TOSLINK® OPTICAL INPUTS — FOR CD, DVD, COMPUTER OR PORTABLE DIGITAL PLAYERS… LINE 2 / PHONO (MC/MM) * INPUTS RIGHT (R) AND LEFT (L) FOR TURNTABLE (MM) LINE 1 * INPUTS RIGHT (R) AND LEFT (L) FOR CD, DVD, COMPUTER, …...
- Page 7 Getting started & instructions To turn on your D-Premier, press the main power button on the front panel Hold the remote device about 30cm from the amplifier and turn the main volume dial to activate it. In everyday use, the main button on the front panel of the D-Premier or the button on the remote device allows you to: - turn on the unit or activate sleep mode: short press...
- Page 8 D-Premier control screen The control screen indicates by default the volume level (from -97,5dB to +30dB) as well as the source selected. Successive tapping on the button allows you to change the desired source. The analogue sources always appear in black. The connected digital sources appear in black or, in orange when there are no signals.
- Page 9 Turn off the amplifier, eject the SD card located at the rear of the amplifier. Insert the SD card in your computer. Go to our website www.devialet.com and follow the instructions under the ‘Customising D-Premier’ section. USER MANUAL — 08...
- Page 10 Once your upgrade or new settings are saved, insert your SD card back into the D-Premier. Turn on the unit, the screen will indicate that the new settings are loading, this process is automatic and may take a few minutes to complete.
- Page 11 Changing batteries on your D-Premier’s remote device D-Premier’s remote operates with tow AAA batteries LR03 1,5V (provided with the product); life span is about 2 years (please recycle your used batteries). The battery compartment is located at the back of the remote. To access the batteries, unscrew the back panel using the hex key provided.
-
Page 12: Technical Specifications
Technical specifications d-premier — MAXIMUM POWER: 2x240W - SPEAKER IMPEDANCE RANGE: 8 TO 2 — 600W SWITCHED-MODE POWER SUPPLY — D/A CONVERTER T.I. PCM 1792 192kHz/24 bits — COLOR SCREEN — INTERNAL IR SENSOR — THD+N AT FULL POWER: 0.001% —...
