Jonix J-Master10 Use And Maintenance Manual

Ionising generators
Hide thumbs Also See for J-Master10:

Advertisement

Table of Contents

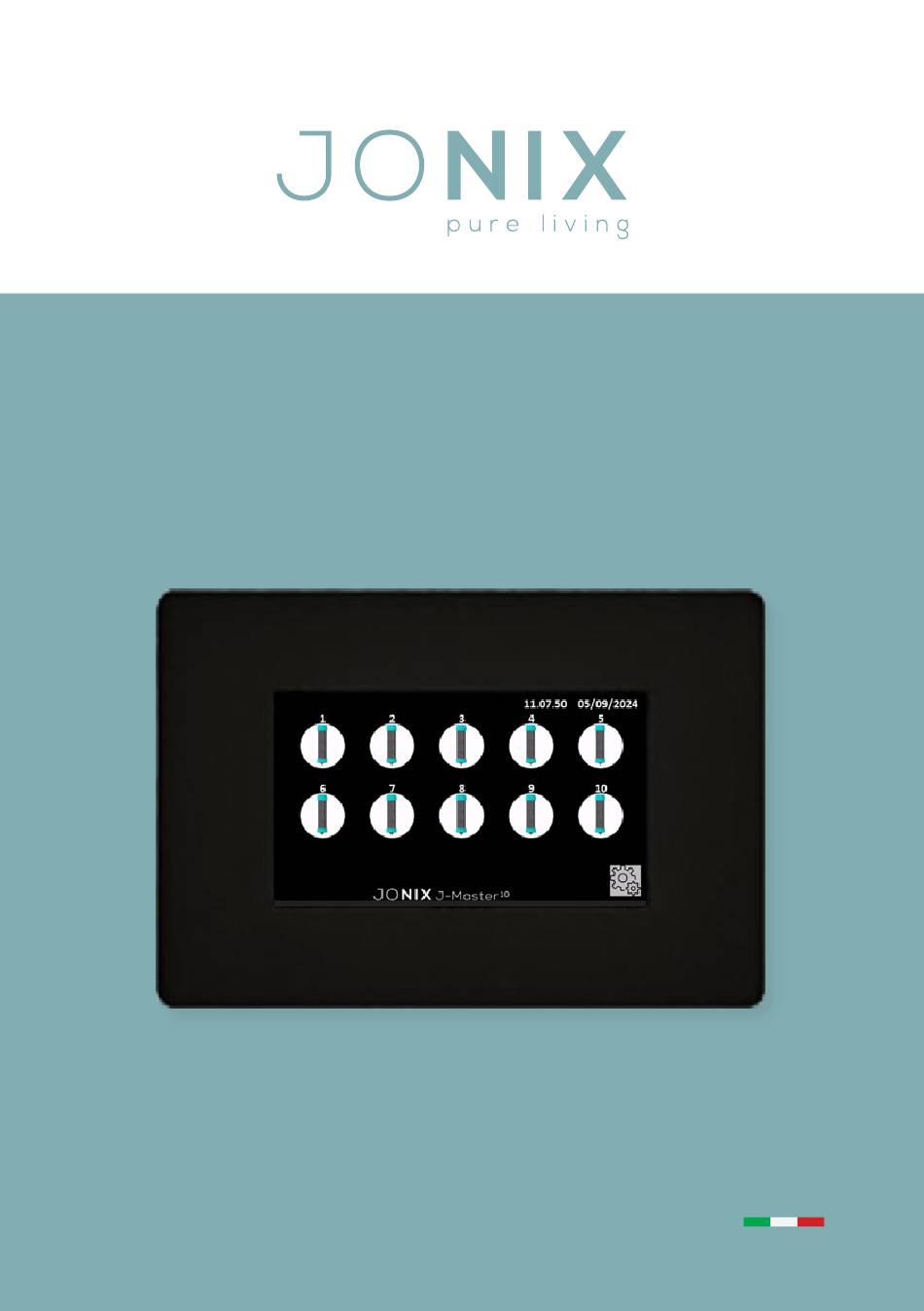

J-Master
10
USE AND MAINTENANCE MANUAL
(ENABLED TECHNICIAN)
IONISING GENERATORS
MANAGEMENT SOFTWARE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J-Master10 and is the answer not in the manual?

Questions and answers

Related Manuals for Jonix J-Master10

Summary of Contents for Jonix J-Master10

  • Page 1 J-Master USE AND MAINTENANCE MANUAL (ENABLED TECHNICIAN) IONISING GENERATORS MANAGEMENT SOFTWARE...
  • Page 2 Translation of the original instructions in Italian. No responsibility is assumed for translations into other languages that do not reflect the original meaning. JONIX S.p.A. reserves all rights to this manual including the right, at any time, to make necessary changes and improvements to its products and to the manual without prior notice. Even partial reproduction of this...

  • Page 3: Table Of Contents

    J-Master CONTENTS 1 - OPERATING SYSTEM J-Master 3.1 - INTRODUCTION 3.2 - SUPERVISION AND CONTROL SYSTEM 3.3 - POWER SUPPLIES AND CONNECTIONS 2 - User Interface 3 - Maintenance Technician Interface 4 - SuperAdministrator Interface (Only for enabled technicians) 3 - 24...

  • Page 4: Operating System J-Master 10

    The software allows the devices to be controlled in both Stand Alone and Modbus mode in the same system. The change of control mode of the devices (from Stand Alone to Modbus and vice- versa) is always modifiable. However, the operation must be performed by the company Jonix spa or by an authorised installer.

  • Page 5: Power Supplies And Connections

    J-Master 1.3 POWER SUPPLIES AND CONNECTIONS The display used for J-Master is a 4.3” touch screen device that must be powered by 24Vdc (Pin1-2) via the provided power supply unit. manages 1 to 10 devices equipped with board (JX11000042). In order to manage J-Master the devices, the display must be connected to the boards via an RS485 Modbus serial line with a 2-wire twisted and shielded earth cable (Belden recommended) (Pin6-7).

  • Page 6: User Interface

    J-Master 2 - User Interface allows the user to view the status of connected devices. J-Master The user will be able to: - View devices; - View if devices are correctly connected to the Modbus RS485 serial port; - View whether the device is on or off; - View any reports (generator maintenance, generator replacement, fault);...
  • Page 7 J-Master The activated device display will look like the screenshot on the right: If one or more devices require periodic maintenance (cleaning of the generators) a Flashing yellow “LED” message, corresponding to each device, positioned in the top right of the corresponding icon and the central “maintenance required”...
  • Page 8 J-Master Clicking on each device will access the page dedicated to the specific information of the selected device. This section will display: - the address of the peripheral device (from 1 to 10); - the command mode (Stand Alone: external contact; Modbus: from program to display); - The threshold limit of the operating hours during which the generators are scheduled to be cleaned (Maintenance) and replaced (Replacement);...
  • Page 9 J-Master In the event of an anomaly or when one of the devices requires assistance, two yellow icons with an exclamation mark (!) will appear on the sides of the clock to signal the requirement for intervention of one or more devices. The display can be connected to a local LAN network.

  • Page 10: Maintenance Technician Interface

    Pressing the white bar above the gears will open a keypad with which to enter the pass- word. By default the password is but it can be customised by the installer or by the company Jonix s.p.a. 10 - 24...
  • Page 11 J-Master Press the “Ent” key to confirm the keypad code. press the central grey icon with the gears to access the Mainte- nance Technician menu. Press the "Clock" key to access the date and time settings: 11 - 24...
  • Page 12 J-Master After setting the time and date, to save press the save icon in the bottom left To return to the main menu press green icon in the bot- tom right Press the “IP” key to generate the static IP with which to remotely access the display.
  • Page 13 J-Master By pressing the "Languages" key it will be possible to change the language in which the various operations on the display are de- scribed. The languages available are Ital- ian, German, French, Spanish and English. To change language simply press on the flag. To return to the main menu press the green icon in the bottom...
  • Page 14 In the example, only devices 1 and 2 (enabled) can be controlled, while devices 3 to 10 are not enabled. Adding devices can only be performed by Jonix spa or by an authorised installer.
  • Page 15 J-Master After performing the intervention, reset the parameters by entering the “Reset” section and press- ing the corresponding key. As can be seen in the screenshots, a red “LED” has been inserted to indicate which parameter to restore. Maintenance: Replacement: Once the reset is performed, the hour meter will be reset to zero.

  • Page 16: Superadministrator Interface (Only For Enabled Technicians)

    J-Master 4 - SuperAdministrator Interface (Only for qualified technicians) The SuperAdmin section of the J-Master software allows the qualified technician to completely program the supervision system. In addition to User view and Maintenance Technician scheduling, the SuperAdmin can: - Change and reset the maintenance technician passwords; - Assign or change device addresses;...
  • Page 17 J-Master Press the “Ent” key to confirm the keypad code. press the central grey icon with the gears to access the SuperAdmin menu. This menu includes everything described in the Maintenance Technician section (therefore setting of the Clock, the IP address, the Languages, the Command Program and the Resets); it also includes additional functions necessary for configuring, verifying and testing the system.
  • Page 18 J-Master The SuperAdmin password is locked and cannot be changed. To change the Maintenance Technician password press on the corresponding bar, indicate the new password via the keypad and confirm via the "Ent" key ; to make the change effective, press the save icon located in the bottom left To return to the default settings simply press the red “RESET”...
  • Page 19 J-Master To make the change, press the save icon in the bottom left As can be seen in the example screenshot, proceeding with sav- ing changes the device address from ID1 to ID2. To return to the main menu press the green icon in the bottom right Press the “Set Periph”...
  • Page 20 Any modification of these parameters must be agreed with the technical depart- ment of Jonix s.p.a. After selecting the device to be modified, press the “READ” key , then set the values and press the corresponding “WRITE”...
  • Page 21 J-Master Press the “Open loop” key to enter the complete query page of the 10 boards, whether or not they are connected to the system: The page consists of 2 screens, which can be consulted with the arrows “<” and “>” in the bottom right, in order to view all the parameters: By pressing the “open loop”...
  • Page 22 J-Master By pressing the “Closed loop” key, it is possible to perform a functional test of the devices present. Pressing the key in the bottom right of the “closed loop” test a function starts which continu- ously interrogates all the devices alternately, allowing the technician to verify the various messages sent and the modified parameters (only...
  • Page 24 JONIX Benefit Company Registered Office Operational Headquarters Research and Development info@jonixair.com Viale Spagna 31/33 Via dell’Artigianato, 1 Headquarters jonixsrl@legalmail.it 35020 Tribano (PD) - Italy 35020 San Pietro Viminario Via Tegulaia 10/b Tel. +39 049 9588511 (PD) – Italy 56121 Pisa - Italy Fax +39 049 9588522 Tel.
