- Page 1 User Manual Multi-Voltage Regulated Adaptor Module AA‐0372 Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com...

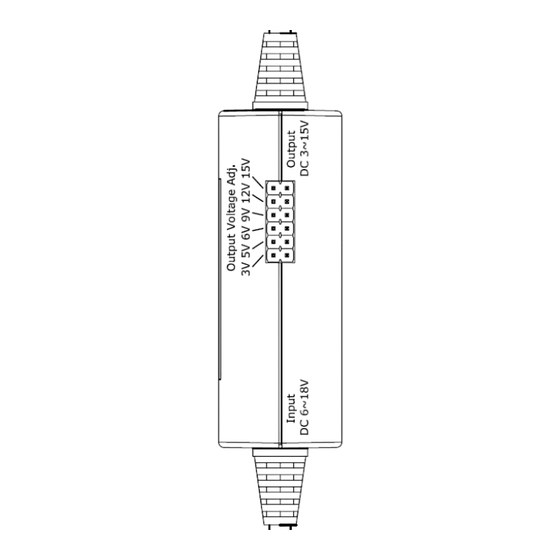

- Page 2 Technical Specifications: Input voltage: 6‐18V Output voltage: 3‐15V Max output current: 1.5A Dimensions: 63(L) x 24(Dia.) mm Instructions: Connect the module according to the wiring diagram. Incorrect wiring will damage the module, and may short‐ circuit your devices if you connect it in the incorrect polarity. Adjust the output voltage with jumpers. Mount the module in a well‐ventilated place, as the unit will heat up depending on the load. Ensure to mount it in a place where the heating up of the module, up to 50°C, will not have any negative effect on its surroundings. If the module gets too hot during use, or the current is overloaded, it will switch off automatically. Notes: The input voltage must be larger than the required output voltage. Never get any part of the module wet. Never attempt to open, modify or repair any part of the module. ...
- Page 3 ...
