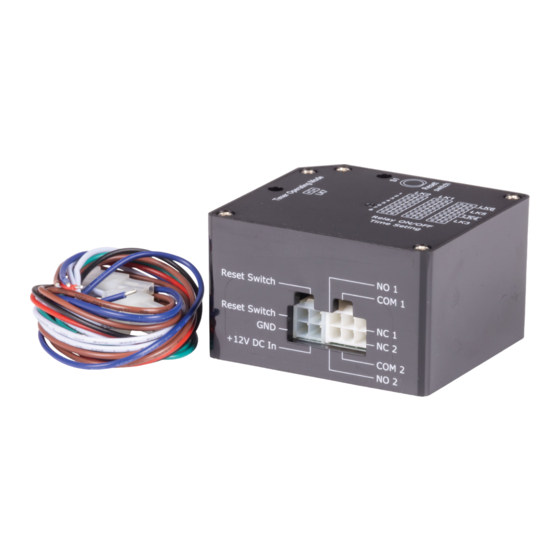

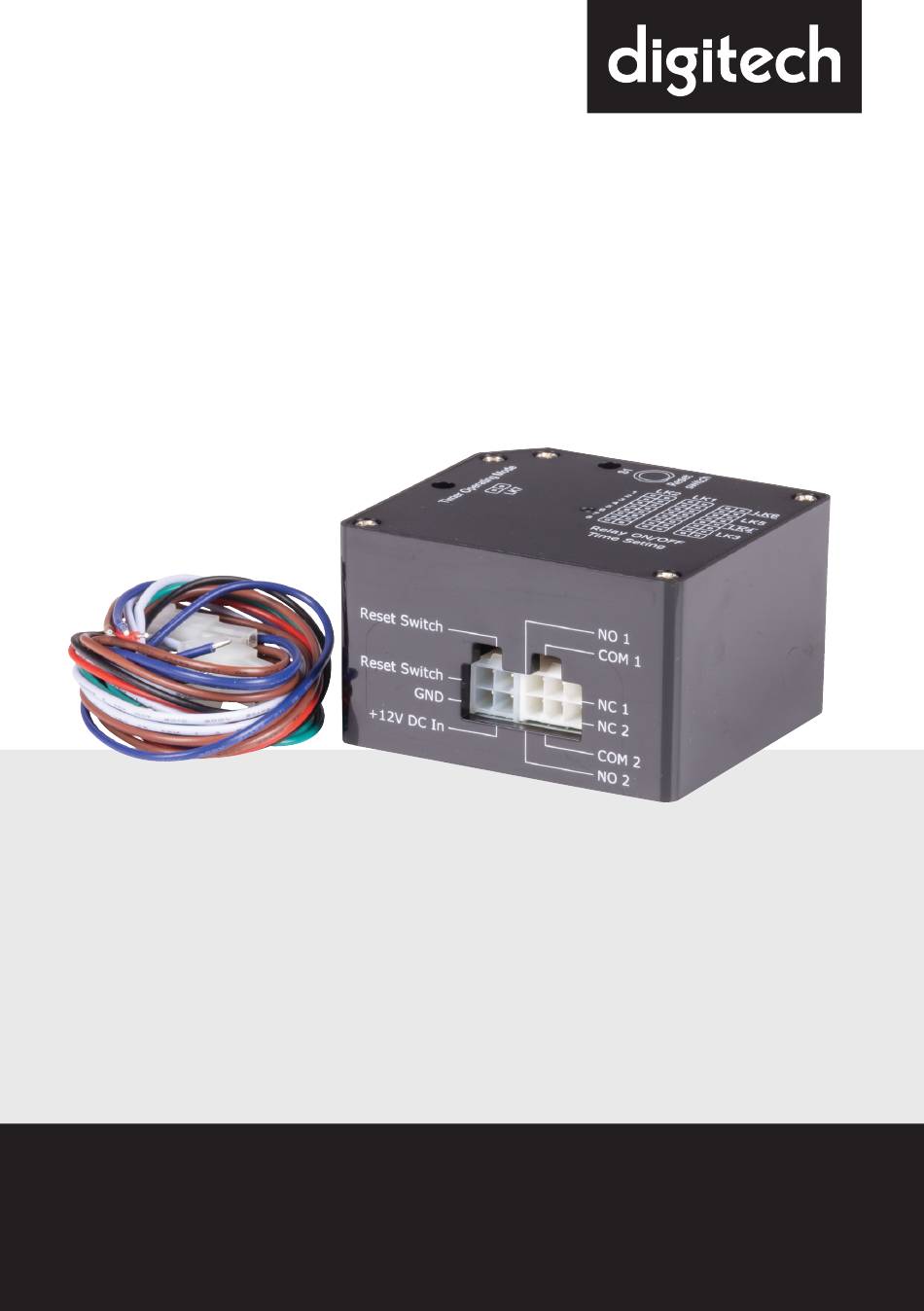

- Page 1 Programmable Interval 12V Timer Module Model: AA0378 Instruction Manual...
-
Page 2: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. - Page 3 (set the multimeter to beeper) The AA0378 Programmable interval 12V timer module has one relay offering two connections like this, so it is a Double Pole Double Throw relay, or DPDT.
- Page 4 EXAMPLES The linker positions are fairly easy to understand. Have a look at some examples: 1. On for 1 minute, off for 10, in a cycle: ON 10S OFF 10S LK4 is set; LK6 is set; LK3 is set to S; LK5 is set to S;...
- Page 5 2. On for 20 seconds, off for 90 minutes, continuously ON 30S OFF 30S LK4 is set; LK6 is set; LK3 is set to S; LK5 is set to S; LK1 is set to 3; LK2 is set to 3. Note: Link 2 is missing, as “9”...
-
Page 6: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
