Infinity Furion H402 Hybrid User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

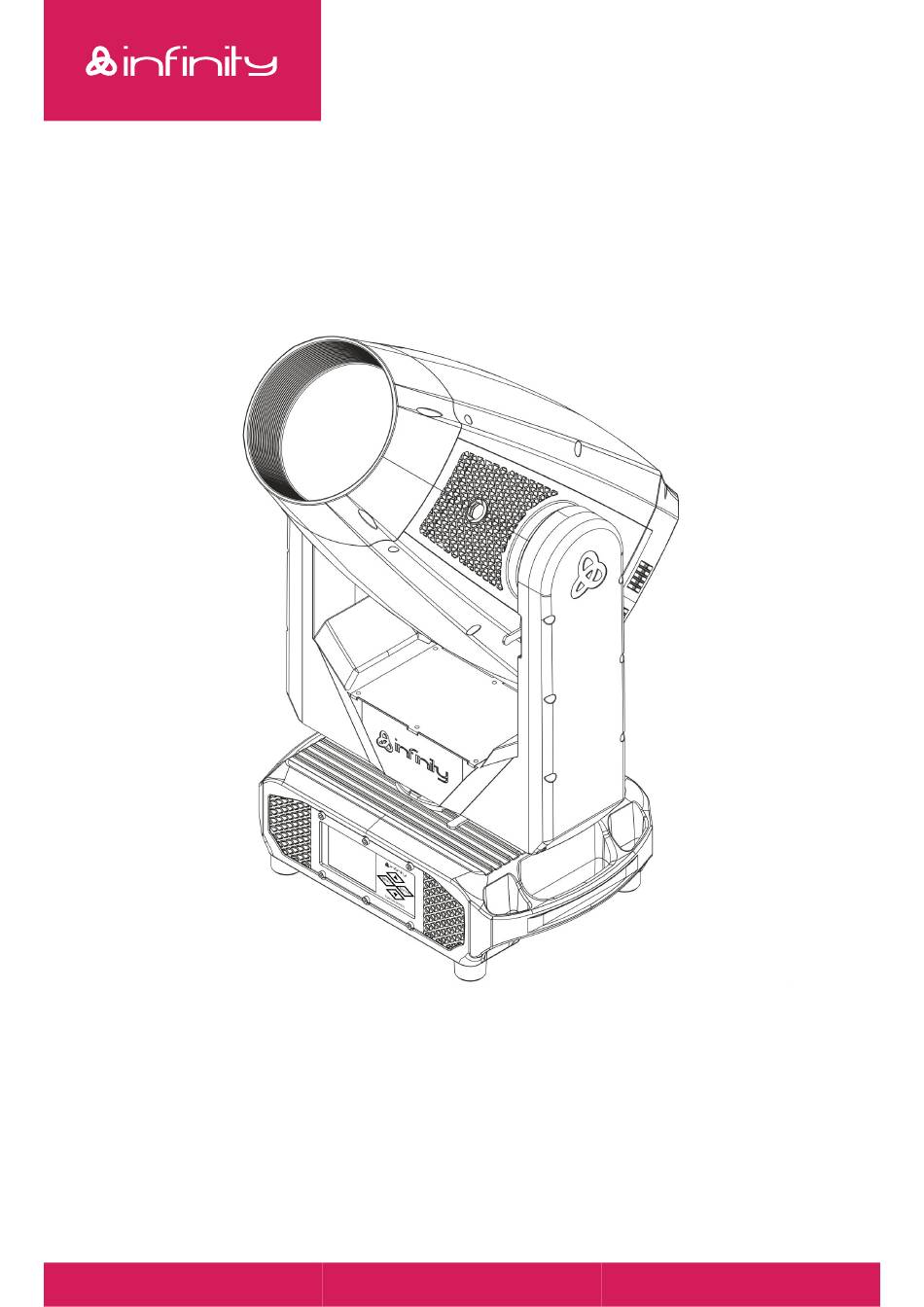

USER MANUAL
ENGLISH
V1.0
Furion H402 Hybrid
Product code: 41431
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furion H402 Hybrid and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity Furion H402 Hybrid

Summary of Contents for Infinity Furion H402 Hybrid

  • Page 1 USER MANUAL ENGLISH V1.0 Furion H402 Hybrid Product code: 41431...
  • Page 2 Furion H402 Hybrid Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Furion H402 Hybrid Table of contents 1. Introduction ............................
  • Page 4 Furion H402 Hybrid 6.7. Main Menu Options ........................

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Infinity Furion H402 Hybrid • • Schuko to Power Pro True cable (1,5 m) • •...

  • Page 6: Symbols And Signal Words

    Furion H402 Hybrid 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    Furion H402 Hybrid Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 Furion H402 Hybrid WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.
  • Page 9 Furion H402 Hybrid Attention Risk of fire The distance between the device and the lighted object should be at least 2 m. • • Do not aim the device towards flammable materials. • • Do not cover the LEDs or lens.

  • Page 10: Requirements For The User

    Furion H402 Hybrid Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP65 rated. IP (Ingress Protection) 65 class means that the device is dust-tight and protected against harmful effect of water jets.

  • Page 11: Description Of The Device

    Description of the Device The Infinity Furion H402 Hybrid is an IP65-rated moving head with a 420 W discharge lamp, a beam angle between 1,6°–41,7° and a large front lens. This device has a color wheel with 13 colors, plus an open position, a rotating gobo wheel with 9 gobos, and a static gobo wheel with 16 gobos.

  • Page 12: Back View

    Furion H402 Hybrid 3.2. Back View Figure 3 Lamp cover Protective vent (M12x1,5) IP65-rated RJ45 connector IP65-rated RJ45 connector IP65-rated Seetronic power connector OUT IP65-rated Seetronic power connector IN Fuse (F10 AL, 250 V) IP65-rated 5-pin DMX signal connector IN...

  • Page 13: Product Specifications

    Furion H402 Hybrid 3.4. Product Specifications Model: Furion H402 Hybrid Source: Light source type Discharge  Light source quantity 1  Light source power 420 W Life expectancy 3000 h Luminous flux (total) 30000 lm Optical: Beam angle minimum (circular) 1,6° Beam angle maximum (circular) 41,7°...
  • Page 14 Furion H402 Hybrid Power consumption 650 W Power connector IN Power Pro True  Power connector OUT Power Pro True  DMX connector XLR 5P IN/OUT DMX connector IN XLR 5P  DMX connector OUT XLR 5P  Data connector etherCON IN/OUT Data connector IN RJ45 ...

  • Page 15: Effect Wheels

    Furion H402 Hybrid 3.5. Effect Wheels 3.5.1. Color Wheel Figure 5 3.5.2. Rotating Gobo Wheel Figure 6 Product code: 41431...

  • Page 16: Static Gobo Wheel

    Furion H402 Hybrid 3.5.3. Static Gobo Wheel Figure 7 Product code: 41431...

  • Page 17: Dimensions

    Figure 8 3.7. Optional Accessories You can additionally purchase the following accessories: • • 81019 Ushio NSL400L Replacement lamp for Furion H402 • • 41549 Infinity IP Tester for Furion Contact your Highlite International dealer for more information. Product code: 41431...

  • Page 18: Installation

    Furion H402 Hybrid Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 19 Furion H402 Hybrid Figure 10 Figure 11 04) Attach the device to the supporting structure. Make sure that the device cannot move freely. 05) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.

  • Page 20: Lock/Unlock The Device

    Furion H402 Hybrid 4.5. Lock/Unlock the Device The device has a locking mechanism on the yoke and on the base. • • To unlock the device, slide the base locking mechanism (18) to the the right or slide the yoke locking mechanism (03) downwards.

  • Page 21: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 2 devices Furion H402 Hybrid • • at 200–240 V: 5 devices Furion H402 Hybrid Product code: 41431...

  • Page 22: Setup

    5.2. Stand-alone Setup When the Furion H402 Hybrid is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel or in auto mode. For more information refer to Control Modes (see 6.2.

  • Page 23: Dmx Linking

    Furion H402 Hybrid Figure 13 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device.

  • Page 24: Dmx Addressing

    04) Continue assigning the starting addresses of the remaining devices by adding each time 27 to the previous number. Make sure that you do not have any overlapping channels in order to control each Furion H402 Hybrid correctly. If two or more devices are addressed similarly, they will work similarly.

  • Page 25: Ethernet Connection

    Furion H402 Hybrid 5.5. Ethernet Connection 5.5.1. Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art- Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

  • Page 26: Art-Net/Sacn Linking

    Furion H402 Hybrid 5.5.3. Art-Net/sACN Linking To connect multiple devices on one Art-Net/sACN data link, follow the steps below: 01) Use a CAT-5/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the 1 device.

  • Page 27: Operation

    Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. 6.2. Control Modes The Furion H402 Hybrid supports the following control modes: • • Stand-alone: Stand-alone mode (built-in programs), manual control •...

  • Page 28: Control Panel

    After the device is connected to power supply, the device will perform a reset. During the reset the display shows a splash screen with the Infinity logo and the name of the device: During the reset procedure it is possible to enter the menu to change the DMX address.

  • Page 29: Display Lock

    Furion H402 Hybrid I. DMX starting address of the device. • • If the DMX connection is lost or the device is not connected, the DMX starting address is red. • • If the device is receiving DMX signal, the DMX starting address is white.

  • Page 30: Unlocking Without Password

    Furion H402 Hybrid 6.5.2. Unlocking without Password 6.5.2.1. Option 1 Press the ENTER button to unlock the device. The display shows: 6.5.2.2. Option 2 01) Press the MENU button. 02) Press the ENTER button to unlock the device. The display shows: 6.5.3.

  • Page 31: Menu Overview

    Furion H402 Hybrid 6.6. Menu Overview Level 1 Level 2 Level 3 Level 4 Address (see 6.7.1. DMX Address Address Setting 001–512 page 35) Screen Reverse AUTO Pan Reverse Tilt Reverse Pan Angle Tilt Angle Auto Pan Invert Backlight Timer...
  • Page 32 Furion H402 Hybrid State/Power on Off Via Dmx On If Dmx On Off If Dmx Off Ignition Delay 000–255 Low Power Delay 000–255 Reset Lamp Time Interval 10–250 Special Set RESET Remain Time TILT SHUT1 SHUT2 COLOR GOBO GOBO ROTATE...
  • Page 33 Furion H402 Hybrid Gobo/Gobo Rotate Zoom Frost Factory Settings Stand Alone (see 6.7.3. Stand Alone Program Number 1–9 page 42) WDMX Control Mode ArtNet sACN Basic Personality Advance User NO/1~Advance Num Pan Fine NO/1~Advance Num Tilt NO/1~Advance Num Tilt Fine...
  • Page 34 Furion H402 Hybrid Control NO/1~Advance Num Auto Test Apply 000–255 Pan Fine 000–255 Tilt 000–255 Tilt Fine 000–255 P/T Speed 000–255 Dimmer 000–255 Dimmer Fine 000–255 Shutter 000–255 Color 000–255 Gobo 000–255 Gobo Rotate 000–255 Gobo Rotate Fine 000–255 Gobo2 000–255...
  • Page 35 Furion H402 Hybrid ZFAN1 Speed 2000 FAN1 Speed 2000 FAN2 Speed 2000 FAN3 Speed 2000 FAN4 Speed 2000 FAN5 Speed 2000 FAN6 Speed 2000 FAN7 Speed 2000 FAN8 Speed 2000 AFAN1 Speed 2000 Base Fan1 Speed 2000 Base Fan2 Speed...

  • Page 36: Main Menu Options

    Furion H402 Hybrid 6.7. Main Menu Options The main menu has the following 6 options: DMX Address Settings Menu Stand Alone Control Mode Manual Control Information 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus.

  • Page 37: Settings Menu

    Furion H402 Hybrid 6.7.2. Settings Menu In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 21 available options: • • Screen Reverse: Rotate the text on the display 180° when the device is mounted upside down (NO/YES/AUTO).

  • Page 38: Network Setup

    Furion H402 Hybrid • • BL.O. P/T Move: The device will black out the light output when Pan/Tilt are active (NO/YES) • • BL.O. Color Move: The device will black out the light output during the color wheel movement (NO/ YES) •...

  • Page 39: Lock Code

    Furion H402 Hybrid 6.7.2.2. Lock Code In this submenu you can set a personal lock code or change the current lock code. 01) Press the UP/DOWN buttons to insert the master code: 6468: 02) Press the ENTER button to confirm.

  • Page 40: Lamp Setting

    Furion H402 Hybrid 6.7.2.3. Lamp Setting In this submenu you can adjust the lamp settings. 01) Press the UP/DOWN buttons to scroll through the 8 available options: • • On/Off: Set the lamp setting at start-up (ON/OFF) • • State/Power on: The lamp turns on when the device is powered up (ON/OFF) •...

  • Page 41: Interval Code

    Furion H402 Hybrid 6.7.2.4.1. Interval Code In this submenu you can set the maintenance timer for the lamp (10–250). 01) Press the ENTER button to open the submenu. 02) Press the UP/DOWN buttons to increase/decrease the values.The values are in hours.

  • Page 42: Service Menu

    Furion H402 Hybrid 6.7.2.5. Service Menu In this submenu you can make fine adjustments of the home position of all moving parts or change the MAC address and the RDM identification number of the device. Note: If you forget your previously set personal lock code, you can still insert the master code: 6468 which overrides the personal code.

  • Page 43: Reset Function

    Furion H402 Hybrid 6.7.2.6. Reset Function In this submenu you can reset the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 7 available options: • • Pan/Tilt: Reset Pan/Tilt (NO/YES) • • Shutter/Prism: Reset Shutter/Prism (NO/YES) •...

  • Page 44: User Personality

    Furion H402 Hybrid • • Control Mode: DMX, WDMX, Art-Net, sACN • • Personality: Basic (20 channels), Advance (27 channels), User (up to 27 channels) • • User Personality (see 6.7.4.1. User Personality) 02) Press the ENTER button to confirm the selection.

  • Page 45: Auto Test

    Furion H402 Hybrid 6.7.5.1. Auto Test In this submenu you can automatically run an auto test of the functions of the device. (If you have selected Auto Test in the previous menu and pressed the ENTER button) The device automatically runs an auto test of the functions of the device and the display shows: 6.7.5.2.

  • Page 46: Information

    Furion H402 Hybrid 6.7.6. Information In this menu you can view the parameters of the device. 01) Press the UP/DOWN buttons to scroll through the 4 available options: • • Fixture Info (see 6.7.6.1. Fixture Info) • • Fan Info (see 6.7.6.2.

  • Page 47: Fan Info

    Furion H402 Hybrid 6.7.6.2. Fan Info In this submenu you can view the parameters of the fans and other parameters of the device. Press the UP/DOWN buttons to see all available parameters. • • BFAN1 Speed: Shows the current BFAN1 Speed •...

  • Page 48: Error Info

    Furion H402 Hybrid 6.7.6.3. Error Info In this submenu you can view whether there are any system errors. If you have selected Error Info and there are no errors the display shows: Note: In case of an error message, discontinue the use of the device and contact your Highlite International dealer for more information.

  • Page 49: Dmx Channels

    Furion H402 Hybrid 6.8. DMX Channels 6.8.1. DMX Channels Overview Basic Advance Channel Function Default Highlight 20 CH 27 CH Value 000–255 0°–540° 000–255 Fine positioning Pan Fine 16-bit 000–255 0°–260° Tilt 000–255 Fine positioning Tilt Fine 16-bit 000–255 From fast to slow Pan/Tilt Speed 000–255 0–100 %...

  • Page 50: Basic (20 Channels), Advance (27 Channels)

    Furion H402 Hybrid 6.8.2. Basic (20 Channels), Advance (27 Channels) Basic Advanced Function Value Setting Color Control Type 20 CH 27 CH 000–255 Pan adjustment 0°–540° 000–255 Pan adjustment, 16-bit Pan Fine 000–255 Tilt adjustment 0°–260° Tilt 000–255 Tilt adjustment, 16-bit Tilt Fine 000–255 From fast to slow...
  • Page 51 Furion H402 Hybrid 168–176 Color 12 + Color 13 proportional 177–185 Color 13 + white proportional 186–219 Color scroll, from fast to slow proportional 220–223 Stop step 224–255 Reverse color scroll, from slow to proportional fast 000–004 Open step 005–006 Gobo 1 (index) Astroids step 007–008 Gobo 2 (index) Psycho...
  • Page 52 Furion H402 Hybrid 133–140 Gobo 2 shake, from slow to fast proportional (rotating) 141–148 Gobo 3 shake, from slow to fast proportional (rotating) 149–156 Gobo 4 shake, from slow to fast proportional (rotating) 157–164 Gobo 5 shake, from slow to fast...
  • Page 53 Furion H402 Hybrid 056–063 Open step 064–067 Gobo 1 shaking, slow to fast proportional 068–071 Gobo 2 shaking, slow to fast proportional 072–075 Gobo 3 shaking, slow to fast proportional 076–079 Gobo 4 shaking, slow to fast proportional 080–083 Gobo 5 shaking, slow to fast proportional 084–087 Gobo 6 shaking, slow to fast...
  • Page 54 Furion H402 Hybrid Stop step 129–240 Reverse gobo rotating, from slow to proportional fast 241–255 Gobo swiveling, from fast to slow proportional 000–255 Fine adjustment Prism 2 rotating 16-bit 000–255 Wide to narrow Zoom 000–255 Fine adjustment Zoom 16-bit 000–255 Far to near Focus 000–255 Fine adjustment...
  • Page 55 Furion H402 Hybrid 060–064 BO Gobo ON step 065–104 Reserved 105–109 DMX Fail: Hold step 110–114 DMX Fail: Off step 115–124 Reserved 125–129 Lamp ON step 130–199 Reserved 200–204 Reset P/T step 205–209 Reset Prism step 210–214 Reset Color step 215–219 Reset Gobo/Gobo rotate...

  • Page 56: Rdm Information

    Furion H402 Hybrid 6.9. RDM Information This device supports RDM (see 6.9.2. Supported RDM PIDs (Parameter IDs)). 6.9.1. RDM Details • • Responder ID: 29B4:0E3XXXXX • • Manufacturer's ID: Infinity (Highlite International B.V.) • • Manufacturer Label: Infinity • •...

  • Page 57: Troubleshooting

    Furion H402 Hybrid Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.
  • Page 58 Furion H402 Hybrid The device is not connected to • • Create a wireless connection, refer to the transmitter, when the W-DMX Wireless Connection (see 5.4. Wireless indicator on the display of the Connection) device is gray. The device is trying to connect to •...

  • Page 59: Error Messages

    Furion H402 Hybrid 7.1. Error Messages In case one of the error messages below appears on the error information screen, discontinue the use of the device and contact your local dealer. For more information, refer to Error Info (see 6.7.6.3. Error Info on page 47).

  • Page 60: Maintenance

    Furion H402 Hybrid Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •...

  • Page 61: Corrective Maintenance

    Furion H402 Hybrid 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.
  • Page 62 Furion H402 Hybrid 05) Remove the lamp cover (08), as shown in Fig. 20. 06) Disconnect the 2 orange lamp connectors from the lamp terminals, as shown in Fig. 21. Figure 20 Figure 21 07) Loose the 2 screws on the right side of the lamp with an H2,5 x 100 mm Allen screwdriver, as shown in Fig. 22  ...

  • Page 63: Replacing The Fuse

    8.3.3. Draining Condensation Water The Furion H402 Hybrid is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during use, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

  • Page 64: Deinstallation, Transportation And Storage

    Approval Hereby, Highlite International declares that the device Furion H402 Hybrid, product code 41431, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
  • Page 65 Furion H402 Hybrid   Product code: 41431...
  • Page 66 Furion H402 Hybrid   Product code: 41431...
  • Page 67 Furion H402 Hybrid Product code: 41431...
