Infinity iW-1240 RDM Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

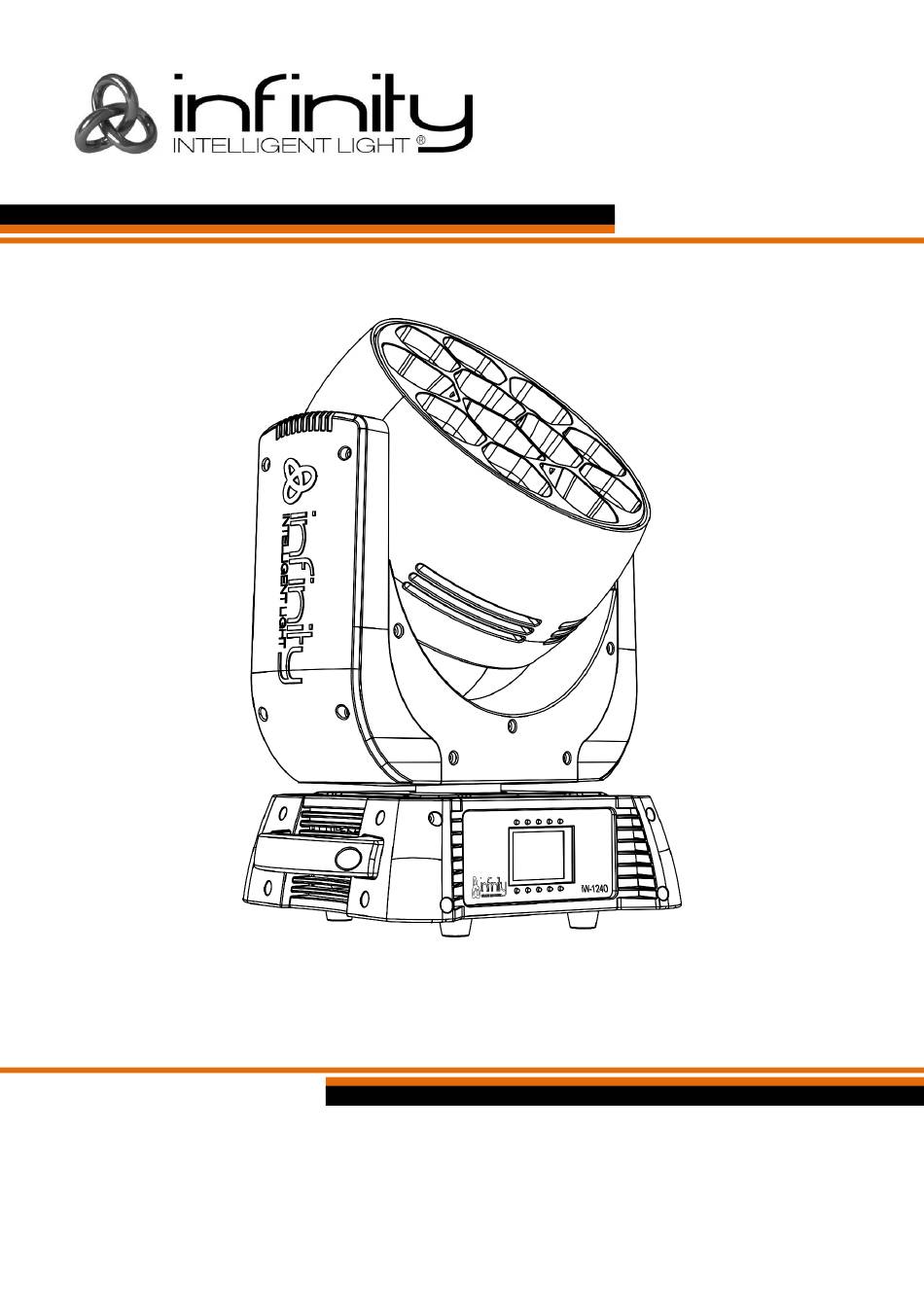

MANUAL
ENGLISH
Infinity iW-1240 RDM
V2
Ordercode: 41527
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-1240 RDM and is the answer not in the manual?

Questions and answers

Related Manuals for Infinity iW-1240 RDM

Summary of Contents for Infinity iW-1240 RDM

  • Page 1 MANUAL ENGLISH Infinity iW-1240 RDM Ordercode: 41527 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Infinity iW-1240 RDM Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................8 Backside ..................................

  • Page 3: Warning

    Your shipment includes: ● Infinity iW-1240 RDM with PowerCON True 1 power cable (1,4 m) ● 2 brackets for truss mounting ●...
  • Page 4 For replacement use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.

  • Page 5: Operating Determinations

    When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 41527...

  • Page 6: Connection With The Mains

    Infinity iW-1240 RDM Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.

  • Page 7: Return Procedure

    Infinity iW-1240 RDM Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 8: Description Of The Device

    Infinity iW-1240 RDM Description of the device Features The Infinity iW-1240 RDM is a wash moving head with high output and great effects. ● Input voltage: 100-240V AC, 50/60Hz ● Power consumption: 460W ● Light source: 12 x 40W RGBW 4-in-1 Osram Ostar LED ●...

  • Page 9: Overview

    Infinity iW-1240 RDM Overview Fig. 01 01) 12 x 40W RGBW 4-in-1 Osram Ostar LED 02) Control buttons + LCD display Beam angle 4,5°-Electronic adjustment Beam angle 36°-Electronic adjustment Fig. 02 Ordercode: 41527...

  • Page 10: Backside

    11) 5-pin DMX signal connector IN Installation Remove all packing materials from the Infinity iW-1240 RDM. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 11: Control Modes

    03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see page 23 for more information about the built-in programs.

  • Page 12: Multiple Infinitys (Dmx Control)

    Infinity iW-1240 RDM Multiple Infinitys (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket.

  • Page 13: Multiple Infinitys (Artnet Control)

    03) Use a CAT-5/CAT-6 cable to connect your ArtNet controller to a network switch as shown in fig. 06. 04) Link all the Infinity’s by connecting their RJ45 sockets to your network switch, using a CAT-5/CAT-6 signal cable as shown in fig. 06.

  • Page 14: Connecting To A Network

    04) Set the IP address of your software/light controller to 2.x.x.x or 10.x.x.x, depending on the ArtNet settings. 05) Set the subnet mask to 255.0.0.0. on both – the Infinity and your software/light controller. Make sure that all the fixtures in the network have a unique IP address.

  • Page 15: Fixture Linking

    CAT-6 cable (recommended for best data transfer). Ordercode FL563 (3 m), FL566 (6 m), FL5610 (10 m), FL5615 (15 m), FL5640 (40 m). The Infinity iW-1240 RDM can be operated with a controller in control mode or without the controller in stand-alone mode.

  • Page 16: Control Panel

    When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+63=64 (064); the DMX address of the third Infinity should be 64+63=127 (127), etc.

  • Page 17: Menu Overview

    Infinity iW-1240 RDM Menu Overview Ordercode: 41527...

  • Page 18: Main Menu Options

    Infinity iW-1240 RDM Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Settings Mode OK/Enter Address Setting Left Previous screen/Infinity Logo Right 1. DMX Address With this menu you can set the DMX address.

  • Page 19: Edit Mode

    Infinity iW-1240 RDM 2. Edit Mode With this menu you can set your desired DMX personality and running mode. 01) Press the button and select 02) Press the button, to confirm. You can choose between 2 submenus. 03) Press the buttons to select the required mode.

  • Page 20: Settings Menu

    Infinity iW-1240 RDM 10) If you have chosen RUN MODE you can choose the desired operation mode. 11) Press the buttons to select the desired operation mode. 12) Press the button, to confirm. 13) Once you have selected the desired operation mode, press the buttons to change the value from NO to YES.

  • Page 21: Performance

    Infinity iW-1240 RDM 3.1. Performance With this menu you can set the performance settings. 01) Choose PERFORMANCE in the settings menu. 02) Press the buttons to select the desired setting. 03) Press the button, to confirm. 04) If you choose option PAN/TILT, you will enter a submenu.

  • Page 22: Service

    Infinity iW-1240 RDM DMX FAIL: Hold or Blackout. If you have chosen Blackout, the device will blackout the output, in case of a DMX signal error. If you have chosen Hold, the device will fall back on the last working DMX signal, which will ensure undisrupted performance.
  • Page 23 Infinity iW-1240 RDM 04) Press the buttons to select the desired setting. 05) Press the button, to confirm. 06) If you choose option RGB to W, you will enter a submenu. 07) Press the buttons to select the desired color in order to adjust the RGB calibration.

  • Page 24: Built-In Programs

    Infinity iW-1240 RDM 25) Press the buttons to insert the numbers in the following order: 1234. 26) Press the button, to confirm. 27) In the next screen you are able to choose a new password. 28) Press the buttons to insert the desired numbers.

  • Page 25: Information Menu

    Infinity iW-1240 RDM 03) Press the buttons to select the required test mode. 04) Press the button, to confirm. 05) If you have chosen AUTO TEST the device will automatically start its auto test program. 06) If you have chosen MANUAL TEST you will enter a submenu. You can choose from the 9 test options: Pan, Tilt, Red, Green, Blue, White, Dimmer, Strobe or Zoom.

  • Page 26: Dmx Channels

    Infinity iW-1240 RDM DMX Channels 21 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 27 Infinity iW-1240 RDM Channel 13 – Color Macros (CH6 must be set between 1-255 and CH7 between 5-9 No function 2700K 3200K 4200K 5600K 9-10 8000K Blue 12-48 From blue to cyan Cyan 50-86 From cyan to green Green 88-124...
  • Page 28 Infinity iW-1240 RDM 128-131 LED Pixel 1 & 2 & 10 132-135 LED Pixel 1 & 2 & 11 136-139 LED Pixel 1 & 2 & 12 140-143 LED Pixel 1 & 2 & 3 & 4 144-147 LED Pixel 1 & 2 & 3 & 5 148-151 LED Pixel 1 &...
  • Page 29 Infinity iW-1240 RDM 135-140 Program 21 with color flow 141-146 Program 22 with color flow 147-152 Program 23 with color flow 153-158 Program 24 with color flow 159-164 Program 25 with color flow 165-170 Program 26 with color flow 171-176...

  • Page 30: Channels

    Infinity iW-1240 RDM Channel 20 – Zoom 0-255 Gradual zoom adjustment, from small to big (4,5º-36º) Channel 21 – Channel Functions (Desired function starts after 5 seconds) No Function 10-19 Pan/Tilt black activated 20-29 Pan/Tilt black deactivated 30-39 Pan tilt speed fast...
  • Page 31 Infinity iW-1240 RDM Channel 8 – Shutter / Strobe (CH6, CH7 and CH9, CH10, CH11, CH12, CH13, CH14, CH15, CH16 or CH18 must be set between 1-255 Shutter closed Shutter open 10-50 Strobe effect 1, from fast to slow 51-54...
  • Page 32 Infinity iW-1240 RDM 5600K 9-10 8000K Blue 12-48 From blue to cyan Cyan 50-86 From cyan to green Green 88-124 From green to yellow Yellow 126-162 From yellow to red 164-200 From red to purple Purple 202-238 From purple to blue...
  • Page 33 Infinity iW-1240 RDM 152-155 LED Pixel 1 & 2 & 3 & 7 156-159 LED Pixel 1 & 2 & 3 & 8 160-163 LED Pixel 1 & 2 & 3 & 9 164-167 LED Pixel 1 & 2 & 3 & 10 168-171 LED Pixel 1 &...
  • Page 34 Infinity iW-1240 RDM 171-176 Program 27 with color flow 177-182 Program 28 with color flow 183-188 Program 29 with color flow 189-194 Program 30 with color flow 195-200 Program 31 with color flow 201-206 Program 32 with color flow 207-212...

  • Page 35: Channels

    Infinity iW-1240 RDM Channel 27 – Zoom 16Bit (CH26 must be set between 1-255 0-255 Fine gradual zoom adjustment, from small to big (4,5º-36º) Channel 28 – Channel Functions (Desired function starts after 5 seconds setting DMX value) No Function...
  • Page 36 Infinity iW-1240 RDM Channel 8 – Shutter / Strobe (CH6 and CH7, CH9, CH10, CH11, CH12, CH16, CH17, CH18, CH19, CH20, CH21, CH22, CH23, CH24, CH25, CH26 or CH27 must be set between 1-255 Shutter closed Shutter open 10-50 Strobe effect 1, from fast to slow...
  • Page 37 Infinity iW-1240 RDM 200-209 Fan fast 210-219 Fan auto 220-229 Auto test 230-239 Pan/Tilt reset 240-249 Zoom reset 250-255 Total reset Channel 16-63 Pixel Control Channel 16 – Red LED Pixel 1 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Red from 0 –...
  • Page 38 Infinity iW-1240 RDM Channel 20 – Red LED Pixel 2 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Red from 0 – 100% Channel 21 – Green LED Pixel 2 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Green from 0 –...

  • Page 39: Channels + 48 Channels (Dmx + Artnet)

    Infinity iW-1240 RDM Channel 62 – Blue LED Pixel 12 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Blue from 0 – 100% Channel 63 – White LED Pixel 12 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment White from 0 –...
  • Page 40 Infinity iW-1240 RDM Channel 9 – Red Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Red from 0-100% Channel 10 – Green Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9...
  • Page 41 Infinity iW-1240 RDM Artnet Channel 1 – Red LED Pixel 1 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green LED Pixel 1 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue LED Pixel 1 0-255 Gradual adjustment Blue from 0 –...
  • Page 42 Infinity iW-1240 RDM Channel 5 – Red LED Pixel 2 0-255 Gradual adjustment Red from 0 – 100% Channel 6 – Green LED Pixel 2 0-255 Gradual adjustment Green from 0 – 100% Channel 7 – Blue LED Pixel 2 0-255 Gradual adjustment Blue from 0 –...

  • Page 43: Channel Settings

    04) The electric power supply cables must not show any damages or material fatigue. The Showtec Infinity iW-1240 RDM requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth.

  • Page 44: Replacing The Fuse

    04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void.
  • Page 45 Infinity iW-1240 RDM Problem Probable cause(s) Solution ● Check if power is switched on One or more and cables are plugged in No power to the fixture fixtures do not function at all Primary fuse blown ● Replace fuse Fixtures reset The controller is not connected.

  • Page 46: Product Specifications

    Infinity iW-1240 RDM Product Specifications Model: Infinity iW-1240 RDM Input Voltage: 100-240V AC, 50/60Hz Power consumption: 460W (full output) DMX linking: 30pcs Power linking @120V 2pcs Power linking @240V 5pcs Fuse: T6,3AL/250V Dimensions: 375 x 275 x 495 mm (LxWxH)

  • Page 47: Dimensions

    Infinity iW-1240 RDM Dimensions Ordercode: 41527...
  • Page 48 ©2018 Infinity...
