Commend AFLS 10H SC W Quick Start Manual

AFLS 10H SC W
Network compatible IP cabinet loudspeaker.

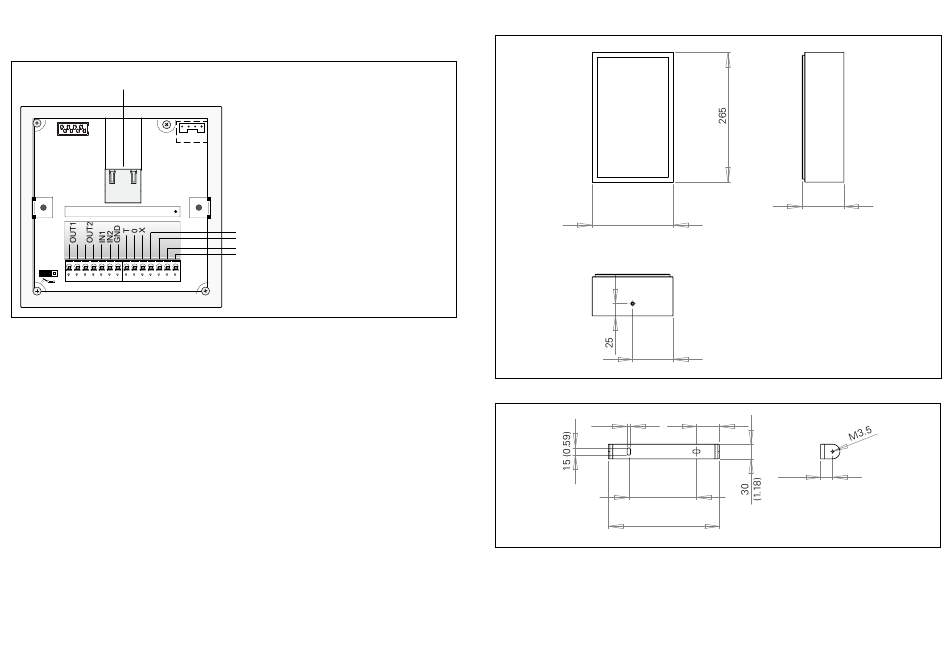

Connection diagram
RJ45 jack
(Ethernet/PoE)
JP1
JP1
NOTE
The loudspeaker is a hybrid product and can be booted as IoIP device or SIP device. Per factory
default, the boot mode of the module is "SIP" . The boot mode can be changed to "IoIP" using the
confi­ g uration­software­­ I PStationConfig­(min.­Version­4.0.5).
First connection (SIP)
The IP address is assigned using a DHCP server. If DHCP is not available in the network, the fallback IP
address "192.168.1.200" will be used. The web interface can be accessed via a web browser using the
URL "http://<IP address>" .
Login
User name: admin
Password: commend
Extent of supply
• IP cabinet loudspeaker
• Mounting bracket
• Device­identification­document
• Short reference
• OUT 1 is factory adjusted as nor-
mally open contact. Via the jumper
JP1, the output can be converted
into a normally closed contact.
• OUT 2 is factory adjusted as nor-
mally open contact.
• PoE ("Power over Ethernet"):
IEEE 802.3af standard.
Power consumption of the
terminal device: Class 0.
MIC+
MIC–
LS+
LS–
ATTENTION
The spring clamp terminal will be
damaged when inserting a screw-
driver into the cable opening.
Dimensions
Measuring units in mm (in), not to scale!
165
82,5
Locking the mounting bracket
7
(0.28)
140
(5.51)
230
(9.06)
88
48
(1.89)
25
(0.98)
