Commend AFLS 10H PW Mounting Instructions

AFLS 10H PW
Network compatible IP projector loudspeaker.

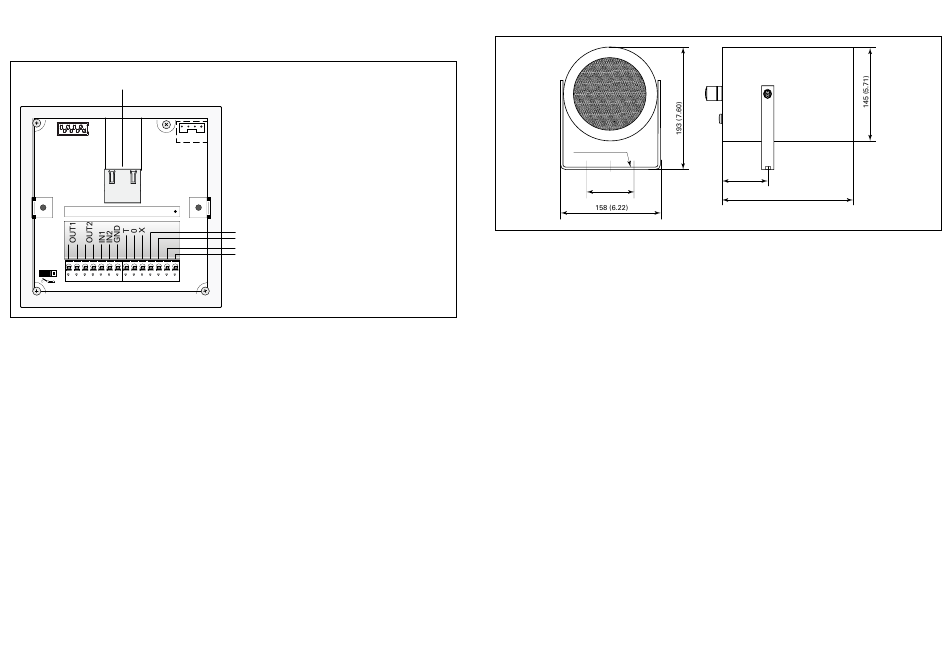

Connection diagram
RJ45 jack
(Ethernet/PoE)
JP1
JP1
NOTE
The loudspeaker is a hybrid product and can be booted as IoIP device or SIP device. Per factory
default, the boot mode of the module is "SIP" . The boot mode can be changed to "IoIP" using the
confi­ g uration­software­­ I PStationConfig­(min.­Version­4.0.5).
First connection (SIP)
The IP address is assigned using a DHCP server. If DHCP is not available in the network, the fallback IP
address "192.168.1.200" will be used. The web interface can be accessed via a web browser using the
URL "http://<IP address>" .
Login
User name: admin
Password: commend
Extent of supply
• IP projector loudspeaker
• Open source compliance information
• Device­Identification­Document
• Short reference
• OUT 1 is factory adjusted as nor-
mally open contact. Via the jumper
JP1, the output can be converted
into a normally closed contact.
• OUT 2 is factory adjusted as nor-
mally open contact.
• PoE ("Power over Ethernet"):
IEEE 802.3af standard.
Power consumption of the
terminal device: Class 0.
MIC+
MIC–
LS+
LS–
ATTENTION
The spring clamp terminal will be
damaged when inserting a screwdri-
ver into the cable opening.
Dimensions
Measuring units in mm (in), not to scale!
3 holes ø 6
(ø 0.24)
80 (3.15)
75 (2.95)
210 (8.27)
